USB to HDMI Adapter 1080p 60Hz External Video Converter USB 3.0/2.0 with Audio

External Display Converter for USB Hosts

The USB to HDMI Adapter links a computer’s USB Type-A port to a monitor, projector or television over HDMI. It outputs up to 1920 x 1080 at 60Hz and carries stereo audio on the same link. The unit adds a second screen to laptops that lack a spare video output.

A USB 3.0 host link runs at 5Gbps and falls back to USB 2.0 without a settings change. The onboard controller holds 128MB of DDR SDRAM as a frame buffer. Output follows HDMI 1.3b signalling with EDID read-back, so the source matches the display’s native timing. Supported modes include 480p, 576p, 720p and 1080p.

The converter draws power from the USB bus and needs no external supply. A 15cm pigtail keeps the HDMI socket clear of adjacent ports on crowded laptops. The ABS housing measures 55 x 45 x 15 mm and operates from 0°C to 40°C. Windows 7, 8, 8.1 and 10 drivers install from the bundled media.

Key Features

• 1080p 60Hz Output
  The converter drives 1920 x 1080 at 60Hz to monitors, projectors and televisions over a single HDMI link.

• USB 3.0 with USB 2.0 Fallback

  • 5Gbps SuperSpeed input on USB 3.0 host ports.
  • Automatic negotiation on USB 2.0 ports at reduced bandwidth.
  • No switch or jumper to change.

• Embedded Frame Buffer
  128MB of DDR SDRAM absorbs screen updates and reduces tearing during window drags.

• Audio Over HDMI
  Stereo audio passes through the HDMI link, so one cable carries picture and sound.

• Extend and Mirror Modes
  The driver offers a duplicated desktop or an extended workspace across both screens.

• Bus-Powered Operation
  The unit draws current from the host port and ships without a power brick.

• Compact 15cm Pigtail
  The short cable keeps the HDMI plug clear of neighbouring USB ports on dense chassis.

Specifications

What’s in the Box

• USB to HDMI converter unit

• Driver disc

• Quick start guide

Why Choose This Video Converter

• The bus-powered design removes a wall socket from desk and lectern installations.

• USB 3.0 input keeps the frame buffer fed, so scrolling and video playback stay smooth.

• Windows drivers install from bundled media, which suits machines without internet access.

• The pigtail length clears adjacent ports on slim laptops and mini PCs.

• Extend mode gives field engineers a second workspace without opening the chassis.

people also view

• Bixolon XT3-40 Industrial Thermal Transfer Printer 203dpi 8ips Ethernet
• Ugreen USB 3.0 Extension Cable 5m – UG-90722
• SanDisk Ultra 256GB SDXC UHS-I Card 150MB/s

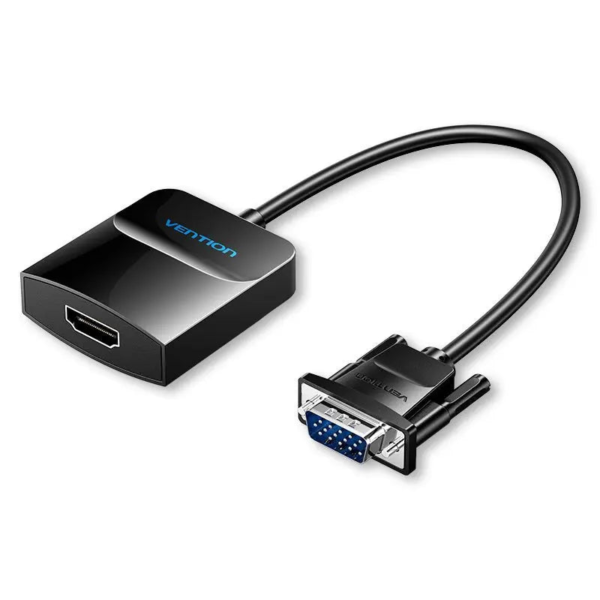

• Vention VGA to HDMI Converter, 1080p/60Hz, Micro USB Power, 0.15M
