SC to LC UPC OS2 Single Mode Patch Cord 2m Duplex 2.0mm LSZH
Limited Stock
SC to LC UPC OS2 Single Mode Patch Cord 2m Duplex 2.0mm LSZH
| Connectors | SC/UPC to LC/UPC |
| Fiber Mode | Single mode OS2, 9/125µm G.657.A2 |
| Fiber Count | Duplex |
| Length | 2m |
| Cable Diameter | 2.0mm |
| Jacket | LSZH, yellow |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥55 dB |
| Operating Temperature | -20°C to +70°C |
| Connector Standards | IEC 61754-4, IEC 61754-20 |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Mixed-Connector Single Mode Jumper

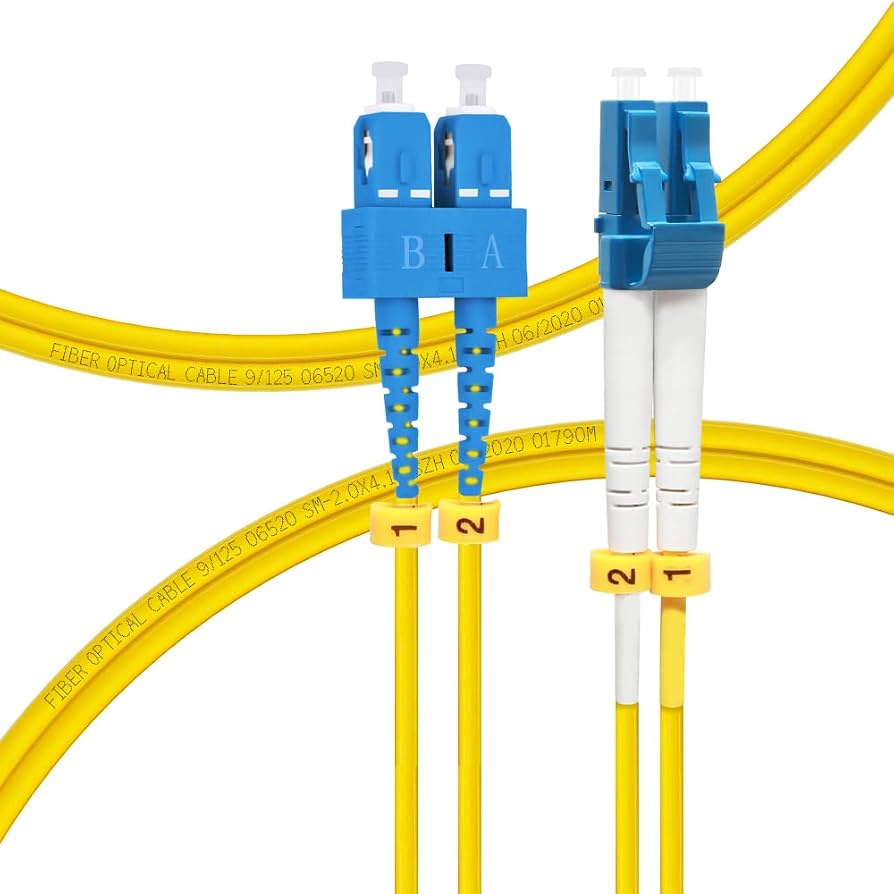

The SC LC OS2 patch lead joins an SC/UPC port to an LC/UPC port across a 2m duplex run. Two 9/125µm fibers sit inside a zipcord jacket, and yellow LSZH sheathing marks the OS2 grade. Each end carries a different connector style, so the cord bridges legacy SC panels and high-density LC equipment.
G.657.A2 bend-insensitive glass carries 1260nm to 1625nm traffic and supports 100G lanes over short spans. The 2.0mm duplex cord splits into two 900µm buffered fibers under a common jacket. Minimum bend radius holds at 10mm under load, which suits tight cabinet routing and shallow cable managers.
UPC ferrules use zirconia ceramic with a domed endface. Insertion loss stays at or below 0.3 dB per mated pair, and return loss reaches 55 dB or better. LC latches and SC push-pull housings release without tools, which speeds moves and changes on loaded panels.
LSZH compound meets IEC 60332-1-2 flame propagation limits and restricts halogen release in occupied rooms. Operating range spans -20 to 70°C, and storage spans -40 to 85°C. Each assembly is tested for attenuation to IEC 61300-3-4 and for reflectance to IEC 61300-3-6 before packing.
Key Features
Asymmetric Connector Pair
One SC/UPC plug and one LC/UPC plug terminate the same duplex cord for cross-format patching.Duplex OS2 Construction
Two 9/125µm G.657.A2 fibers run the full 2m length inside a 2.0mm zipcord jacket.Optical Test Data
- Insertion loss maximum 0.3 dB per mated pair
- Return loss minimum 55 dB at 1310nm and 1550nm
- Verified to IEC 61300-3-4 and IEC 61300-3-6 methods
Ceramic Ferrules
Zirconia ceramic ferrules and precision alignment sleeves hold the fiber core on axis.Tool-Free Latching
The LC latch and SC push-pull shell release by hand, which protects ferrules on dense panels.LSZH Yellow Jacket
Low smoke zero halogen compound meets IEC 60332-1-2 and identifies single mode stock.
Specifications
| Feature | Specification |
|---|---|
| Connector A | SC/UPC |
| Connector B | LC/UPC |
| Polish Type | UPC (ultra physical contact) |
| Fiber Mode | Single mode OS2 |
| Fiber Geometry | 9/125µm, G.657.A2 |
| Fiber Count | Duplex (2 fibers) |
| Assembly Length | 2m |
| Cable Diameter | 2.0mm |
| Buffer Diameter | 900µm |
| Jacket Material | LSZH |
| Jacket Colour | Yellow |
| Wavelength Range | 1260nm to 1625nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥55 dB |
| Minimum Bend Radius | 10mm under load |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Flammability | IEC 60332-1-2 |
| Connector Standards | IEC 61754-4 (SC), IEC 61754-20 (LC) |
| Compliance | RoHS |
What’s in the Box
2m SC/UPC to LC/UPC OS2 duplex patch lead
Dust caps fitted to both connector pairs
Why Choose This Duplex Lead
Mixed terminations remove the need for a second adapter module when matching SC and LC hardware.
Bend-tolerant glass survives tight cabinet radii without adding measurable attenuation.
Tested attenuation figures let engineers budget link loss before commissioning.
LSZH compound suits risers, comms rooms and customer premises installations.
Duplex zipcord keeps both transmit and receive paths on one managed run.
