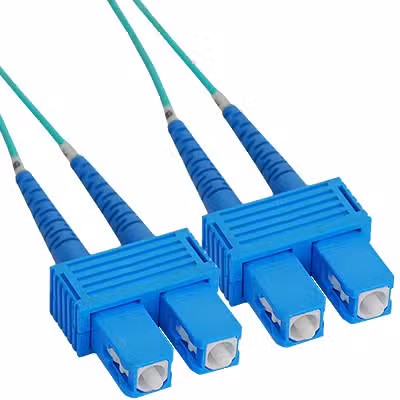

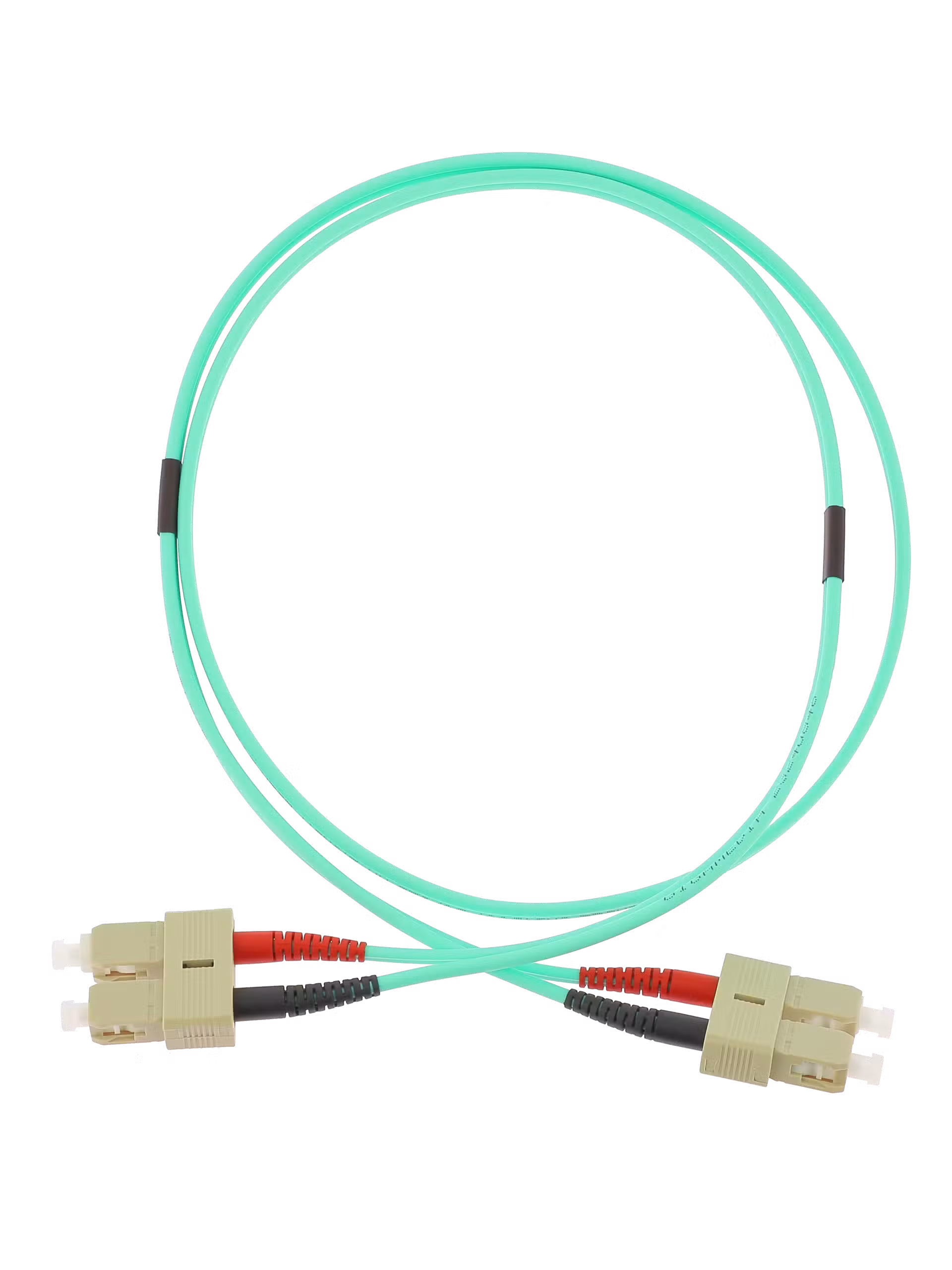

SC APC OM3 10m Patch Cord – Duplex SC to SC Multimode 50/125µm Aqua LSZH
Limited Stock
SC APC OM3 10m Patch Cord – Duplex SC to SC Multimode 50/125µm Aqua LSZH
| Connectors | SC/APC to SC/APC |
| Fiber mode | OM3 multimode, 50/125 µm |
| Fiber count | Duplex |
| Length | 10m |
| Jacket | LSZH, aqua |
| Insertion loss | ≤0.3 dB |
| Return loss | ≥60 dB |
| Operating temperature | -20°C to 70°C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Fiber Assembly
The SC APC OM3 10m patch cord links two SC/APC ports across a ten-metre duplex multimode run. Two 50/125µm fibers sit inside an aqua zipcord jacket. APC ferrules seat at an 8° angle to suppress back reflection at the connector interface.
OM3 glass carries 10G Ethernet to 300m and 40G or 100G to 100m with SR optics. The 2.0mm duplex cord splits into two 900µm buffered fibers. Minimum bend radius holds at 10mm under load. SC push-pull housings release by hand, which protects ferrules on loaded panels.
Zirconia ceramic ferrules with APC polish hold insertion loss at ≤0.3 dB per mated pair. Return loss reaches ≥60 dB for multimode APC. The LSZH jacket meets IEC 60332-1-2 and limits halogen release in enclosed cabinets. Operating range spans -20°C to 70°C, and storage spans -40°C to 85°C.
Key Features
Angled Physical Contact Ferrules
The 8° APC endface reduces back reflection compared with flat PC polish.Duplex OM3 Construction
- Two 50/125µm laser-optimized fibers
- Aqua jacket identifies OM3 grade
- 2.0mm zipcord splits into 900µm buffered legs
Low Insertion Loss
Each mated pair holds attenuation at ≤0.3 dB per IEC 61300-3-4.High Return Loss
APC polish delivers ≥60 dB reflectance to protect sensitive receivers.LSZH Aqua Jacket
The low-smoke zero-halogen compound meets IEC 60332-1-2 flame limits.Tool-Free Latching
SC push-pull shells release by hand without disturbing adjacent ports.Ten-Metre Reach
The ten-metre span crosses adjacent racks and short inter-cabinet runs.
Specifications
| Feature | Specification |
|---|---|
| Connector A | SC/APC |
| Connector B | SC/APC |
| Polish | APC, 8° angled endface |
| Fiber mode | OM3 multimode |
| Core and cladding | 50/125µm |
| Fiber count | Duplex |
| Length | 10m |
| Cable diameter | 2.0mm |
| Buffer diameter | 900µm |
| Jacket material | LSZH |
| Jacket colour | Aqua |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥60 dB |
| Wavelength | 850nm and 1300nm |
| Minimum bend radius | 10mm under load |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Flammability | IEC 60332-1-2 |
| Connector standard | IEC 61754-4 |
| Compliance | RoHS |
What’s in the Box
10m SC/APC to SC/APC OM3 duplex patch cord
Dust caps fitted to both connector pairs
Why Choose This Fiber Lead
APC ferrules cut back reflection on short multimode spans.
The ten-metre length reaches across adjacent racks without excess slack.
Aqua jacket matches OM3 coding conventions on the panel.
Ceramic ferrules hold loss stable through repeated mating cycles.
OM3 glass supports 10G, 40G and 100G optics over the rated distances.
LSZH compound meets indoor riser and cabinet safety requirements.
