OEM SC Multimode 50/125 Pigtail 1m
WhatsApp for availability
OEM SC Multimode 50/125 Pigtail 1m
| Feature | Detail |
|---|---|
| Connector | SC Multimode |
| Fiber Core | 50/125µm | 0.9mm Tight Buffer |
| Length | 1 Meter |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

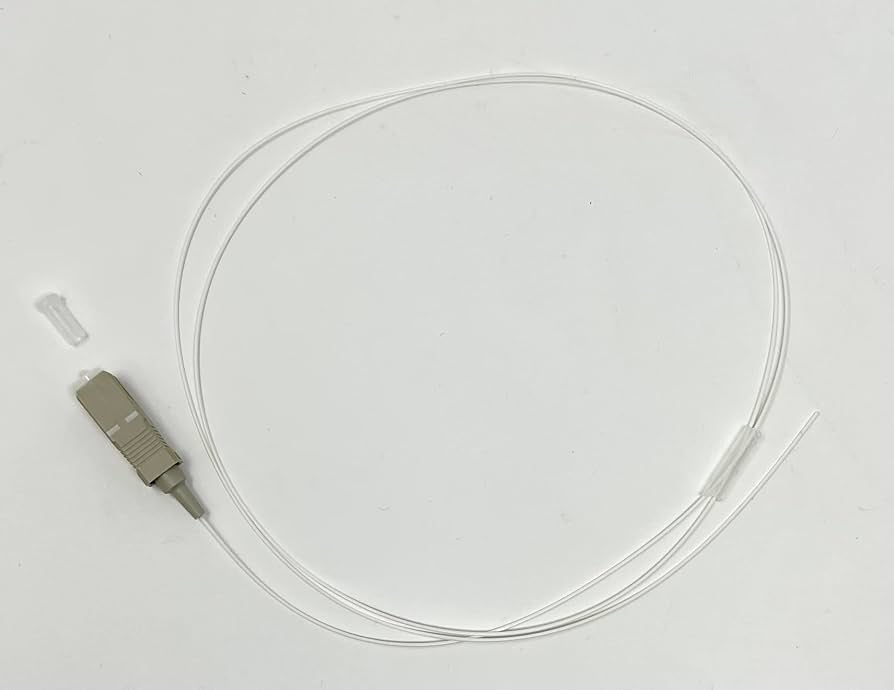

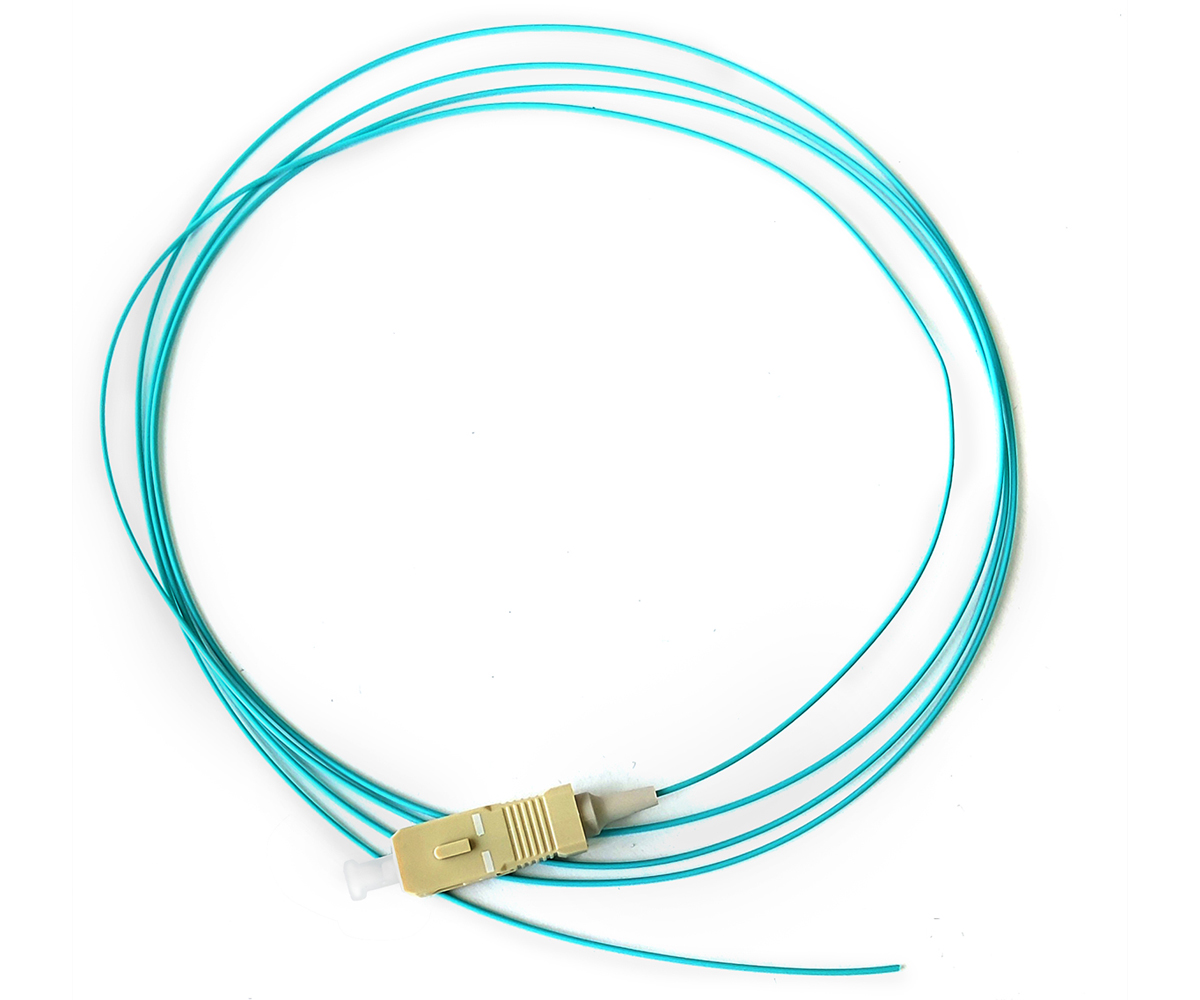

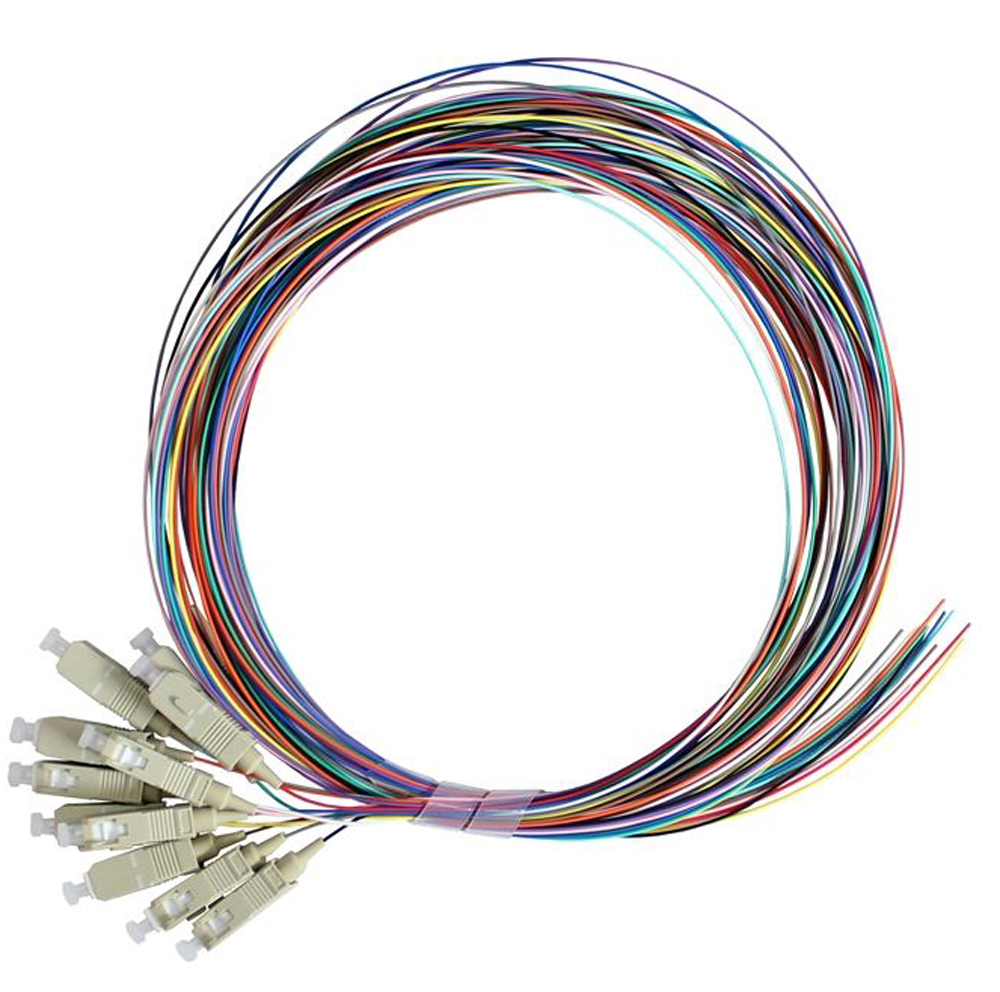

OEM SC MM Pigtail
The OEM SC Multimode Pigtail provides a professional termination solution for high-density fiber optic networks. This 1-meter assembly features a factory-polished SC connector on one end. The other end consists of exposed 50/125µm multimode fiber for fusion splicing. Network engineers utilize these components to bridge backbone cabling with active hardware. The 0.9mm tight buffer construction allows for compact routing within splice trays. Each unit undergoes rigorous testing to meet international performance standards. The factory polishing process eliminates the variability found in manual field terminations. Automated machinery creates a consistent PC end-face geometry. This geometry minimizes air gaps between connectors to optimize signal flow.
Key Features
SC Connector Interface
The push-pull mechanism ensures secure latching and high repeatability in patch panels.Optical Performance
- Insertion loss rated at less than 0.3dB
- Return loss exceeding 30dB for signal stability
- Zirconia ceramic ferrule for precision alignment
Fiber Construction
The 50/125 micron core supports high bandwidth for short-reach data center applications.Installation Efficiency
- 0.9mm easy-strip buffer for rapid preparation
- Standard color-coded jacket for fiber identification
- 1-meter length allows for sufficient slack management
Specifications
| Feature | Specification |
|---|---|
| Connector Type | SC (Subscriber Connector) |
| Fiber Category | Multimode 50/125µm |
| Buffer Diameter | 0.9mm Tight Buffer |
| Length | 1 Meter |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 30dB |
| Ferrule Material | Zirconia Ceramic |
| Operating Temperature | -40°C to +75°C |
What’s in the Box
1 x SC Multimode 50/125 0.9mm Pigtail (1m)
Individual Test Report
Why Choose OEM SC MM Pigtail
The 50/125µm glass fiber provides a larger core than single-mode alternatives for easier alignment.
Zirconia ferrules maintain mechanical stability during significant temperature fluctuations in server rooms.
The tight buffer material consists of flame-retardant compounds for indoor infrastructure safety.
This component integrates seamlessly into standard rack-mount enclosures and optical distribution frames.
Engineers prefer the 0.9mm profile for its flexibility in tight bend radii inside splice cassettes.
However, signal integrity remains dependent on the quality of the fusion splice performed by the technician.
The assembly complies with TIA/EIA-568-C.3 standards for commercial building telecommunications cabling.
J. Njoroge (verified owner) –
Quality OEM pigtails. Splicing was smooth and the 0.9mm outer jacket is easy to strip without damaging the fiber.
Kelvin Omondi (verified owner) –
We needed these for a quick fiber termination project in Westlands. The 50/125 pigtails are standard but the build quality here is solid. The 1m length gives enough slack for splicing inside the tray without being too messy. No issues with the signal loss after testing with our OTDR. Good value for money compared to what you find in some shops downtown.
Faith Mutua (verified owner) –
The SC connectors fit snugly into our patch panels. Used them to finish up a client’s server room setup in the CBD. Delivery was fast. Only giving 4 stars because I wish they came in multi-color packs for easier identification, but the pigtails themselves are perfect for multimode links.
Brian Kipkorir (verified owner) –
Exactly what I needed for our local OM2 links. These 50/125um pigtails are much better than the generic ones we’ve tried before that keep breaking at the ferrule. The buffer is tough enough for the technician’s hands during a busy install. Good stock, will order more for the next phase.
