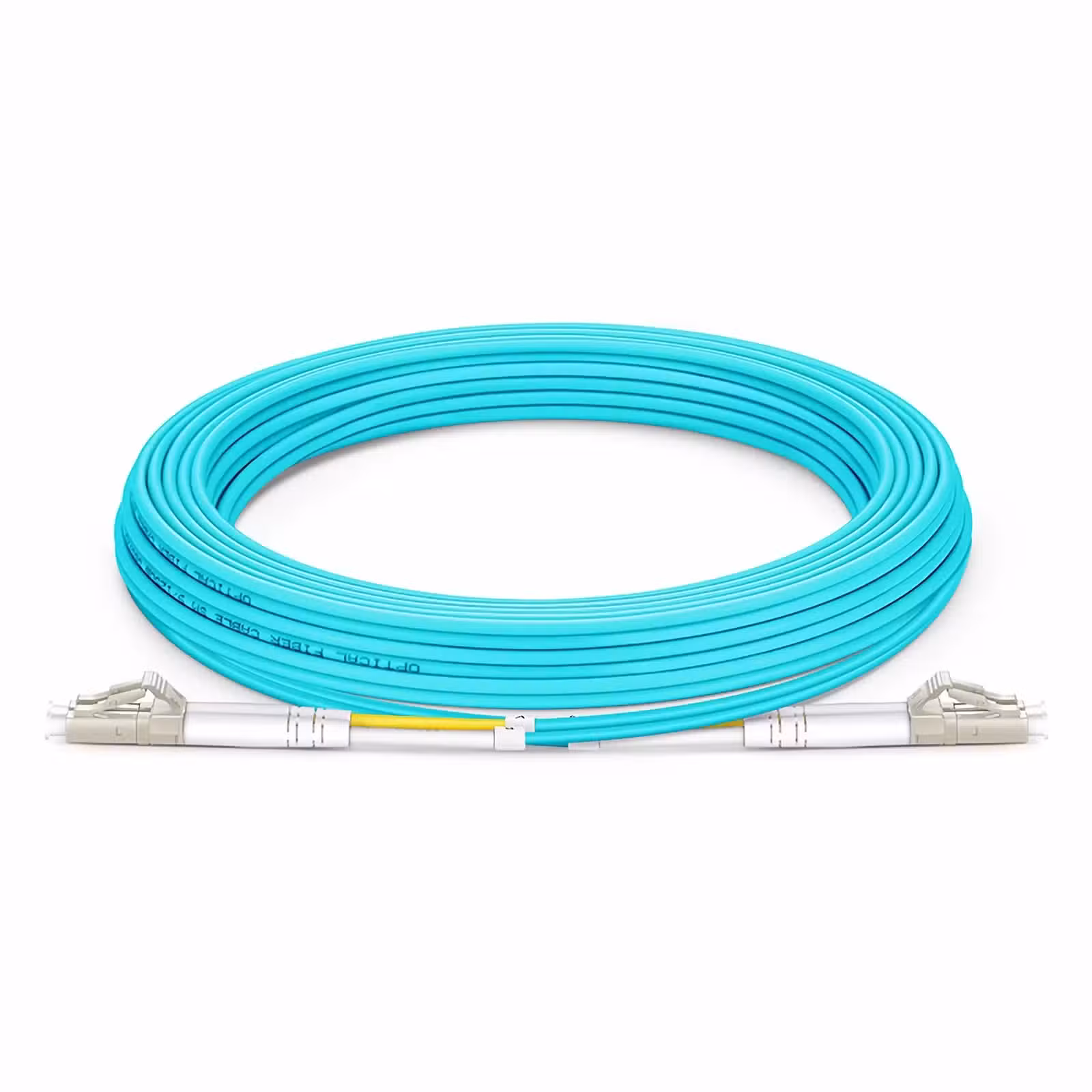

LC-LC UPC 5m OM3 Duplex Fiber Patch Cord 50/125 Aqua LSZH
Limited Stock
LC-LC UPC 5m OM3 Duplex Fiber Patch Cord 50/125 Aqua LSZH
| Connectors | LC/UPC to LC/UPC, duplex |
| Fiber category | OM3 multimode, 50/125 µm |
| Length | 5 m |
| Insertion loss | ≤ 0.3 dB per mated pair |
| Return loss | ≥ 30 dB |
| Modal bandwidth | ≥ 2000 MHz·km at 850 nm |
| Jacket | LSZH, aqua, 2.0 mm |
| Minimum bend radius | 7.5 mm |
| Operating temperature | -20°C to 70°C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Aqua Multimode Duplex Jumper for 10G Rack Links
The LC-LC UPC 5m OM3 assembly is a duplex multimode patch cord for 10G, 40G and 100G links inside racks and between adjacent cabinets. Two LC/UPC connectors sit at each end on 50/125 µm OM3 fiber. Aqua LSZH jacketing identifies the multimode grade and limits smoke output in occupied rooms.
Ceramic ferrules hold insertion loss at 0.3 dB maximum per mated pair, with 0.2 dB typical on factory-tested units. Return loss measures 30 dB or better, which keeps back reflection inside multimode link budgets. OM3 effective modal bandwidth reaches 2000 MHz·km at 850 nm, so 10GBASE-SR runs to 300 m and 40GBASE-SR4 or 100GBASE-SR10 reach 100 m.
The 2.0 mm zipcord jacket bends to a 7.5 mm minimum radius, which clears dense trays and shallow cable managers. Each connector survives 500 mating cycles or more. Operating temperature spans -20°C to 70°C, and storage tolerance reaches -40°C to 85°C. Installation tension is rated at 120 N short term and 50 N long term.
Key Features
OM3 50/125 µm Fiber
Laser-optimised core delivers 2000 MHz·km effective modal bandwidth at 850 nm for 10G and 40G channels.LC/UPC Duplex Termination

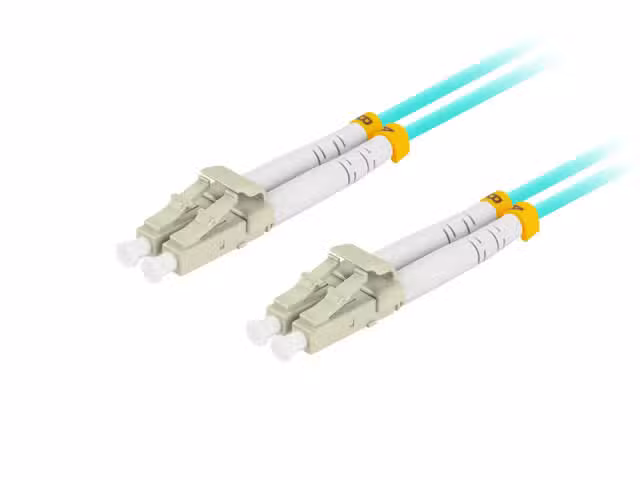

- 1.25 mm zirconia ceramic ferrules on both ends
- UPC polish limits back reflection below -30 dB
- Duplex clip holds A/B polarity through the run
Low Insertion Loss
Each mated pair measures 0.3 dB maximum under IEC 61300-3-4 test methods.Aqua LSZH Jacket
The halogen-free compound meets IEC 60332-1, IEC 60754 and IEC 61034 for low smoke and low toxicity.Tight Bend Radius
A 7.5 mm minimum bend radius allows routing behind loaded 1U patch fields and cable managers.Aramid Strength Members
The sheath carries 120 N short-term tensile load so pulls through conduit do not stress the fiber core.Individual Optical Testing
Every cord is measured for insertion loss and return loss before packing, and the figures accompany the reel label.
Specifications
| Feature | Specification |
|---|---|
| Connector A | LC/UPC duplex, beige boot |
| Connector B | LC/UPC duplex, beige boot |
| Polish type | UPC to UPC |
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Fiber count | 2 (duplex zipcord) |
| Length | 5 m |
| Insertion loss | ≤ 0.3 dB per mated pair (0.2 dB typical) |
| Return loss | ≥ 30 dB |
| Wavelengths | 850 nm and 1300 nm |
| Modal bandwidth at 850 nm | ≥ 2000 MHz·km |
| Attenuation at 850 nm | ≤ 2.3 dB/km |
| Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket material | LSZH |
| Jacket colour | Aqua |
| Cable diameter | 2.0 mm duplex |
| Minimum bend radius | 7.5 mm |
| Tensile load, short term | 120 N |
| Tensile load, long term | 50 N |
| Mating durability | 500 cycles minimum |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Flammability | IEC 60332-1, IEC 60754, IEC 61034 |
| Connector standard | IEC 61754-20, TIA-604-10-A |
| Test standard | IEC 61300-3-4, IEC 61300-3-6 |
| Compliance | RoHS |
What’s in the Box
5 m LC/UPC to LC/UPC OM3 duplex fiber assembly
Dust caps on both connector ends
Optical test label
Why Choose This Multimode Lead
Supports 10GBASE-SR to 300 m and 40G or 100G SR channels to 100 m on OM3 plant.
Ceramic ferrules hold alignment through repeated patching and network audits.
Aqua sheath colour separates multimode runs from single mode and copper cabling.
Low smoke jacket material suits risers, comms rooms and occupied floor distributors.
The 7.5 mm bend radius allows routing behind loaded 1U patch fields.
Tested loss figures fit link budget planning against IEC 61300 limits.
