OM3 Multimode SC to SC APC Patch Cord Duplex 50/125µm LSZH
Limited Stock
OM3 Multimode SC to SC APC Patch Cord Duplex 50/125µm LSZH
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Connector type | SC to SC, duplex |
| End-face polish | APC, 8° angled |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥30 dB |
| Wavelength | 850 nm / 1300 nm |
| 10G reach | Up to 300 m at 850 nm |
| Cable diameter | 3.0 mm duplex |
| Jacket material | LSZH |
| Operating temperature | -20°C to 70°C |
| Standards | ANSI/TIA-568.3-E |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Jumper for 10G Short-Reach Links
The OM3 SC APC cord is a duplex multimode assembly with angled-physical-contact SC connectors at both ends. It uses laser-optimized 50/125 µm glass and a 3.0 mm LSZH jacket. Factory termination supports 10 Gbps Ethernet runs up to 300 m at 850 nm.
Each connector uses a zirconia ferrule ground to an 8° APC end face. Angled contact reduces back reflection to 30 dB or better on a mated pair. Insertion loss stays at or below 0.3 dB per connection. The duplex clip holds the two SC bodies at fixed centre spacing for single-action mating.
The cable operates across 850 nm and 1300 nm windows. A tight-buffered aramid yarn layer carries tensile load, and the LSZH sheath limits smoke and halogen output in enclosed rooms. Installers route the 3.0 mm cord through cabinets and patch panels with a 20 mm static bend radius.
Key Features
OM3 Laser-Optimized Fiber
The 50/125 µm graded-index core supports 10 Gbps to 300 m and 40/100 Gbps to 100 m at 850 nm.Angled Physical Contact Ferrules
The 8° APC polish holds return loss at 30 dB or higher and limits reflection into the transmitter.Duplex SC Connector Pair
- Precision zirconia ferrules with 2.5 mm diameter
- Duplex clip fixes transmit and receive spacing
- Push-pull latch releases without a tool
Low Insertion Loss
Termination testing caps loss at 0.3 dB per mated pair, which preserves optical budget on cascaded links.LSZH Jacket Construction

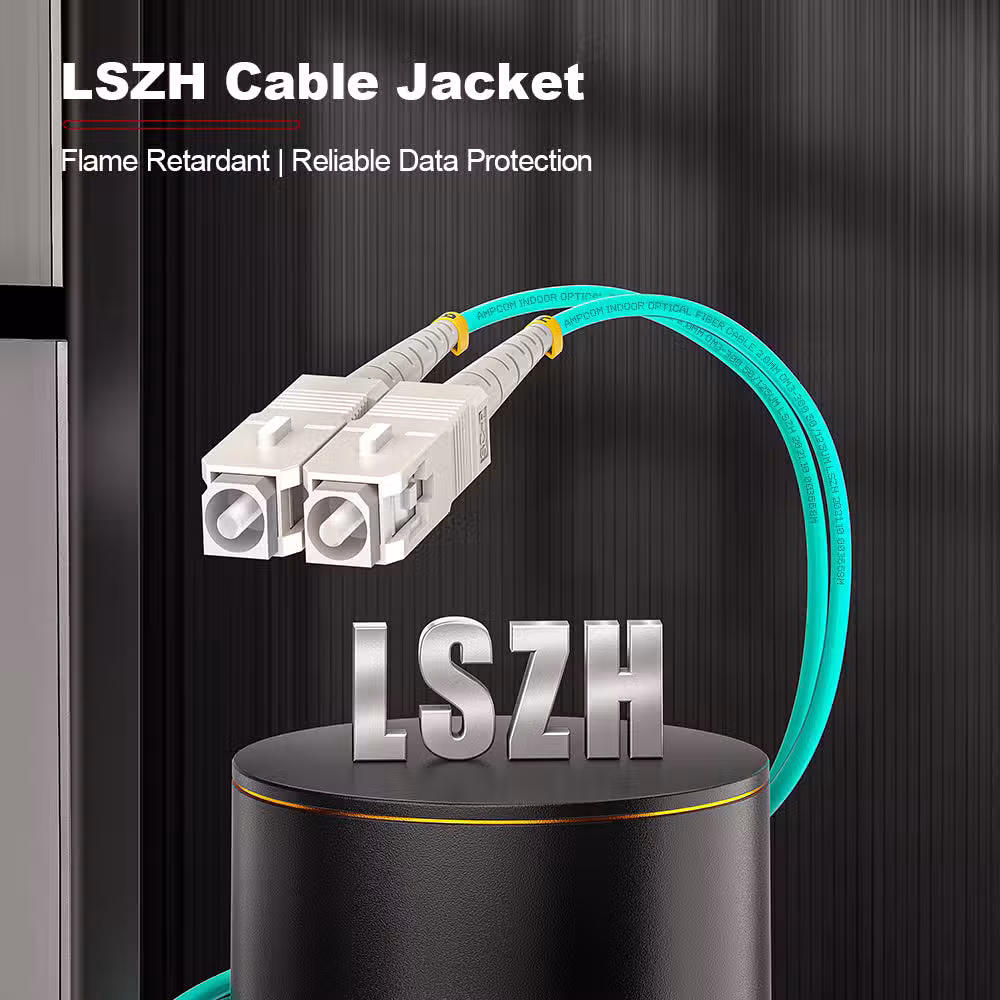

The low-smoke zero-halogen sheath suits risers and enclosed equipment rooms.Mechanical Durability
Connectors survive more than 500 mating cycles and hold a 50 N pull force per IEC 61300-2-4.
Specifications
| Feature | Specification |
|---|---|
| Fiber category | OM3 multimode |
| Core / cladding | 50/125 µm |
| Connector type | SC to SC, duplex |
| End-face polish | APC, 8° angled |
| Ferrule material | Zirconia ceramic |
| Insertion loss | ≤0.3 dB per mated pair |
| Return loss | ≥30 dB |
| Operating wavelength | 850 nm / 1300 nm |
| 10G reach at 850 nm | Up to 300 m |
| 40/100G reach at 850 nm | Up to 100 m |
| Cable diameter | 3.0 mm duplex |
| Jacket material | LSZH |
| Strength member | Aramid yarn |
| Static bend radius | 20 mm |
| Mating durability | >500 cycles |
| Tensile strength | ≥50 N per IEC 61300-2-4 |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Standards | ANSI/TIA-568.3-E, IEC 61755-3-2 |
| Compliance | RoHS, REACH |
| Jacket colour | Aqua |
What’s in the Box
Duplex OM3 SC/APC patch cord
Duplex connector clips fitted at each end
Individual test label with insertion loss data
Why Choose the OM3 Duplex Lead
Angled ferrules cut back reflection on links that feed sensitive 10G receivers.
Tested loss figures on each label let engineers calculate channel budget before installation.
Duplex clips keep polarity correct when technicians repatch dense fibre trays.
LSZH sheath meets fire-safety requirements in risers and shared equipment rooms.
The 3.0 mm cord resists kinking on tight cabinet routes without losing optical performance.
