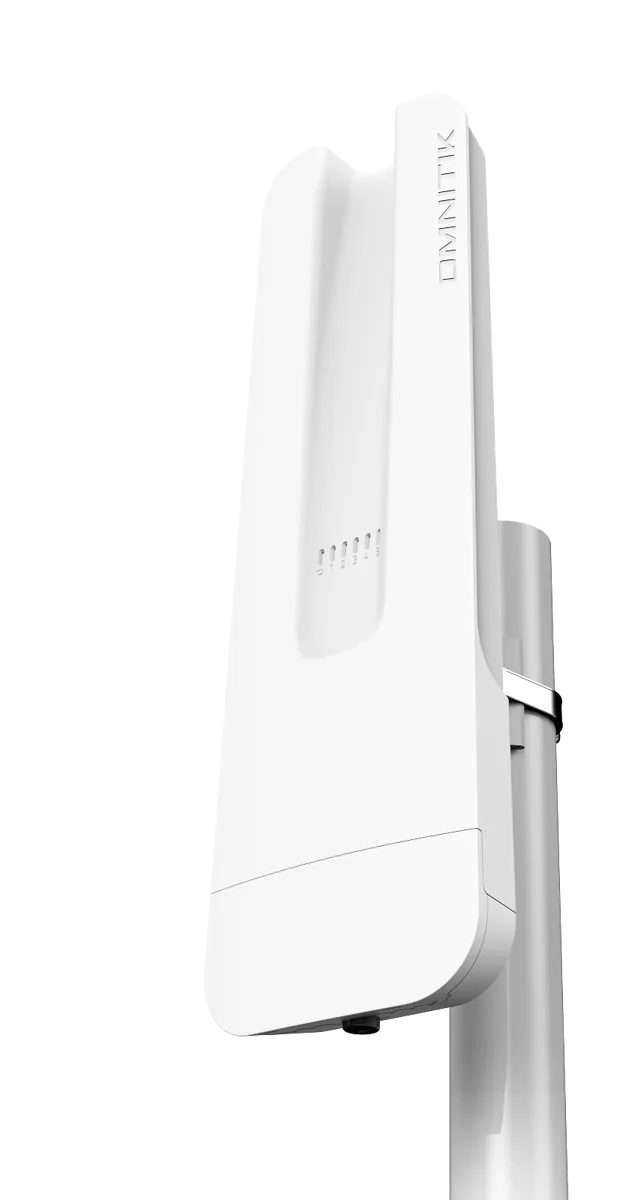

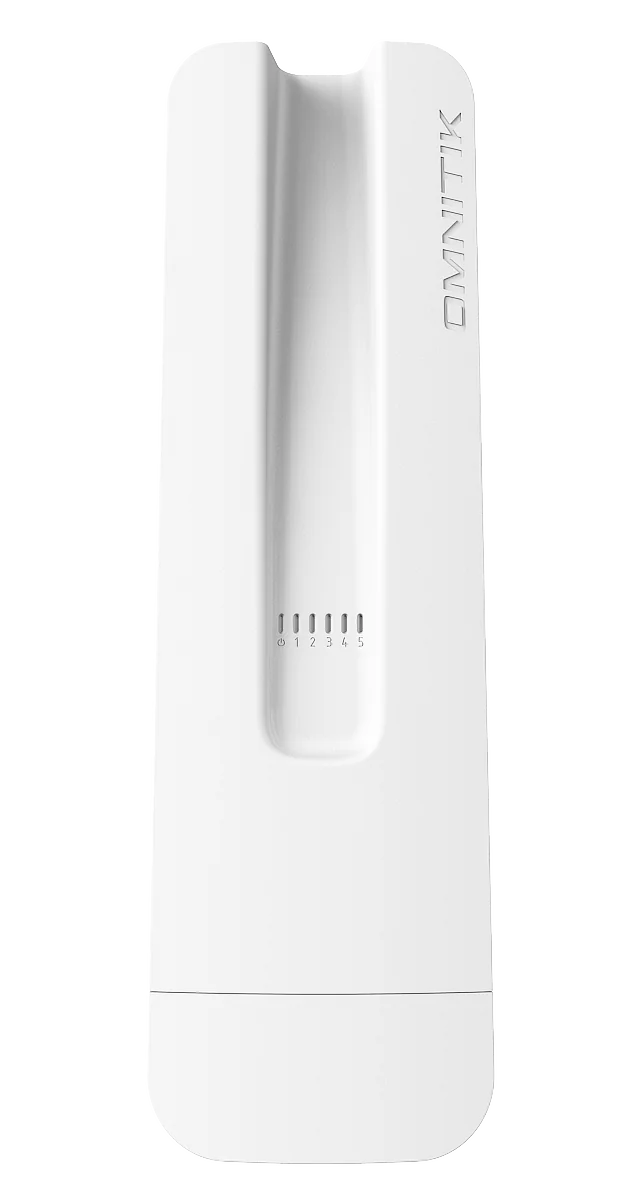

Mikrotik OmniTIK 5 ac RBOmniTikG-5HacD Outdoor Access Point – 5x Gigabit, 802.11ac
Original price was: KSh 22,700.00.KSh 19,200.00Current price is: KSh 19,200.00. ex VAT
Mikrotik OmniTIK 5 ac RBOmniTikG-5HacD Outdoor Access Point – 5x Gigabit, 802.11ac
| Product code | RBOmniTikG-5HacD |
| CPU | QCA9557, 720 MHz |
| RAM | 128 MB |
| Wireless | 5 GHz 802.11a/n/ac, 2×2, 867 Mbit/s |
| Antenna gain | 7.5 dBi integrated omni |
| Ethernet | 5x 10/100/1000 |
| PoE in | Passive PoE, 12-57 V |
| Max power | 14 W |
| Enclosure | IP54, 416 x 129 x 58 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
5 GHz Outdoor Omni Access Point
The Mikrotik OmniTIK 5 ac is a dual-chain 5 GHz outdoor access point with five Gigabit Ethernet ports and 802.11ac support. Two integrated 7.5 dBi omni antennas cover 360 degrees from a single IP54 housing. The unit ships with RouterOS Level 4 preinstalled.
The QCA9557 processor runs at 720 MHz alongside 128 MB of RAM and 16 MB of NAND flash. A QCA9892 radio drives two spatial streams to 867 Mbit/s PHY rate. Five 10/100/1000 ports connect through a QCA8337 switch chip, and one USB Type-A port delivers up to 1A.
Port one accepts passive PoE across a 12 to 57 V range, and maximum consumption sits at 14 W. The pole mount kit ships in the box. Tested ambient temperature spans -40°C to 70°C, and the chassis holds CE, FCC, IC, EAC and RoHS approvals.
Key Features
- Dual-Chain 802.11ac Radio
The 5 GHz chain pair reaches 867 Mbit/s and stays backward compatible with 802.11a/n client CPEs. - Integrated 7.5 dBi Omni Antennas
Two built-in radiators provide full 360-degree horizontal coverage without external coax runs. - Five Gigabit Ethernet Ports
The QCA8337 switch chip links five 10/100/1000 interfaces for backhaul, CPE drops and local devices. - Flexible Power Input
- Passive PoE on port one, 12 to 57 V DC
- 14 W maximum power draw under full load
- Single DC input with passive cooling, no fan
- Weatherproof IP54 Chassis
The sealed outdoor enclosure measures 416 x 129 x 58 mm and mounts directly to a pole. - RouterOS Level 4
Routing, bridging, firewall, queues and wireless management run on the licensed RouterOS build. - USB Type-A Peripheral Port
The 1A USB slot supports power reset and attaches storage or cellular modems.
Specifications
| Feature | Specification |
|---|---|
| Product code | RBOmniTikG-5HacD |
| Architecture | MIPSBE |
| CPU | QCA9557, 1 core, 720 MHz |
| Switch chip | QCA8337 |
| RAM | 128 MB |
| Storage | 16 MB NAND flash |
| Operating system | RouterOS, license level 4 |
| Wireless standard | 802.11a/n/ac, Wi-Fi 5 |
| Wireless chip | QCA9892 |
| Max data rate | 867 Mbit/s, 5 GHz |
| Spatial chains | 2 |
| Antenna gain | 7.5 dBi, 5 GHz omni, integrated |
| Ethernet ports | 5x 10/100/1000 |
| USB | 1x USB Type-A, 1A max, power reset |
| PoE in | Passive PoE on port 1 |
| PoE input voltage | 12-57 V |
| DC inputs | 1 (PoE-IN) |
| Max power consumption | 14 W |
| Cooling | Passive |
| Dimensions | 416 x 129 x 58 mm |
| Operating temperature | -40°C to 70°C |
| Ingress protection | IP54 |
| MTBF | Approx. 200,000 hours at 25°C |
| Certifications | CE, FCC, IC, EAC, RoHS |
What’s in the Box
- OmniTIK 5 ac outdoor access point
- Power supply
- PoE injector
- Pole mounting kit
Why Choose Mikrotik
- The 360-degree omni pattern replaces multiple sector radios on a single pole position.
- Five copper Gigabit interfaces remove the need for an external switch at the mast base.
- Passive PoE across 12 to 57 V tolerates long cable runs and varied injector supplies.
- RouterOS Level 4 covers routing, VLANs, firewall and CAPsMAN wireless control.
- IP54 sealing and a -40°C to 70°C ambient rating suit coastal and inland tower sites.
