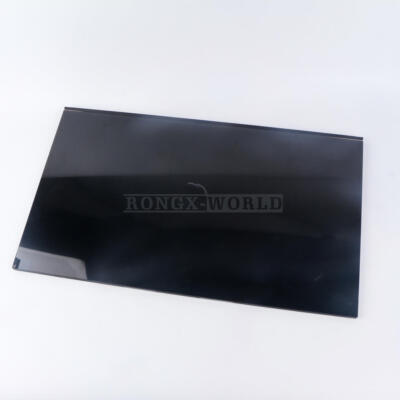

LG LM238WF2-SSK1 23.8-inch FHD AIO LCD Panel – 1920×1080, 30-Pin LVDS, Matte

23.8-Inch Replacement Panel for All-in-One Systems

The LG LM238WF2-SSK1 is a 23.8-inch LCD panel intended as a replacement display for all-in-one desktop computers and monitor assemblies. It uses an IPS active-matrix structure and delivers 1920 × 1080 Full HD resolution. A 30-pin LVDS connector exits at the top right and carries video signalling to the host board.

The panel reaches 250 cd/m² typical brightness with a 1000:1 contrast ratio. Viewing angles measure 89 degrees on all four axes, and the matte surface diffuses overhead lighting. Colour depth covers 16.7 million shades through an 8-bit driver, with coverage rated at 69 percent of the CIE1931 gamut. The non-touch design omits a digitizer layer, which keeps the module thin and reduces cost.

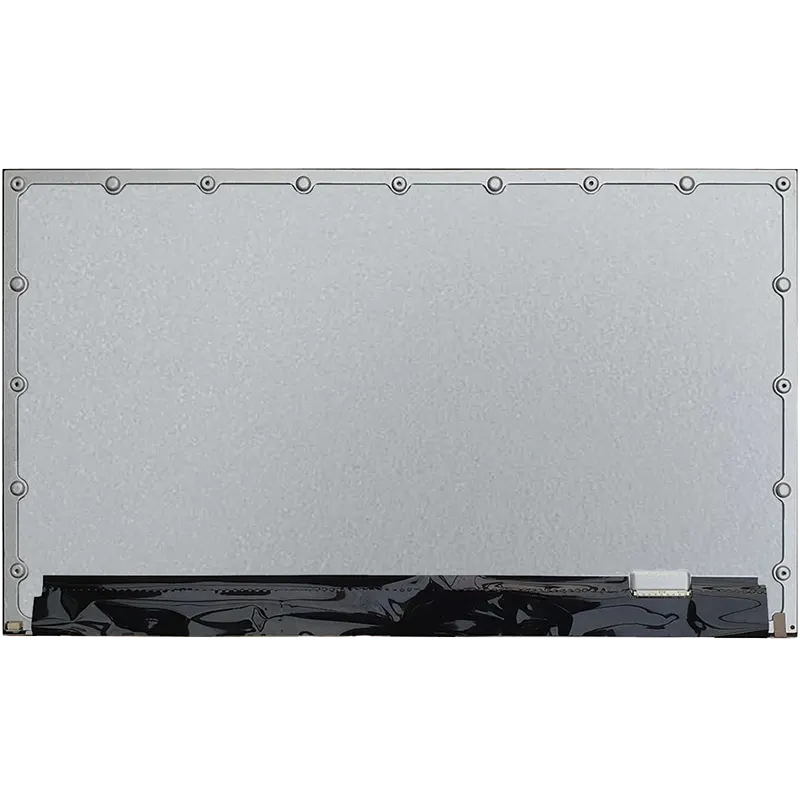

The assembly measures approximately 543 mm wide by 317 mm high, with an active area of 527.04 × 296.46 mm. It operates from a 5 V logic supply and draws roughly 1.5 W in typical use. The panel is not a complete monitor: it has no bezel, stand, power supply or control board. Technicians fit it into an existing chassis that accepts the LM238WF2 family. Backlighting uses white LED strips along the edge.

Key Features

• 1920 × 1080 Full HD Resolution
  The 23.8-inch diagonal yields 92 pixels per inch, which suits standard desktop viewing distances.

• IPS Panel Structure

  • In-plane switching maintains colour stability across the 89-degree viewing cone.
  • Matte anti-glare treatment limits reflections in bright rooms.
  • 8-bit driver supports 16.7 million colours.

• 30-Pin LVDS Interface
  The top-right connector mates with the original harness on LM238WF2-compatible all-in-one boards.

• 250-Nit LED Backlight
  Edge-lit white LEDs deliver 250 cd/m² typical luminance for office and home environments.

• Non-Touch Construction
  The panel excludes a touch layer, which reduces thickness and eliminates digitizer calibration steps.

• Panel-Only Replacement
  The module ships without bezel, stand, control board or power supply and requires reuse of existing chassis hardware.

Specifications

What’s in the Box

• 23.8-inch LCD panel module

• Protective foam packaging

• Documentation

Why Choose This Replacement Panel

• The IPS structure preserves colour and contrast when viewed off-axis from a shared desk.

• A 30-pin LVDS interface matches existing LM238WF2 harnesses without an adapter.

• The matte finish reduces glare from ceiling lights and windows in open offices.

• Panel-only supply keeps repair costs low when the chassis, stand and controller remain functional.

• Full HD resolution at 92 PPI matches the original all-in-one display density.

• The non-touch design removes digitizer calibration from the replacement workflow.
