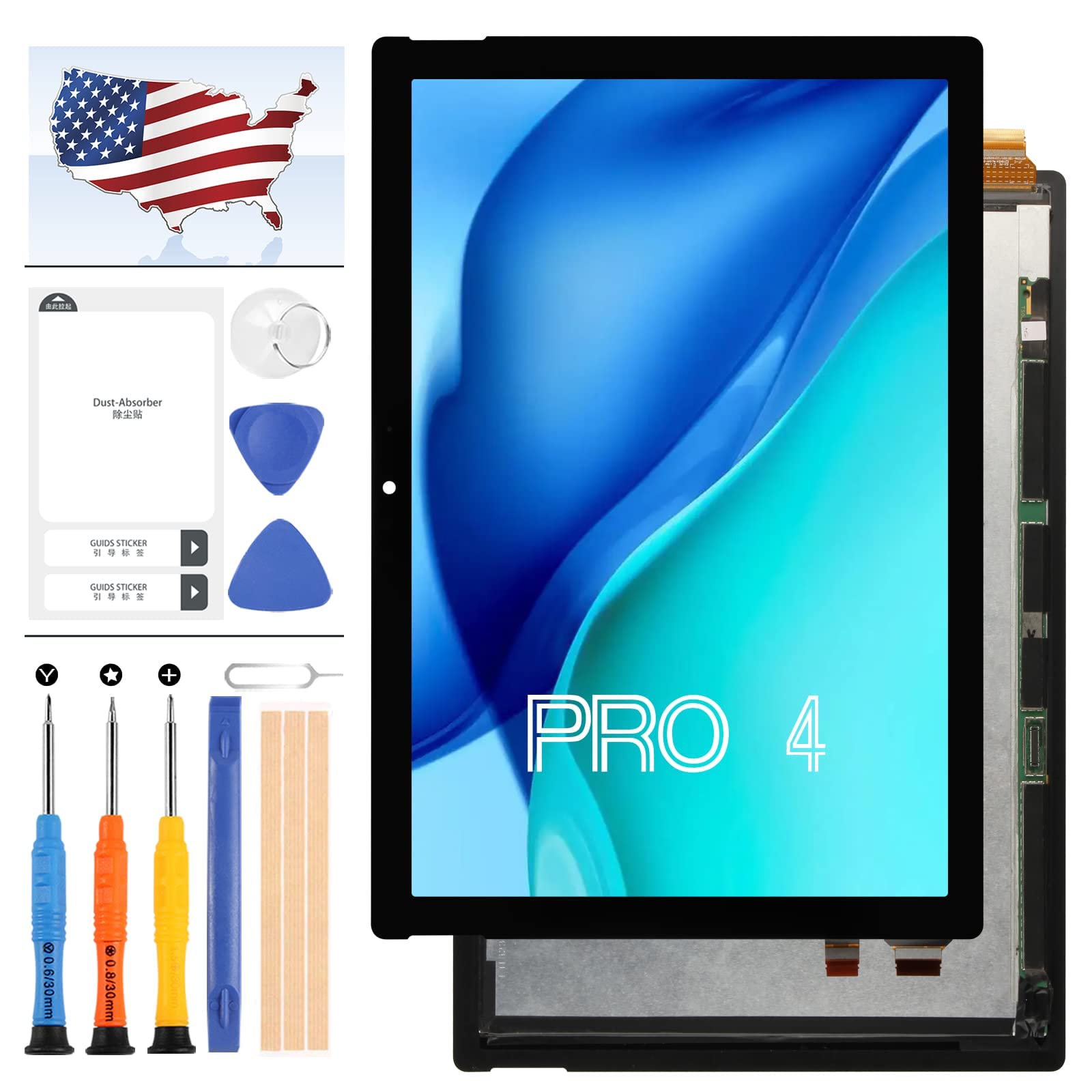

Microsoft Surface Pro 4 LCD Display Touch Screen Assembly 12.3-inch 2736×1824

12.3-Inch PixelSense Panel Replacement

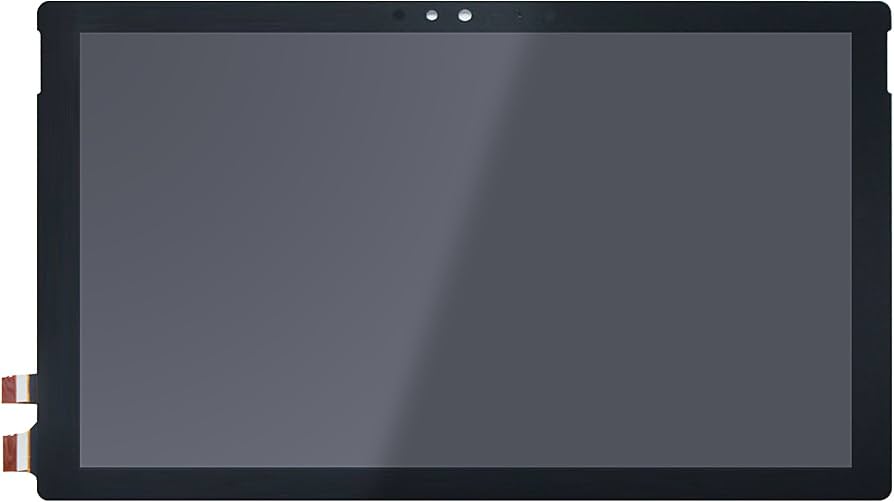

The Microsoft Surface Pro 4 LCD is a complete display and digitizer assembly for the Surface Pro 4 (1724) tablet. It supplies a 12.3-inch panel at 2736 x 1824 resolution with a 3:2 aspect ratio. The module ships as a bonded unit with the touch layer, so technicians replace the whole front section in one step.

The panel uses IGZO PLS LCD technology driven at 267 PPI. Touch input is capacitive and supports the Surface Pen with 1024 pressure levels. The assembly connects through a flex cable and a separate touch ribbon. Corning Gorilla Glass covers the digitizer, and the factory lamination bonds the glass to the LCD without an air gap.

The 12.3-inch diagonal measures 9.5 x 5.5 inches in active area. This part fits Surface Pro 4 model 1724 only; it does not fit Surface Pro 3, Pro 5 or later generations. Technicians should confirm the original panel part number and connector type before ordering, since replacement stock can arrive with different flex layouts.

Key Features

• 2736 x 1824 PixelSense Resolution
  The 12.3-inch panel delivers 267 PPI across a 3:2 aspect ratio for document and drawing work.

• Bonded Touch and LCD Assembly

  • Capacitive digitizer bonded directly to the LCD
  • Corning Gorilla Glass front layer
  • Separate touch ribbon and display flex cable

• Surface Pen Support
  The digitizer recognises the Surface Pen at 1024 pressure levels for note-taking and sketching.

• IGZO PLS Panel Technology
  Indium gallium zinc oxide backplane drives the PLS liquid crystal layer for wide viewing angles.

• Model-Specific Fit
  The assembly matches the Surface Pro 4 (1724) chassis and does not fit Pro 3 or Pro 5 units.

• Pre-Laminated Construction
  The glass and LCD arrive bonded at the factory, which avoids dust ingress between layers during repair.

• Anti-Reflective Coating
  The front glass carries an anti-reflective treatment that reduces glare under office lighting.

Specifications

What’s in the Box

• Surface Pro 4 LCD and digitizer assembly

• Pre-fitted display flex and touch ribbon

• Protective packaging

Why Choose This Surface Pro 4 Panel

• Replacing the bonded front section avoids separating glass from LCD, which often damages the panel.

• The 267 PPI PixelSense display matches the factory resolution for documents, CAD viewers and note apps.

• Touch and pen support restore tablet-mode operation for field staff and design workflows.

• Gorilla Glass and factory lamination keep the front surface flat and resistant to scratches.

• Model-specific fitment reduces the risk of connector mismatch during depot repair.

• The anti-reflective coating improves readability in bright rooms and outdoor use.
