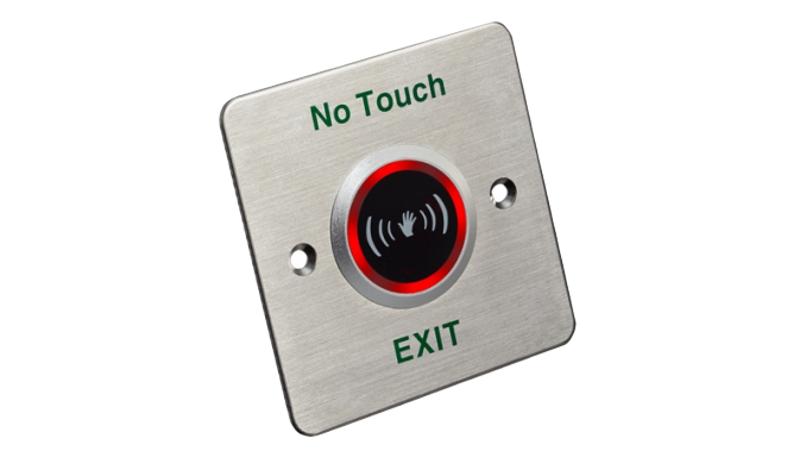

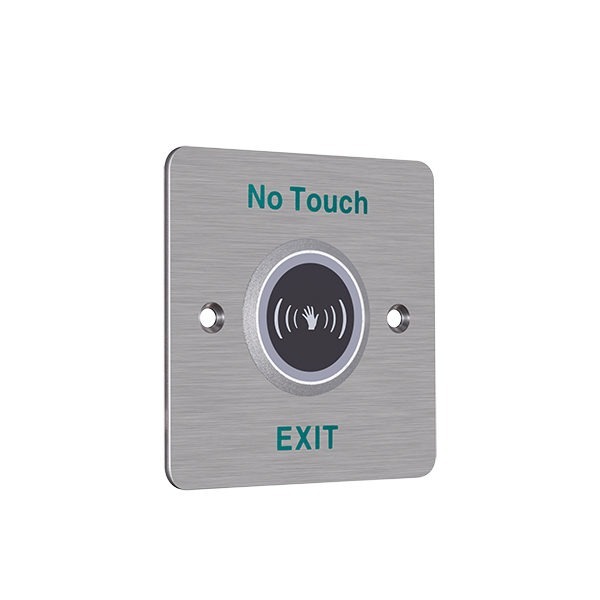

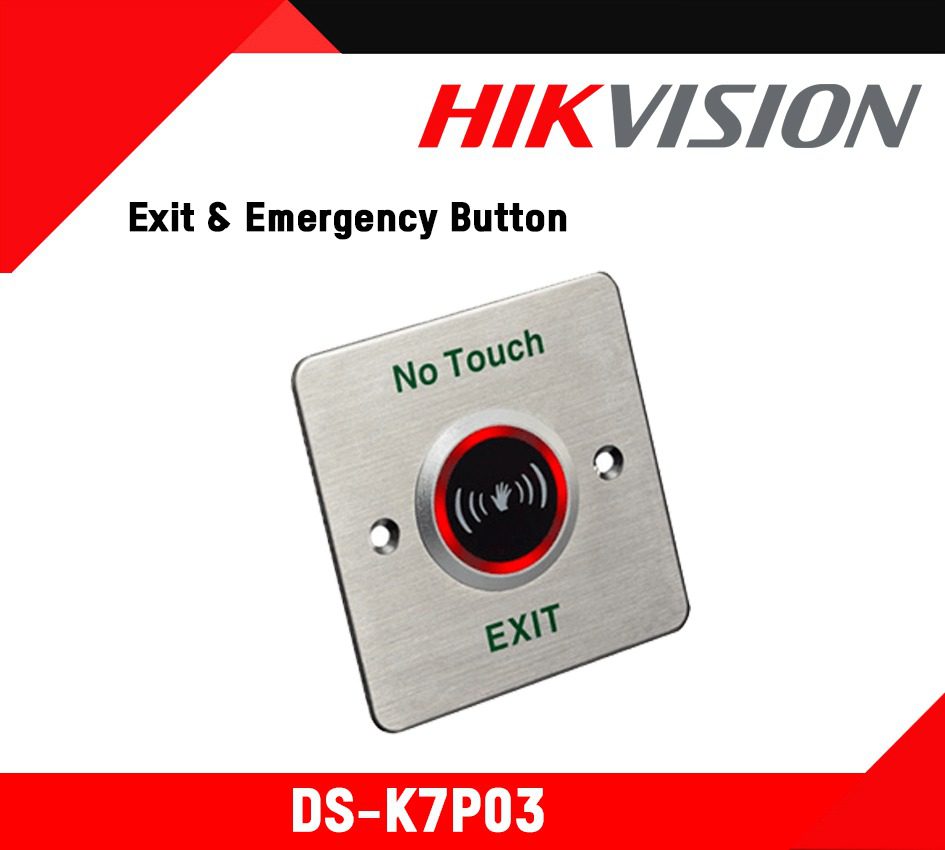

Hikvision DS-K7P03 Non-Touch Infrared Exit Button with Emergency Override

Hikvision DS-K7P03

The Hikvision DS-K7P03 Non-Touch Exit integrates infrared induction technology with a secondary mechanical override for secure egress management. This device facilitates door release without physical contact to maintain hygiene in high-traffic environments. It operates on a standard 12V DC power supply and provides versatile relay outputs for various locking mechanisms. The aluminum faceplate undergoes a sandblasting process to increase surface hardness. This treatment also provides a non-reflective finish suitable for areas with high-intensity lighting. The internal PCB uses high-quality components rated for continuous 24/7 operation. The infrared emitter and receiver pair are calibrated to minimize interference from external light sources.

Key Features

• Infrared Induction Sensor
  The sensor detects hand proximity within an adjustable range of 3 to 12 centimeters.

• Output Configuration

  • NO/NC/COM dry contact outputs
  • 1A at 30V DC relay rating
  • Independent emergency switch circuit

• Visual Status Indicators
  The dual-color LED ring provides immediate feedback by switching from blue to green when triggered.

For wiring, the unit features clearly labeled terminal blocks on the rear. These blocks accommodate solid or stranded core wire up to 1.5mm². The emergency button utilizes a high-visibility design to ensure users can locate the manual trigger quickly during crises. This mechanical switch provides a tactile click to confirm activation. The combination of electronic and manual triggers makes this unit suitable for facilities requiring strict adherence to fire and safety codes. The device fits standard UK-style 86mm mounting boxes. The relay output handles standard electromagnetic locks or strike plates. The sensing range adjustment requires a simple potentiometer turn on the rear of the PCB. This allows installers to tune the sensitivity to prevent false triggers in narrow corridors. Consequently, the unit provides reliable performance across diverse architectural layouts.

Specifications

What’s in the Box

• Hikvision DS-K7P03 Exit Button unit

• Mounting screws

• Technical installation guide

Why Choose Hikvision DS-K7P03

• Enhanced Hygiene: Touchless operation prevents the spread of pathogens on shared surfaces.

• Redundant Safety: The physical emergency button ensures exit capability during electronic failures.

• Robust Housing: The sandblasted aluminum alloy panel resists physical impact and environmental wear.

• Precision Tuning: Adjustable sensitivity prevents false activations from nearby movement.

• Standardized Form Factor: The 86mm square design fits common electrical mounting hardware.
