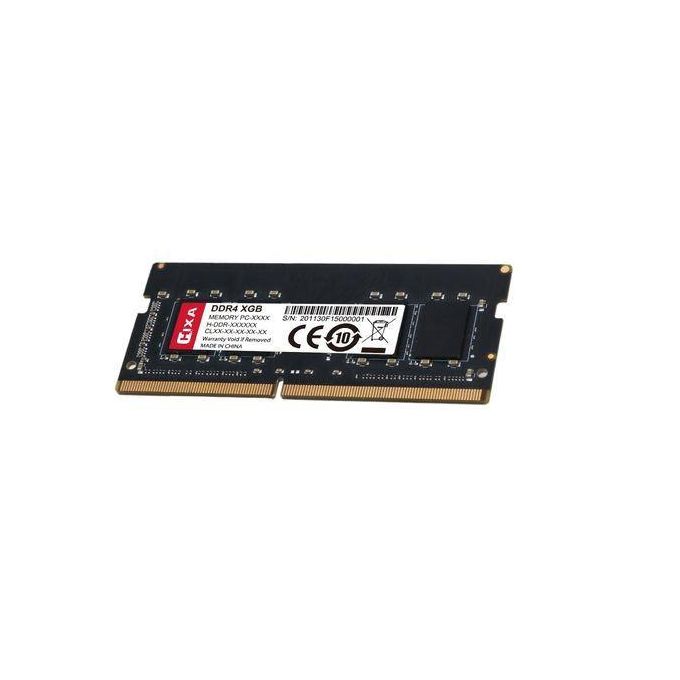

Hixa 32GB PC4-3200 DDR4 Laptop RAM SO-DIMM 260-Pin

High-Capacity DDR4 Memory for Laptops

The Hixa 32GB PC4-3200 is a 32 GB DDR4 SO-DIMM module for compatible laptops and notebooks. It operates at 3200 MHz (PC4-25600) with CL22 latency and 1.2 V nominal voltage. The 260-pin form factor fits standard DDR4 SO-DIMM slots. This unbuffered, non-ECC module suits mobile workstations, business notebooks, and consumer laptops that need a capacity boost. The module delivers a peak transfer rate of 25.6 GB/s and backward compatibility with lower DDR4 speeds. It uses standard JEDEC timing profiles and requires no manual configuration. The gold-plated edge connector maintains signal integrity across repeated insertion cycles.

Key Features

• 32 GB Single-Module Capacity
  One 32 GB rank populates a single SO-DIMM slot and leaves the second slot free for future expansion.

• PC4-3200 Speed Grade

  • 3200 MT/s effective clock, 1600 MHz I/O bus
  • 25.6 GB/s peak bandwidth per channel

• JEDEC-Standard Timings
  CL22-22-22 timing at 1.2 V falls within the standard DDR4 operating envelope for broad platform compatibility.

• 260-Pin SO-DIMM Form Factor
  The compact module measures 69.6 x 30 mm and fits standard laptop memory sockets.

• Unbuffered, Non-ECC Design
  The module targets consumer and commercial notebooks that use standard unbuffered DDR4 memory.

Laptop platforms based on Intel 10th Gen and newer Core processors, plus AMD Ryzen 4000 and newer mobile CPUs, typically accept this memory type. The module runs at the platform’s highest supported JEDEC profile automatically. Systems limited to 2933 MHz or 2666 MHz operate the module at those lower speeds without timing errors. The 1.2 V rail keeps power draw below DDR3 equivalents and reduces heat inside thin chassis. Install the module in the primary SO-DIMM slot for single-channel operation or pair it with an identical module for dual-channel bandwidth. The edge connector uses 30 micro-inch gold plating for corrosion resistance. Hixa validates each module against JEDEC SPD data so that BIOS and operating systems read correct capacity and timing information.

Specifications

What’s in the Box

• Hixa 32 GB PC4-3200 SO-DIMM memory module

• Anti-static packaging

Why Choose This Module

• The 32 GB density supports virtual machines, large spreadsheets, and multiple browser sessions without paging.

• JEDEC-standard SPD data ensures correct detection across Intel and AMD laptop platforms.

• The 260-pin SO-DIMM footprint fits mainstream business notebooks and mobile workstations.

• 1.2 V operation lowers power draw and thermal output compared with DDR3 memory.

• Single-module packaging simplifies capacity planning and leaves a second slot available.
