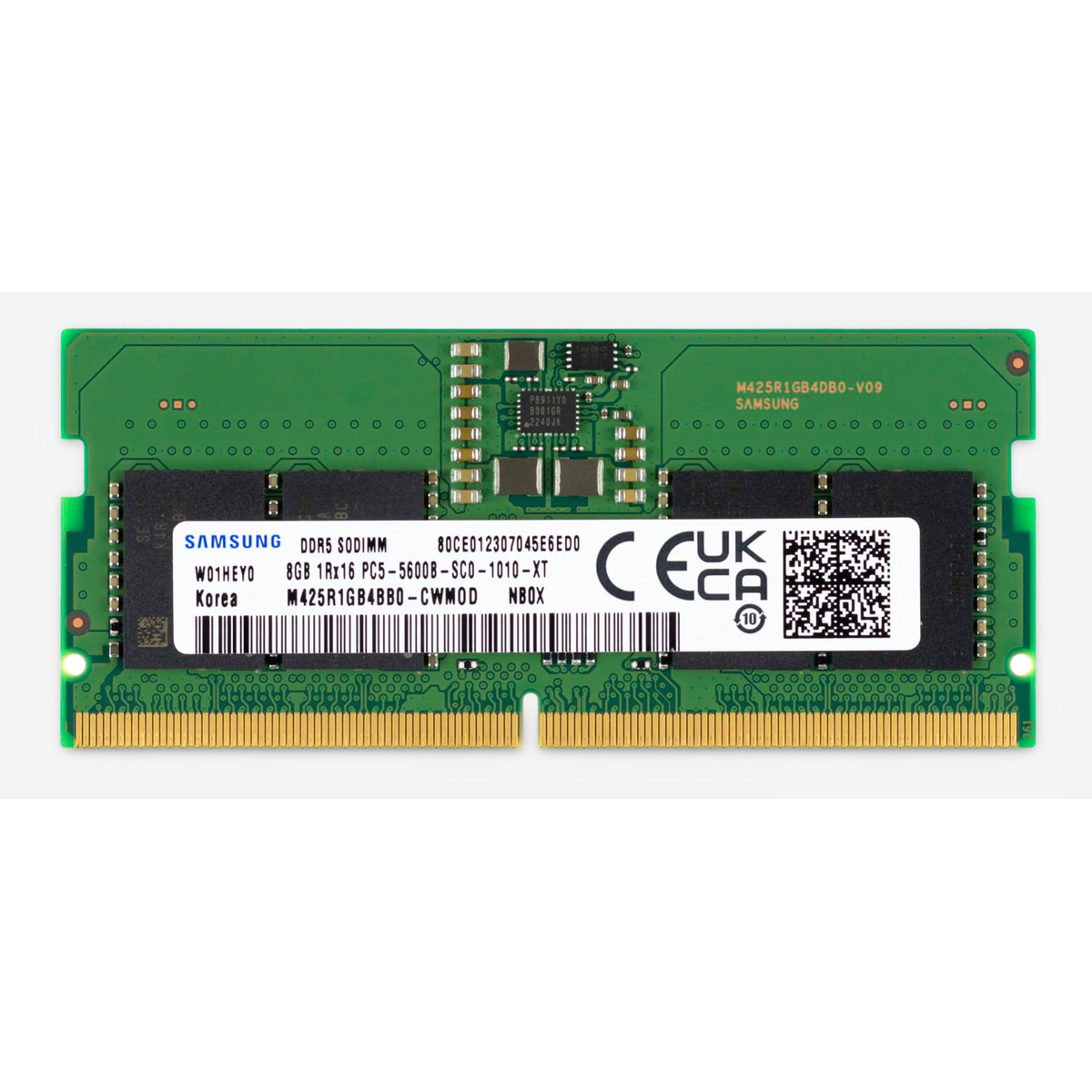

Samsung M425R1GB4PB0 8GB DDR5-5600 SO-DIMM Laptop Memory

Samsung 8GB DDR5 Laptop Module

The Samsung 8GB DDR5-5600 SO-DIMM delivers PC5-5600 transfer rates for DDR5 notebooks that require a single 8GB capacity point. This module uses Samsung DRAM and follows JEDEC DDR5 electrical and timing standards for predictable compatibility with OEM platforms. IT teams use it for field replacements, warranty repairs, and controlled memory upgrades where the host supports DDR5 SO-DIMM at 5600 MT/s.

DDR5 introduces on-module power management and improved burst efficiency compared with DDR4. The 262-pin SO-DIMM footprint matches current thin-and-light and mobile workstation designs. Verify the BIOS memory map and maximum supported speed before installation. Downclocking to lower JEDEC profiles is common when the CPU memory controller limits the effective data rate.

Procurement teams stock this part number against Samsung laptop BOMs and service manuals. The M425R1GB4PB0-CWM0D designation identifies the die configuration and speed bin for asset tracking. Match rank and organization to the original module when upgrading dual-channel systems. Mismatched ranks can force the controller to run both sticks at the slower module profile.

Operating voltage is 1.1V nominal per the DDR5 specification. This reduces power draw versus DDR4 SO-DIMM at comparable capacity. Thermal behavior depends on chassis airflow and sustained workload. Memory stress testing after install confirms stability under compile and virtualization loads common in corporate fleets.

Key Features

• PC5-5600 Data Rate
  Operates at 5600 MT/s under the PC5-5600 specification for higher bandwidth than DDR4 SO-DIMM modules.

• Single 8GB Density
  One 8GB module supports minimum-RAM configurations and targeted replacement of a failed stick.

• DDR5 SO-DIMM Footprint

  • 262-pin connector for laptop and compact systems
  • 1.1V nominal operating voltage per DDR5 standard
  • On-die ECC for internal error correction on consumer DDR5 ICs

• OEM-Grade Samsung Components
  Built with Samsung memory ICs for consistent timing behavior across production lots.

• Non-ECC Consumer Profile
  Standard unbuffered SO-DIMM without system-level ECC for client-class notebooks and mobile PCs.

• JEDEC Compliance
  Meets published DDR5 SO-DIMM standards for voltage, timing, and SPD data structure.

Specifications

What’s in the Box

• Samsung M425R1GB4PB0-CWM0D 8GB DDR5 SO-DIMM module

• Anti-static packaging

Why Choose Samsung 8GB DDR5 Module

• Documented PC5-5600 speed grade simplifies procurement against DDR5 laptop BOMs.

• Single-module packaging reduces waste for one-to-one RMA swaps in the field.

• Samsung silicon supports stable operation under sustained multitasking loads.

• Standard SO-DIMM geometry fits mainstream DDR5 notebook memory slots without adapter hardware.

• 1.1V operation aligns with current mobile platform power budgets.
