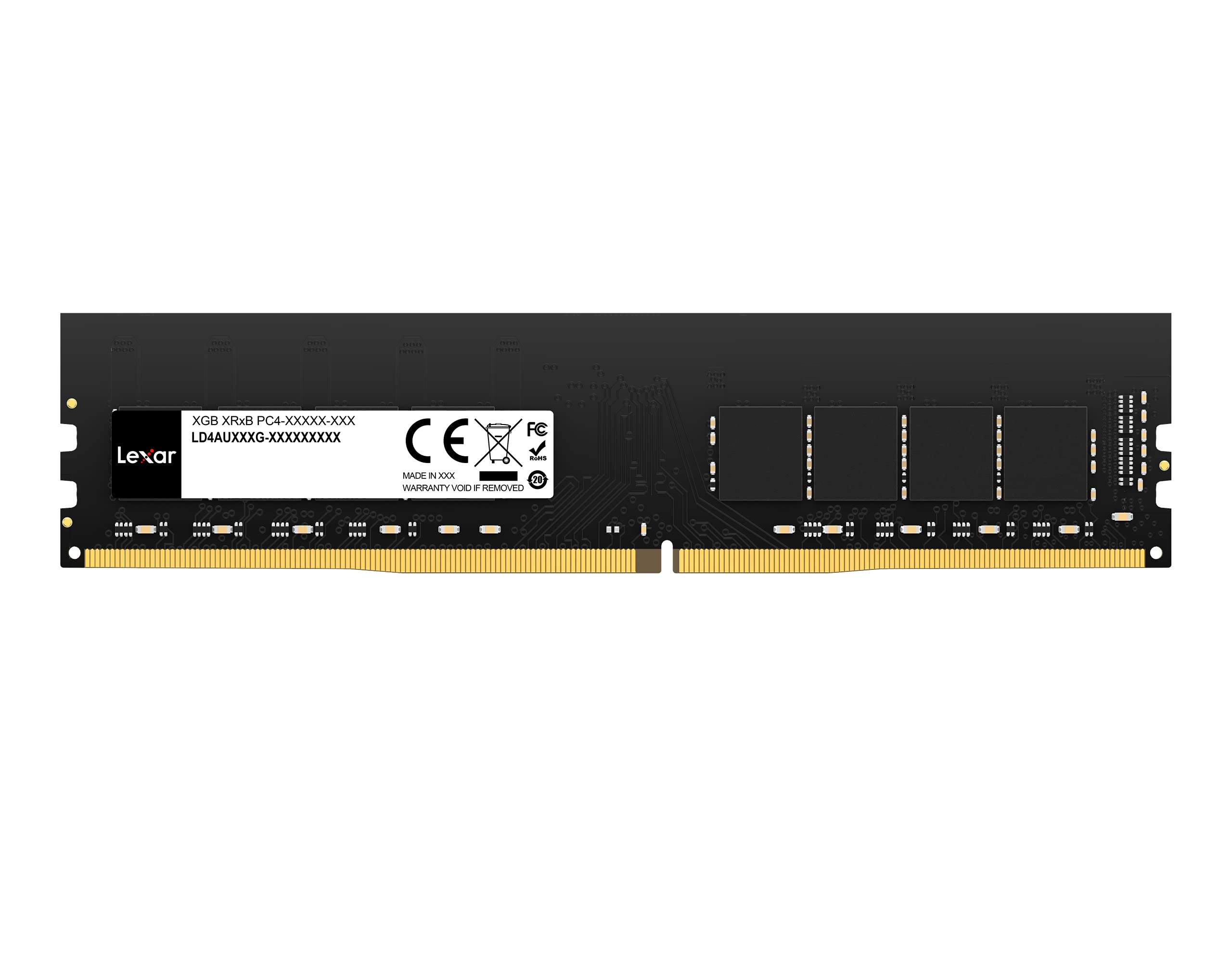

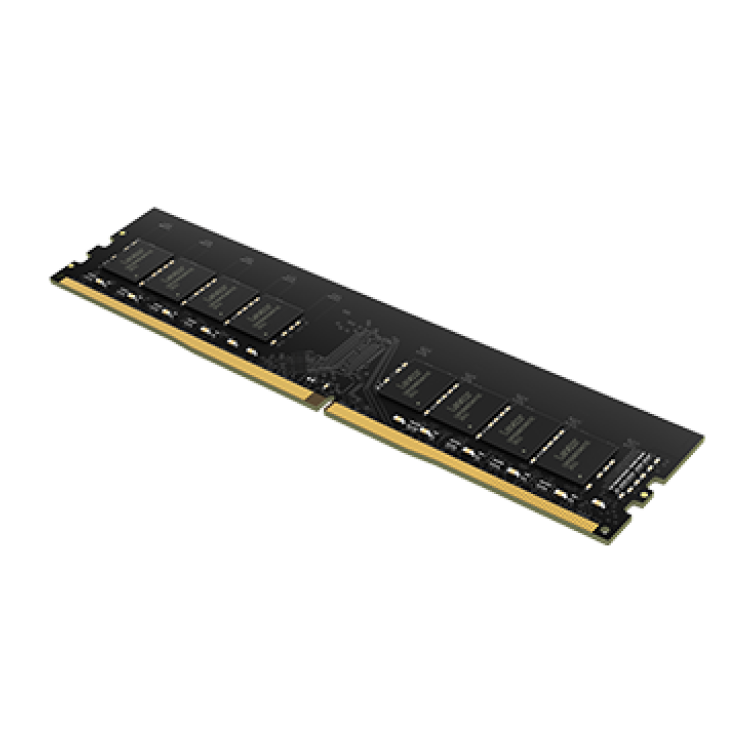

Lexar 8GB DDR4-3200 UDIMM Desktop Memory CL22 1.2V

Reliable DDR4 UDIMM for Desktop Upgrades

The Lexar 8GB DDR4 module runs at 3200 MHz through a standard 288-pin UDIMM interface. It applies JEDEC CL22 timings at 1.2V and installs into desktop boards without XMP configuration.

Each module carries 8GB of non-ECC DDR4 memory on a 133.35 x 31.25 mm PCB. The 3200 MHz data rate supplies 25.6 GB/s peak bandwidth per channel. Lexar tests the assembly across its Quality Labs device fleet before dispatch, and the module uses an unbuffered DIMM layout for direct CPU memory controller access.

The 1.2V operating voltage limits power draw and heat output compared with older DDR3 modules. Rated operation spans -20°C to 85°C surface temperature, which covers typical office and workstation enclosures. Storage tolerance extends from -55°C to 100°C. A limited lifetime warranty backs the module.

Compatibility extends to JEDEC-compliant desktop platforms that accept standard DDR4 UDIMMs. The module requires no heatsink clearance beyond the bare PCB height, so low-profile chassis builds remain viable. System builders can pair multiple modules where the motherboard exposes additional slots, provided the platform supports the same speed and timing bin.

Key Features

• JEDEC-Standard Timing Profile
  CL22 latency at 3200 MHz follows the JEDEC DDR4 specification for drop-in compatibility.

• 288-Pin UDIMM Interface
  The unbuffered DIMM format fits desktop motherboards with standard DDR4 slots.

• Low-Voltage Operation
  A 1.2V supply reduces power consumption and thermal load inside the chassis.

• 25.6 GB/s Channel Bandwidth
  The 3200 MHz clock delivers 25.6 GB/s peak throughput per memory channel.

• Quality Lab Validation

  • Tested across thousands of cameras and digital devices
  • Non-ECC, unbuffered construction
  • No XMP or manual overclocking required
  • Surface temperature rated to 85°C

Specifications

What’s in the Box

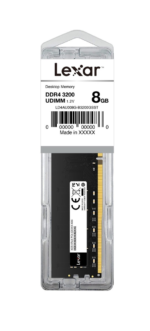

• Lexar DDR4-3200 8GB UDIMM desktop memory module

Why Choose Lexar DDR4-3200

• Standard 288-pin layout supports broad motherboard compatibility without BIOS tuning.

• CL22 timing and 1.2V operation match JEDEC reference values for predictable stability.

• Surface temperature rating of -20°C to 85°C suits mixed office and industrial environments.

• Quality Lab screening covers compatibility and reliability before the module ships.

• Limited lifetime warranty covers the module across its service life.

• 8GB capacity provides a practical density for mainstream desktop configurations.
