Front Runner TBRA030 Drop Down Tailgate Table 40kg

Vehicle-mounted work surface for rear swing doors

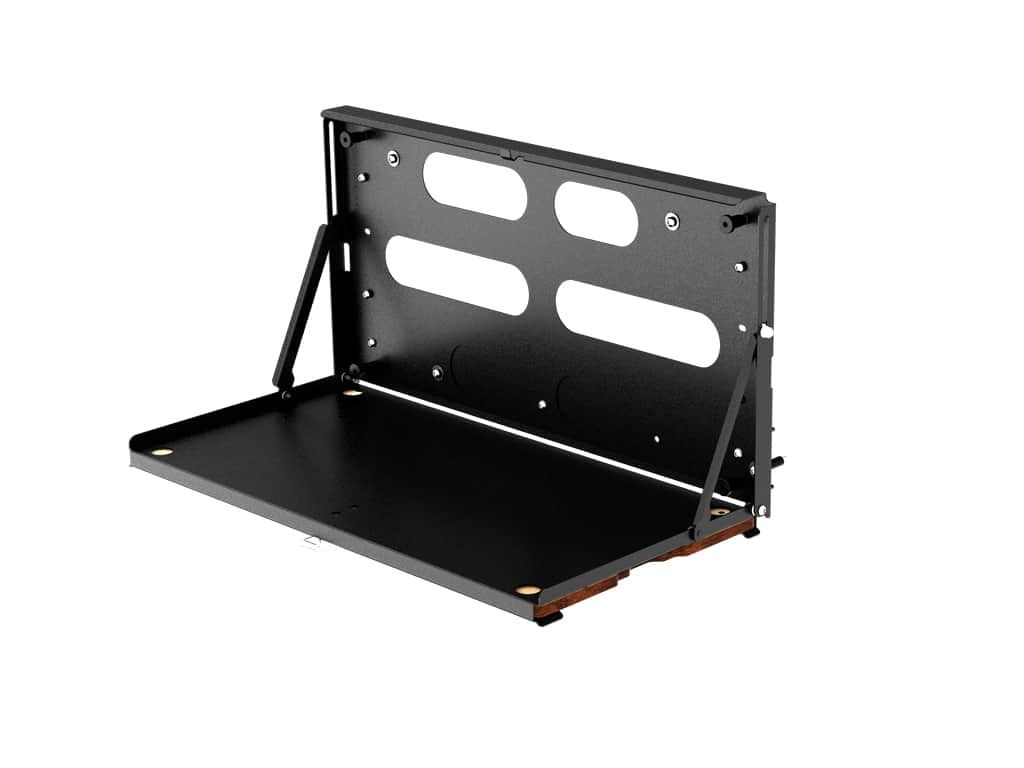

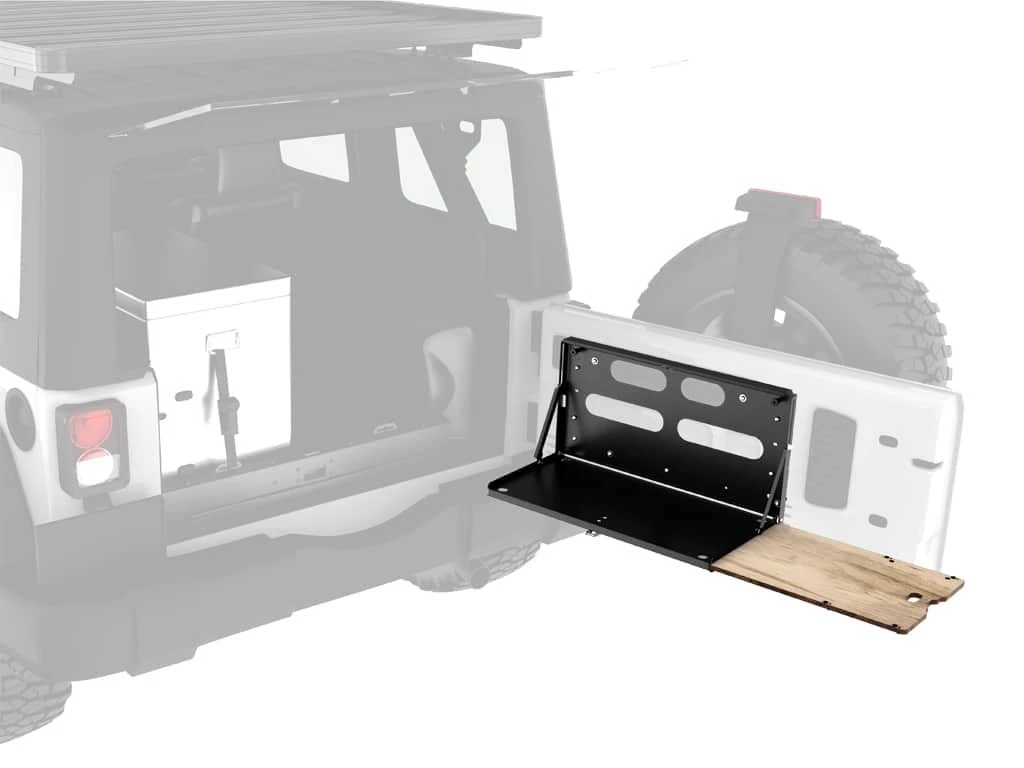

The Front Runner tailgate table mounts to the interior of a rear swing door and folds down into a flat work surface for food preparation, camping chores or field repairs. It carries a 40 kg load rating and a primary tray measuring 648 x 331 mm. The design fits Jeep Wrangler JK, JKU and JL models, plus SUVs and trailers with a suitable flat mounting panel.

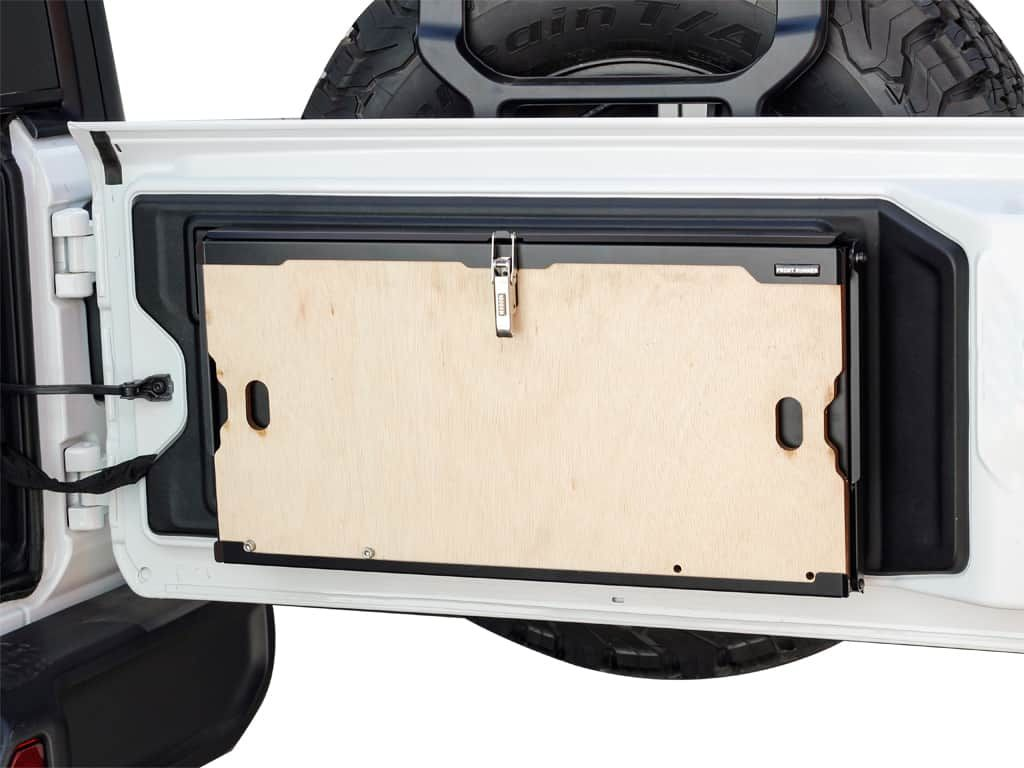

The main tray is formed from black powder-coated steel, sealed with the same weather-resistant finish used on Front Runner roof racks. A 12 mm laminated plywood extension slides out to add 445 mm of length, raising the usable surface to 1105 mm when fully deployed. The extension can be configured to open to the left or the right, depending on the door hinge side and the workspace layout.

Closed dimensions measure 685 x 358 x 54 mm, and the fully opened height reaches 376 mm from the mounting face. The complete assembly weighs 7.8 kg, which keeps the door load within typical hinge limits. Two sliding stays support the table in the open position and fold flat when the latch releases. Four adjustable stoppers hold the tray against the frame in transit, which limits rattle on corrugated roads.

Installation requires a flat door panel or steel surface of at least 685 x 376 mm. Drilling is required, and the kit includes all necessary hardware and fitting instructions. The table fits both left-hand and right-hand opening doors. Check the internal door structure before drilling, because the mounting screws need solid material behind the trim panel.

Use the surface for a camping stove, a laptop, tools or a cutting board. Wipe the powder-coated steel with a damp cloth and dry it after use. Clean the plywood extension with a mild cleaner and let it dry fully before sliding it back into the frame. Inspect the sliding stays and stoppers at each service interval, and tighten the mounting hardware after the first few trips.

Key Features

• 40 kg load rating
  The table supports food preparation gear, tools and camp equipment up to 40 kg.

• Sliding plywood extension

  • Adds 445 mm to the primary tray length
  • 12 mm laminated plywood construction
  • Configurable to open left or right

• Powder-coated steel tray
  The black finish matches Front Runner racks and resists weather exposure.

• Dual sliding stays
  Two stays support the table when open and fold flat for storage.

• Rattle-free latch system
  Four adjustable stoppers hold the tray against the frame in transit.

• Left or right door fitment
  The mounting layout suits both left-hand and right-hand swing doors.

• Complete installation kit
  Hardware and fitting instructions ship with the table assembly.

Specifications

What’s in the Box

• Table assembly

• Installation hardware

• Fitting instructions

Why Choose This Tailgate Table

• The fold-down tray creates a stable work surface without occupying cabin space.

• Steel and plywood construction handles heat, moisture and repeated setup.

• The sliding extension increases surface area without adding a separate table.

• Adjustable stoppers limit movement and noise when the vehicle is moving.

• The kit covers both left-hand and right-hand door layouts.
