Front Runner SWCL004 Low Profile Spare Wheel Clamp 263 x 55 x 242mm

Roof Rack Spare Wheel Mounting Bracket

The Front Runner SWCL004 is a low-profile clamp that secures a spare wheel to a Front Runner roof rack or load bar set. It mounts across two slats and holds the wheel with the hub facing down toward the platform. That arrangement frees the wheel well for extra gear.

The bracket suits raised-dish rims with the hollow side facing up. It tightens against the back side of the wheel rather than the face, which protects the finish. The clamp body measures 263 mm long, 55 mm wide and 242 mm high. Total weight is 1.5 kg.

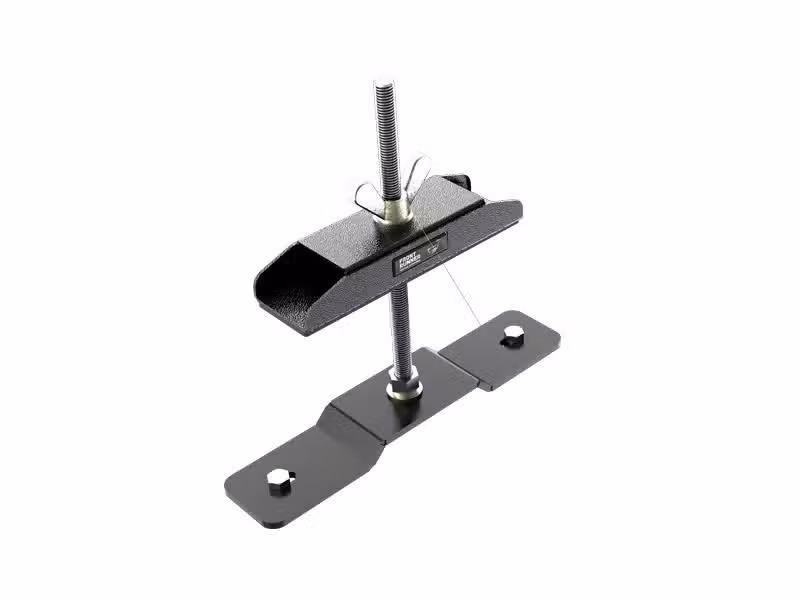

Black powder-coated high-strength steel forms the rack bracket and clamp bracket. The kit ships with both brackets and the mounting hardware. The clamp accommodates deep offsets and a wide range of wheel sizes. Installation takes standard hand tools and no drilling of the rack slats.

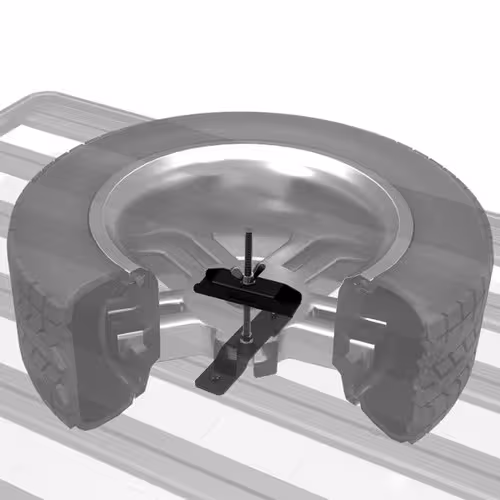

Operators load the wheel onto the rack with the hub toward the slats, then position the clamp across two slats and tighten the hardware. The low-profile body keeps the wheel close to the platform and limits added height. Check fastener torque after the first trip and after any wheel change.

Key Features

• Low-Profile Wheel Clamp
  The clamp holds the spare wheel close to the rack slats and limits overall height.

• Two-Slat Mounting
  The base spans two platform slats and lands on standard Front Runner rack hardware.

• Raised-Dish Rim Fitment
  The bracket suits rims with the hollow side facing up and clamps from the back side.

• Deep Offset Support
  The clamp reaches past deep wheel offsets without contacting the wheel face.

• Steel Construction
  Black powder-coated high-strength steel resists corrosion on exposed roof racks.

• Complete Hardware Kit
  The package includes one rack bracket, one clamp bracket and mounting hardware.

Specifications

What’s in the Box

• One rack bracket

• One clamp bracket

• Mounting hardware

Why Choose the SWCL004 Clamp

• The low-profile design keeps the spare wheel close to the rack surface.

• The two-slat base spreads wheel load across the platform.

• Back-side clamping protects the wheel face and finish.

• High-strength steel handles exposed roof rack conditions.

• The included hardware supports a direct installation with hand tools.

• The clamp accommodates deep offsets and mixed wheel sizes.
