Front Runner RRAC153 Fork Mount Bike Carrier Power Edition

Upright Bicycle Mount for Roof Rack and Load Bar Systems

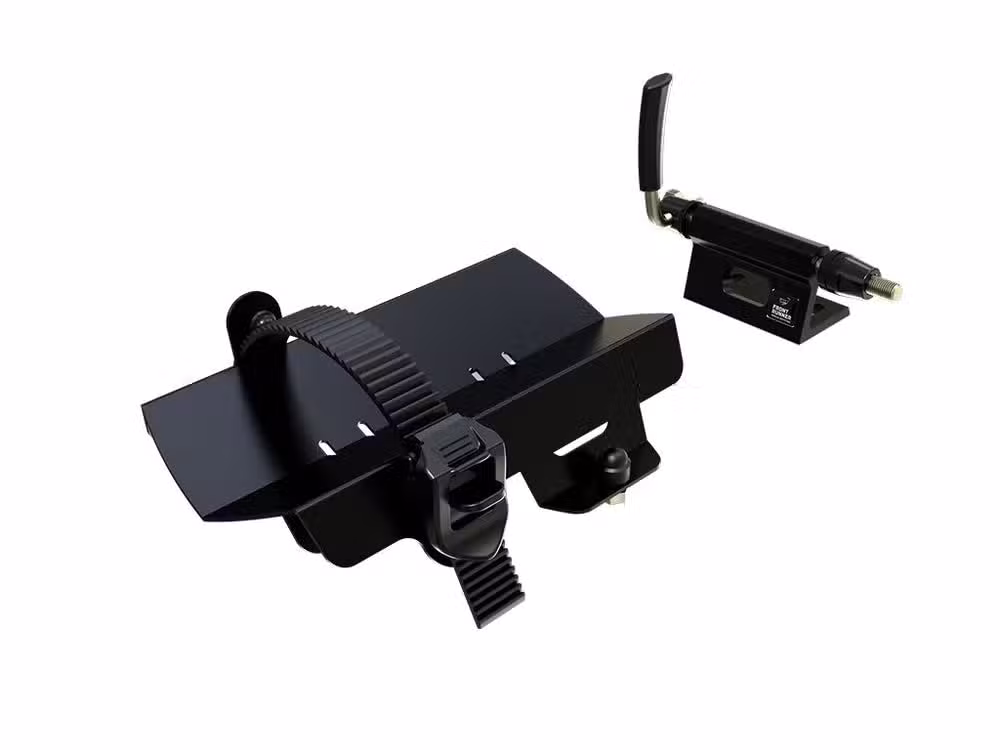

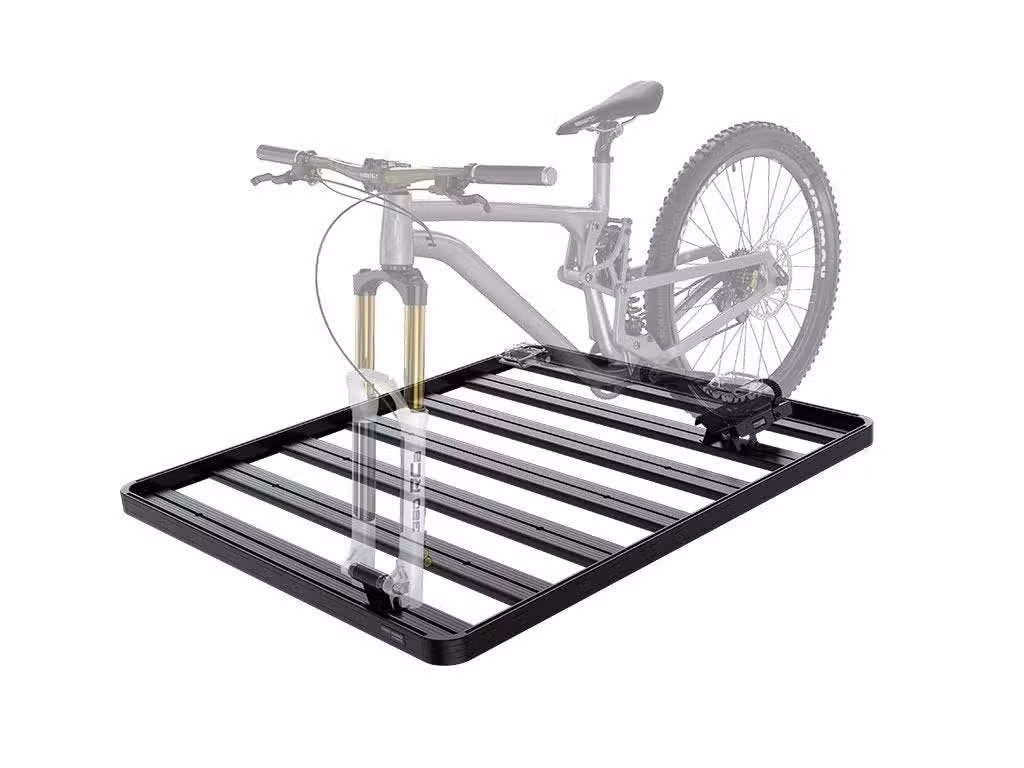

The Front Runner RRAC153 is a two-piece upright carrier that secures a bicycle by its fork and rear wheel. It mounts to a Front Runner rack or load bar set and holds one bike. Black powder-coated 3CR12 stainless steel forms the main structure, with a rubber ladder strap and plastic ratchet buckle at the rear.

The rear wheel holder measures 230 x 137 x 66 mm, and the front clamp measures 48 x 152 x 53 mm. The complete assembly weighs 2.6 kg. The front fork clamp uses a quick release that accepts all standard fork dropouts. The rear holder covers wheel sizes from 700C x 23 mm road tyres up to 26 x 4.5-inch fat bike tyres, so one carrier serves road, gravel and fat bike builds.

Fitment requires a minimum rack length of 1156 mm, equivalent to six slats. The carrier works with the Thru Axle Adapter RRAC119 when a thru-axle or pinch-axle fork needs mounting. E-bike use depends on the rack total weight capacity, so confirm the load rating before carrying a powered bike. Front Runner backs the accessory with a three-year warranty.

Installation uses the supplied hardware and fitting instructions. Set the front clamp on the rack slat, align the rear holder with the wheelbase, and torque the fasteners. Load the bike by dropping the fork onto the quick release, then strap the rear wheel through the ratchet buckle. Check strap tension after the first few kilometres on corrugated roads.

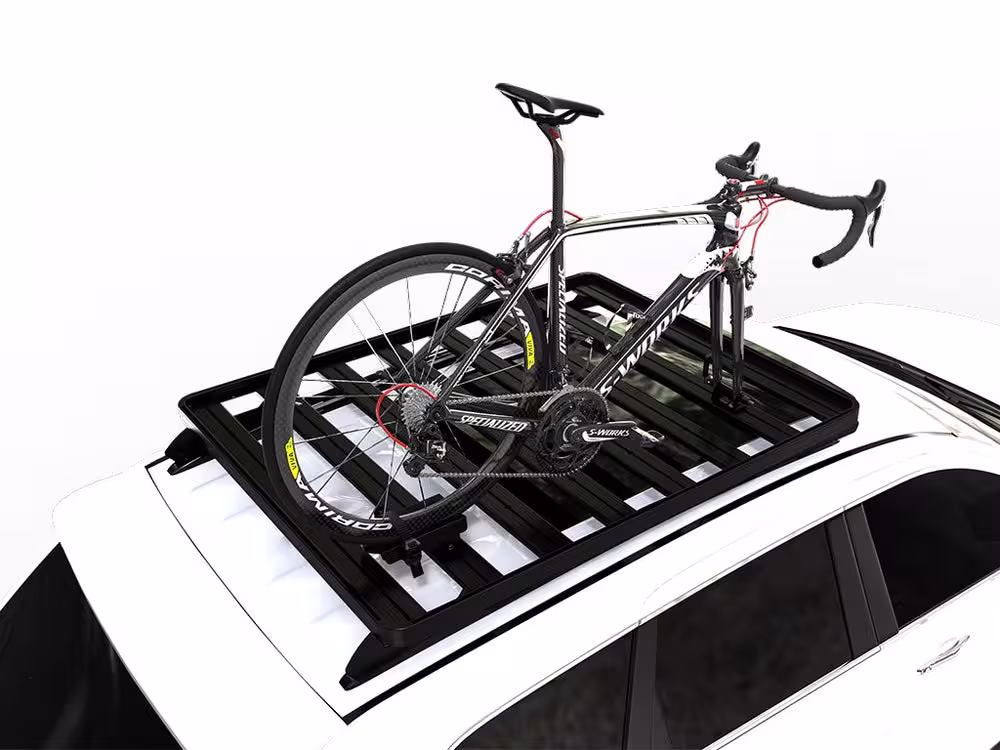

The carrier suits touring, trail access and shuttle runs where the bike rides above the roofline. Keeping the bike upright avoids handlebar contact with the roof and leaves tray space for cargo boxes. The two-piece layout also lets technicians replace the front clamp or rear holder separately if one part is damaged.

Inspect the strap and buckle at each trip. Replace the rubber ladder strap if it shows cuts or hardening. Keep the quick release clean and lightly lubricated so the cam action stays smooth. The powder coat resists stone chips and road salt, and the stainless body limits corrosion on coastal routes.

Key Features

• 3CR12 Stainless Steel Body
  The black powder-coated frame resists corrosion and stone-chip damage on gravel routes.

• Quick-Release Fork Clamp
  The front clamp accepts standard fork dropouts and locks the fork with a cam lever.

• Fork and Rear Wheel Clamp Set

  • Rear holder spans 230 x 137 x 66 mm
  • Front clamp spans 48 x 152 x 53 mm
  • Rubber ladder strap and plastic ratchet buckle secure the rear wheel

• Wide Tyre Coverage
  The rear holder accepts 700C x 23 mm road tyres through 26 x 4.5-inch fat bike tyres.

• Thru Axle Adapter Ready
  The RRAC119 adapter adds 100 x 15 mm, 110 x 20 mm and 110 x 15 mm boost fitment.

• 6-Slat Rack Requirement
  The carrier needs at least 1156 mm of rack length to seat both clamps.

Specifications

What’s in the Box

• One fork clamp

• One rear wheel holder

• Installation hardware

• Fitting instructions

Why Choose the RRAC153

• The upright layout keeps the bike clear of roof-mounted cargo boxes.

• The quick-release clamp fits standard fork dropouts without tools.

• The rear holder covers road, gravel and fat bike tyre widths in one part.

• Stainless steel construction limits corrosion on coastal and dusty routes.

• The two-piece design allows single-part replacement after impact damage.
