Eezi-Awn K9-148 Spare Wheel Holder Mounting Kit Black Anodized Steel

Roof Rack Wheel Bracket for Overland Builds

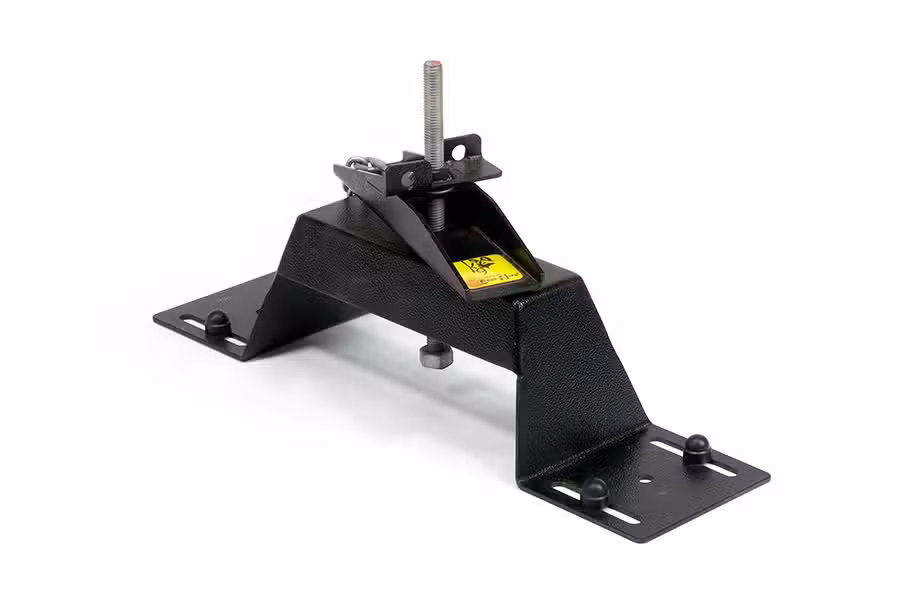

The Eezi-Awn spare wheel holder is a black anodized steel bracket that carries a spare wheel on top of a K9 roof rack. It clamps through the wheel rim, so one bracket covers any tyre size or style. A flat rear face bolts onto an included K9 accessory adapter.

The assembly weighs roughly 0.5 kg with installation hardware. Black anodizing resists corrosion on coastal routes and gravel tracks. The flat back plate spreads load across the adapter instead of concentrating stress on two bolts. A central stud passes through the rim centre bore and pulls the wheel against the bracket face.

Fit the adapter to the rack top, then bolt the bracket to the adapter plate. The wheel sits upright above the rack line and leaves the load bed clear for cargo. A padlock or cable lock through the rim adds security, though no lock ships with the kit. Recheck bolt torque after the first rough section and at each service interval.

Key Features

• Black Anodized Steel Body
  The coated steel bracket resists corrosion and holds its shape under a loaded wheel.

• Rim-Through Clamping
  A central stud passes through the wheel centre bore and clamps the rim against the bracket face.

• Mounting Hardware and Adapter

  • Ships with a K9 accessory adapter for the rack top
  • Installation hardware included in the kit
  • Flat back surface seats against the adapter plate

• Universal Wheel Fit
  The through-rim design accepts any tyre size or style rather than a fixed bolt pattern.

• Rack-Top Position

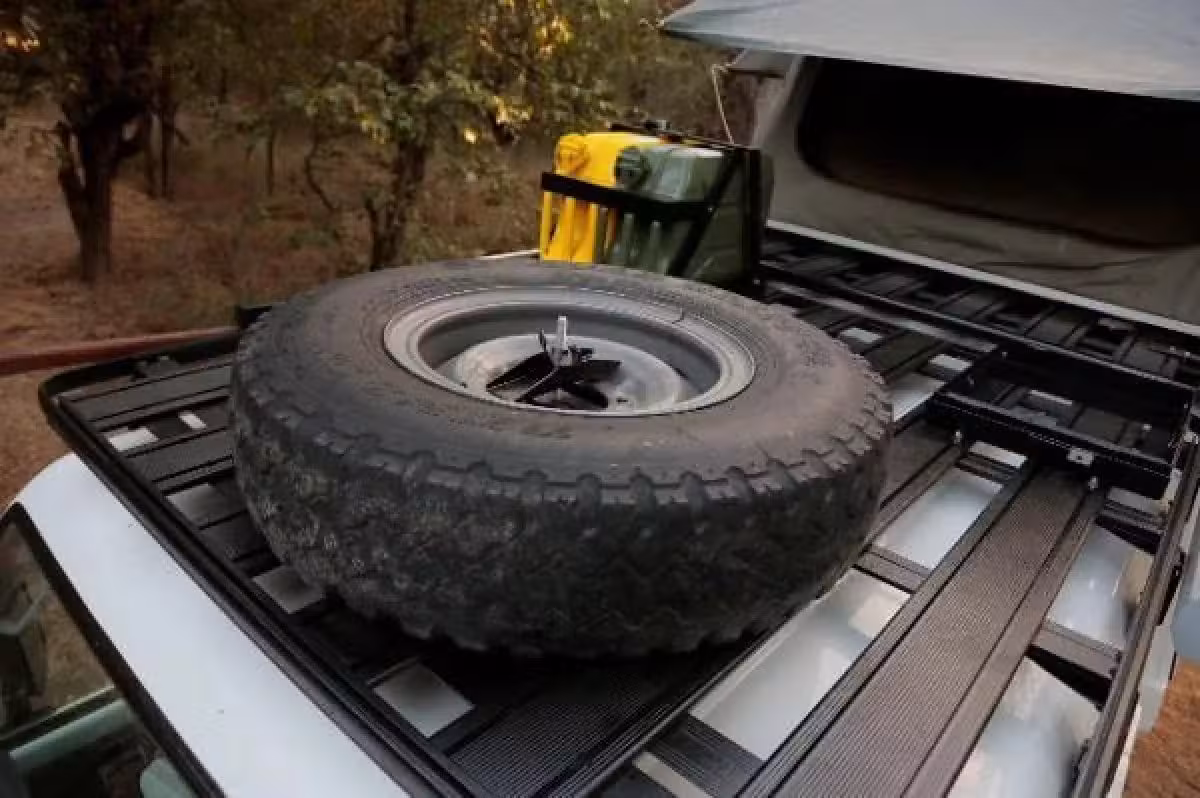

  The wheel stands above the rack line, which frees internal load space for other gear.

• Lock-Ready Rim
  The exposed rim accepts a padlock or cable lock for extra security; the lock is not included.

• Light Assembly Weight
  At about 0.5 kg with hardware, the bracket adds minimal load to the rack structure.

Specifications

What’s in the Box

• 1 x K9-148 spare wheel bracket

• 1 x K9 accessory adapter

• Installation hardware set

Why Choose Eezi-Awn

• The through-rim clamp removes the need to match a fixed bolt pattern on the wheel.

• The K9 adapter seats the bracket on the rack top without drilling the rack extrusion.

• Anodized steel stands up to dust, salt spray and repeated wheel changes.

• Moving the wheel above the rack line frees internal cargo volume.

• The bracket accepts a padlock or cable lock for theft deterrence at trailheads.
