Hikvision DS-K4H258-LZ Inswing Door LZ Bracket
WhatsApp for availability
Hikvision DS-K4H258-LZ Inswing Door LZ Bracket
| Feature | Specification |
|---|---|
| Compatibility | DS-K4H258 Series Maglocks |
| Material | High-Strength Aluminum |
| Door Type | Inswing (Inward Opening) |
| Finish | Sandblast Anodic Oxidation |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

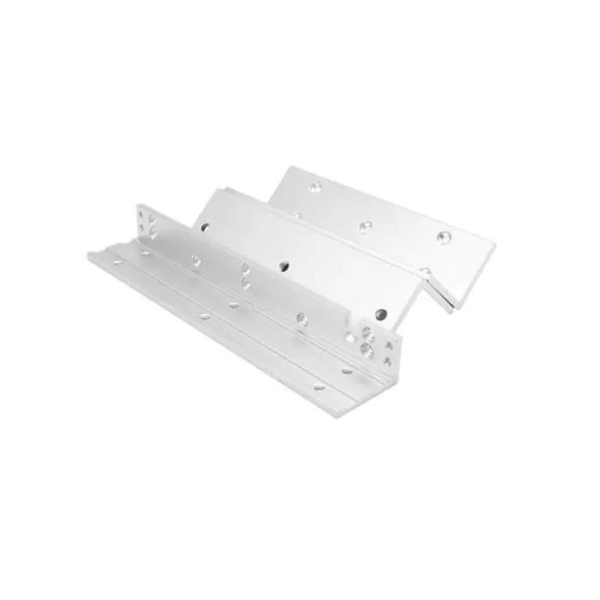

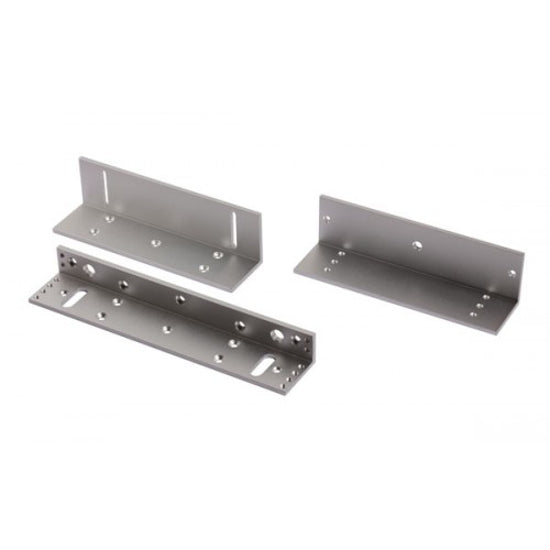

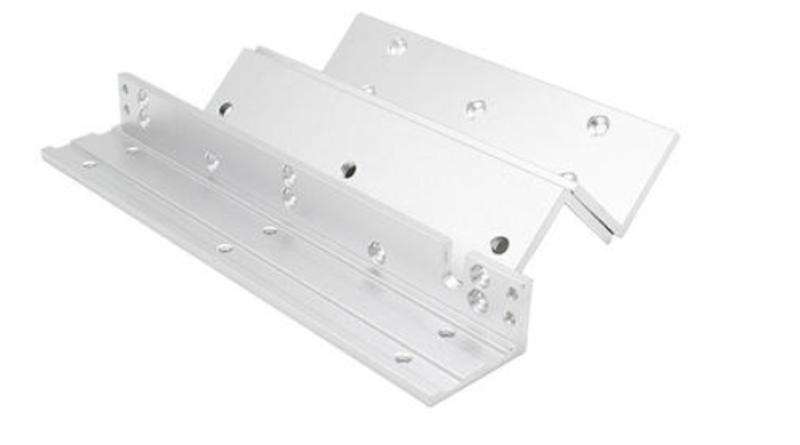

DS-K4H258-LZ Mounting Kit
The Hikvision DS-K4H258-LZ Bracket enables the installation of magnetic locks on inward-swinging doors. This hardware set specifically supports the DS-K4H258S and DS-K4H258D electromagnetic lock series. It allows the armature plate to align with the magnet when the door opens into the protected area. The design utilizes high-strength aluminum alloy for structural stability and long-term performance in high-traffic environments.
Key Features
Material Composition
High-strength AL6063-T5 aluminum alloy ensures the mount withstands mechanical stress without deformation during lock engagement.Surface Engineering
A sandblasted anodic oxidation treatment protects the surface against environmental wear and prevents oxidation over time.Mounting Geometry
- The L-bracket measures 250mm in length for secure frame attachment.
- The Z-bracket provides 180mm of support for the armature plate assembly.
- Adjustable slot patterns allow for precise hardware positioning during commissioning.
The mechanical configuration of this LZ mounting set solves the alignment challenges of inswinging frames. Standard maglocks typically mount to the underside of the frame header. However, inward-opening doors require the armature to sit on the interior side of the leaf. This bracket creates the necessary offset. The L-component secures the magnet body to the frame while the Z-component holds the armature. This setup maintains the full 280kg holding force of the locking mechanism. Proper installation prevents the magnet from shifting during activation cycles. Therefore, the door remains secure against forced entry attempts. The use of aluminum reduces the overall load on the door hinges. This prevents sagging and misalignment over years of operation. The sandblasted finish creates a non-reflective surface that blends with standard door hardware. Additionally, the bracket set includes all necessary mounting screws for immediate deployment. This hardware simplifies the integration of access control systems in office buildings and secure facilities. Technicians can adjust the Z-bracket depth to accommodate varying door thicknesses. This flexibility ensures the armature plate makes full contact with the electromagnetic face.
Specifications
| Feature | Specification |
|---|---|
| Material | High Strength Aluminum (AL6063-T5) |
| Surface Treatment | Sandblast Anodic Oxidation |
| L-Bracket Dimensions | 250 × 47 × 28.5 mm |
| Z-Bracket Dimensions | 180 × 50 × 50 mm |
| Compatible Lock | DS-K4H258S / DS-K4H258D |
| Door Opening Angle | 90 Degrees |
| Weight | 0.75 kg |
What’s in the Box
1 x L-Bracket
1 x Z-Bracket
Mounting Screw Kit
Installation Manual
Why Choose the DS-K4H258-LZ Kit
Precision Engineering
The bracket dimensions match the DS-K4H258 series hole patterns for a direct fit without custom drilling.Environmental Resistance
Anodized coating prevents rust and corrosion in high-traffic commercial environments or humid zones.Structural Reliability
Solid aluminum construction provides a rigid foundation that resists warping under the magnetic pull of the lock.
