Dahua PFM922I-6UN-C CAT6 U/UTP Indoor Cable 305m CCA 23AWG
Original price was: KSh 10,800.00.KSh 9,000.00Current price is: KSh 9,000.00. ex VAT
Dahua PFM922I-6UN-C CAT6 U/UTP Indoor Cable 305m CCA 23AWG
| Model | DH-PFM922I-6UN-C |
| Category | CAT6 U/UTP |
| Conductor | CCA 23AWG, 0.57 mm |
| Length | 305 m ±1.5 m |
| Impedance | 100 ±15Ω |
| PoE | Supported |
| Fire rating | CE CPR Eca |
| Sheath | PVC, orange |
| Operating temperature | -20°C to +60°C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Indoor CAT6 U/UTP Cable for PoE Backbones
The Dahua CAT6 cable ships as a 305 m carton for structured cabling and IP camera drops. It carries four unshielded twisted pairs with a PE cross separator. The 23AWG CCA conductor measures 0.57 mm and delivers a 100Ω nominal impedance.
Each pair uses HDPE insulation at 0.21 mm minimum average thickness. A polyester rip cord runs the length of the sheath, and the PVC jacket measures 6.5 mm with a 0.5 mm wall. The orange jacket carries CE CPR Eca flame retardant certification and meets IEC 60332-1-2 for vertical fire propagation.
Electrical performance holds at 250 MHz: near-end crosstalk is 39.30 dB/100 m or better, attenuation stays under 34.8 dB/100 m, and return loss meets 17.3 dB/100 m. Single-conductor DC resistance peaks at 11.5Ω/100 m. The cable runs from -20°C to +60°C and supports PoE over a single run.
Key Features
23AWG CCA Conductor
The 0.57 mm copper-clad aluminium conductor balances cost against conductivity for indoor runs.Four-Pair U/UTP Construction
- Blue, orange, green and brown pairs with white mates
- PE cross separator maintains pair geometry
- HDPE insulation at 0.21 mm minimum average
305 m Carton Packaging
The box measures 390 x 390 x 247 mm and holds a single 305 m length with a 1.5 m tolerance.PoE-Ready Electrical Profile
A 11.5Ω/100 m maximum conductor resistance keeps voltage drop predictable on powered camera links.CPR Eca Flame Rating
The PVC sheath passes CE CPR Eca and IEC 60332-1-2 vertical flame propagation tests.Wide Thermal Envelope
Operation spans -20°C to +60°C, and installation is rated from 0°C to +50°C.
Specifications
| Feature | Specification |
|---|---|
| Model | DH-PFM922I-6UN-C |
| Cable category | CAT6 U/UTP |
| Conductor material | CCA, copper content 22%–31% |
| Conductor diameter | 0.57 mm ±0.01 mm |
| Wire gauge | 23AWG |
| Insulation | HDPE, 0.21 mm min. average |
| Separator | PE cross, 4.5 x 0.4 mm |
| Rip cord | Polyester 500D |
| Sheath material | PVC, 0.5 mm min. average |
| Outer diameter | 6.5 mm ±0.3 mm |
| Sheath colour | Orange |
| Impedance | 100 ±15Ω |
| Max. DC resistance | 11.5Ω/100 m per conductor |
| Min. insulation resistance | 5000MΩ·km |
| NEXT at 250 MHz | ≥39.30 dB/100 m |
| Attenuation at 250 MHz | ≤34.8 dB/100 m |
| Return loss at 250 MHz | ≥17.3 dB/100 m |
| PoE support | Yes, single-cable power and data |
| Fire rating | CE CPR Eca, IEC 60332-1-2 |
| Operating temperature | -20°C to +60°C |
| Installation temperature | 0°C to +50°C |
| Bending radius | >8 x outer diameter |
| Packaging length | 305 m ±1.5 m per carton |
| Net weight | ≥9.2 kg |
| Executive standard | Q/DXJ 067-2019 |
What’s in the Box

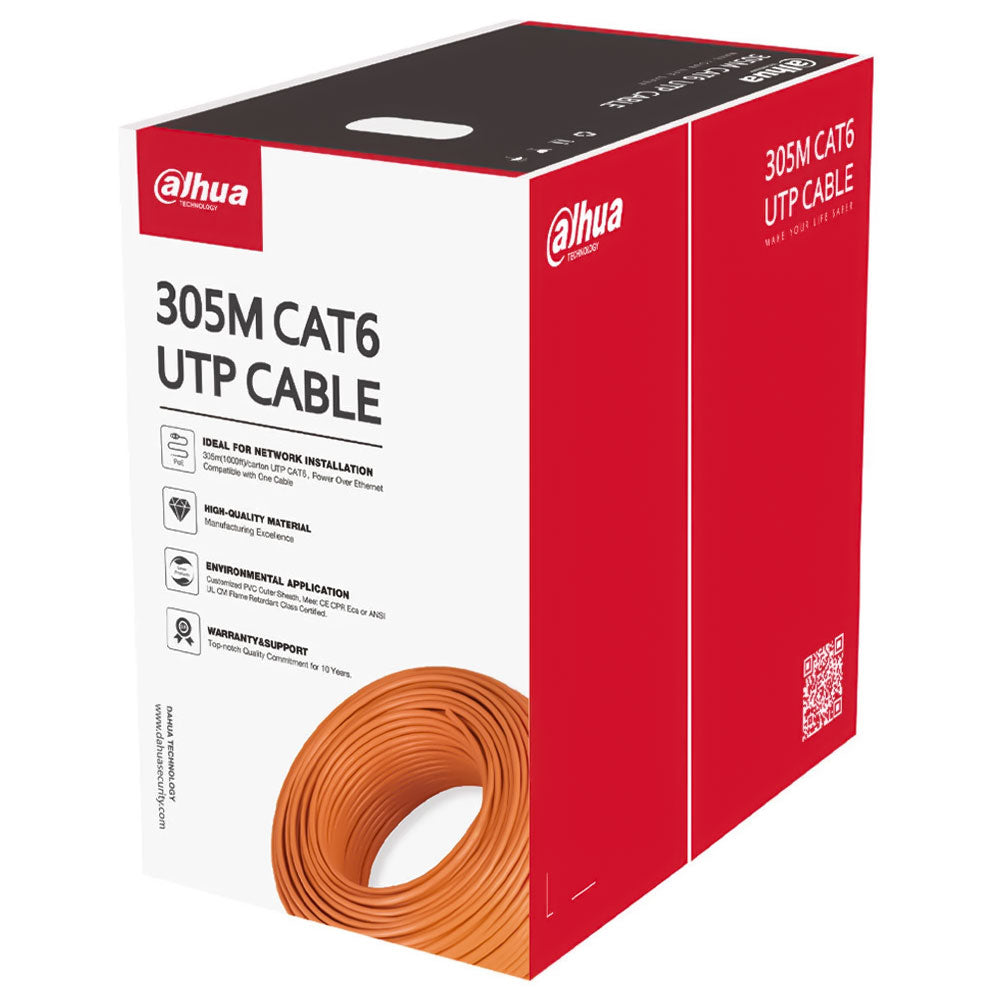

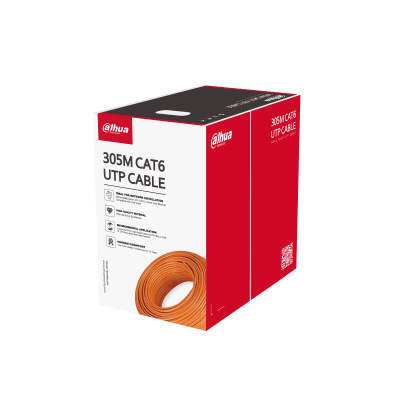

305 m CAT6 U/UTP cable on a carton reel
Protection carton
Why Choose PFM922I-6UN-C
The 305 m box suits multi-drop camera runs without mid-span splices.
PoE compatibility removes a separate power cable at each endpoint.
The PE separator stabilises pair spacing across bends and long pulls.
CPR Eca certification meets indoor flame-spread requirements in commercial buildings.
The 23AWG CCA build lowers material cost while holding CAT6 transmission limits at 250 MHz.
Amina Hassan (verified owner) –
Solid box, good value.
Wanjiru Mbugua (verified owner) –
Ordered the 305m box for our office in Westlands. Delivered within two days, well wrapped. The 23AWG conductors are easy to crimp and my technician had no complaints.
Grace Njeri (verified owner) –
Used it on a home office setup in Karen. The U/UTP construction is fine for our environment and the cable is light enough to run through existing conduit without a struggle.
Brian Kiptoo (verified owner) –
Pulled this box through trunking on a two-floor office fit-out and the jacket held up well against the bends. Terminations on the patch panel were clean, no pair separation issues. Good cable for structured cabling work where the run stays indoors.
Peter Kamau Njoroge (verified owner) –
We ran about 180 metres of this on a small office network with 24 drops and a few IP cameras. Cable pulls smoothly out of the box, the reel does not kink, and the printed metre markings helped when cutting exact lengths. The CCA core is the only thing to watch — keep runs under the recommended distance for PoE devices and it holds fine. Would buy again for indoor structured cabling.
Samuel Mutiso (verified owner) –
Got the box for a small cyber setup. The CAT6 rating gives headroom over CAT5e for gigabit links, and the 23AWG gauge keeps resistance reasonable across short to medium indoor runs. Packaging arrived intact.
Otieno Odhiambo (verified owner) –
Fine cable for indoor runs. Note it is CCA and not solid copper, so keep it away from long outdoor spans or PoE-heavy loads. For desk drops and CCTV inside the building it does the job without fuss.
Faith Chebet (verified owner) –
Decent quality for the price bracket, though the CCA conductor means I would not push it on long PoE camera runs. For internal patch and desk cabling it works and terminates neatly.
