Nexa UTP CAT6 CCA 305M Indoor Cable
WhatsApp for availability
Nexa UTP CAT6 CCA 305M Indoor Cable
| Feature | Value |
|---|---|
| Category | CAT6 UTP |
| Conductor | 23 AWG CCA |
| Length | 305 Meters |
| Bandwidth | 250 MHz |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Nexa CAT6 Indoor Cable
The Nexa UTP CAT6 CCA provides a cost-effective solution for short-run gigabit network installations. This bulk cabling utilizes 23 AWG copper-clad aluminum conductors to maintain Category 6 performance standards. It facilitates data transfer speeds up to 1000 Mbps within indoor environments. The 305-meter length arrives in an easy-pull box to reduce tangling during deployment. This medium supports bandwidth frequencies up to 250 MHz for reliable signal integrity.
Network engineers utilize this bulk media for horizontal cabling in structured wiring systems. The internal architecture features four unshielded twisted pairs separated by a central polyethylene spline. This divider maintains physical geometry and minimizes Near-End Crosstalk (NEXT) and Power Sum Near-End Crosstalk (PSNEXT). Such design ensures data packets reach their destination without significant attenuation or interference. The 23 AWG conductors feature high-density polyethylene insulation for electrical stability.
A flexible PVC outer jacket protects the internal components from mechanical stress during installation. This jacket material allows for smooth routing through tight conduits or cable trays. Sequential meter markings on the jacket assist technicians in tracking remaining inventory and measuring run lengths accurately. While copper-clad aluminum offers a lightweight alternative to solid copper, it remains suitable for standard data transmission. It supports standard T568A and T568B wiring schemes for termination with RJ45 connectors.
The CCA composition leverages the skin effect where high-frequency signals travel primarily on the outer copper layer. This ensures gigabit speeds remain achievable over standard distances. The PVC jacket is rated for standard indoor temperatures and lacks UV stabilization for outdoor exposure. Choosing this specific media reduces procurement costs in large-scale residential or light commercial projects. The easy-pull box design includes a reinforced opening to prevent snags. Consequently, technicians can deploy high-speed infrastructure while maintaining budget constraints.
Key Features
High-Bandwidth Performance
The cable handles frequencies up to 250 MHz for Gigabit Ethernet applications.Internal Construction
- Includes a central HDPE cross-separator to isolate twisted pairs.
- Reduces electromagnetic interference between internal signal paths.
Efficient Deployment

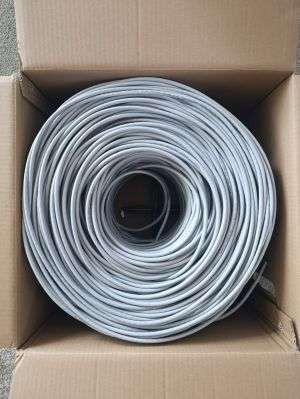

Supplied in a 305-meter easy-pull box with sequential distance markings.
Specifications
| Feature | Specification |
|---|---|
| Conductor Material | Copper Clad Aluminum (CCA) |
| Wire Gauge | 23 AWG |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Category | CAT6 |
| Jacket Material | PVC (Indoor Rated) |
| Length | 305 Meters (1000 Feet) |
| Frequency Support | Up to 250 MHz |
What’s in the Box
1 x 305M Nexa Category 6 CCA UTP Indoor Cable Pull Box
Why Choose Nexa CAT6 Indoor Cable
Reduces overall infrastructure costs in large-scale non-PoE data deployments.
Ensures signal integrity through a dedicated internal pair separator.
Simplifies installation with a snag-free pull box and meter-marked jacket.
