Siemon RIC-F-SC6-01 6-Port SC Fiber Adapter Plate
WhatsApp for availability
Siemon RIC-F-SC6-01 6-Port SC Fiber Adapter Plate
| Feature | Specification |
|---|---|
| Port Count | 6 Fiber Ports |
| Adapter Type | SC Simplex |
| Material | Cold-rolled Steel |
| Compatibility | RIC3, FCP3, VersaPOD |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

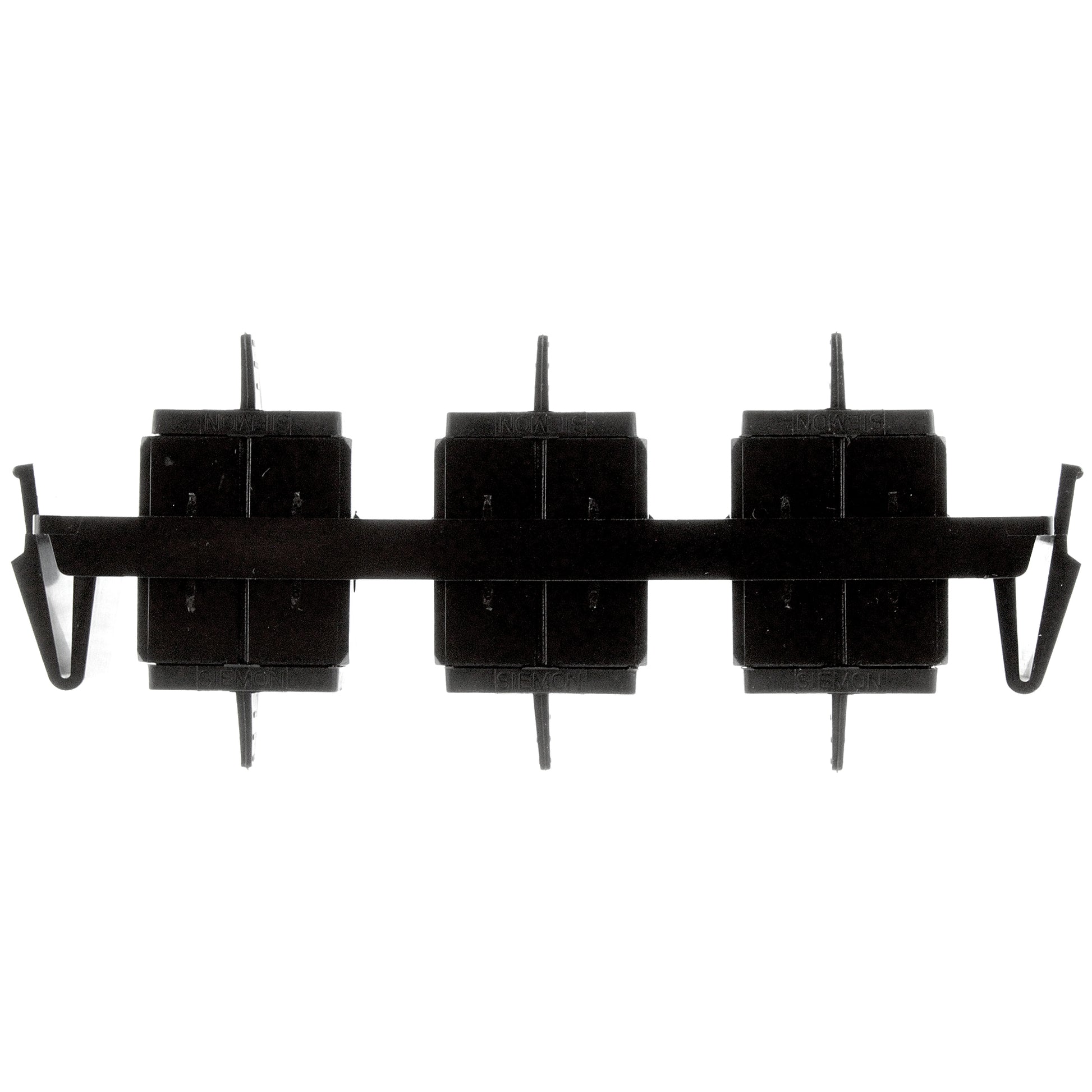

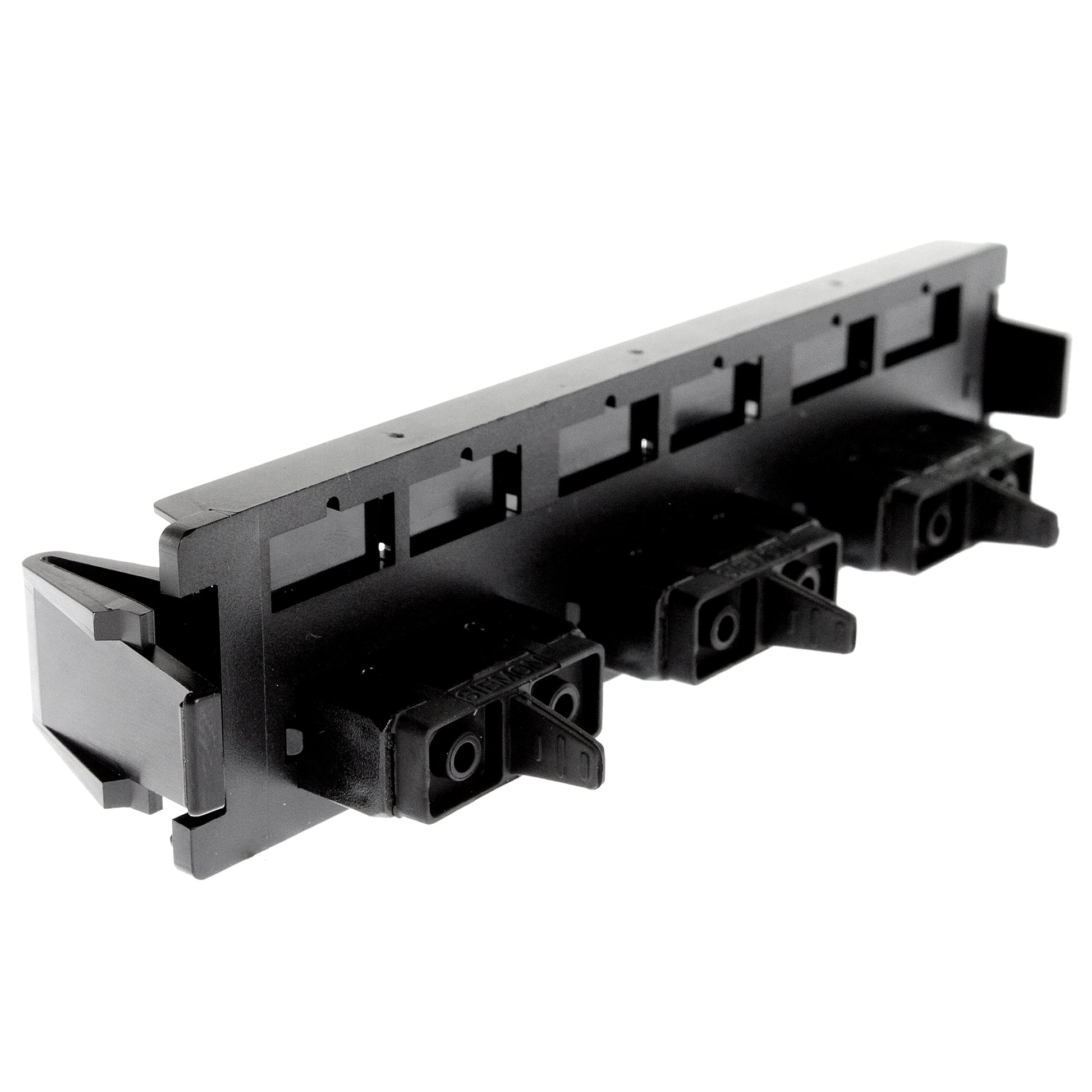

Siemon RIC-F-SC6-01 Adapter Plate
The Siemon RIC-F-SC6-01 SC Plate provides a modular interface for high-density fiber optic patching within enterprise network environments. This component integrates directly into Siemon Rack Mount Interconnect Center enclosures to facilitate organized cable termination. Each unit supports six fiber strands using standardized SC simplex connections. The flat-pack design ensures that adapters remain flush with the plate surface. This configuration optimizes internal clearance within shallow enclosures and prevents mechanical interference with front-facing doors. Engineers utilize these plates to scale fiber capacity in increments of six ports per slot.
Key Features
Tool-less Mounting System
Integrated nylon push-pull latches enable rapid installation and removal from enclosure bulkheads without requiring specialized hardware.Ruggedized Construction
- Manufactured from 16-gauge cold-rolled steel
- Finished with a durable black powder coating
- Resists structural deformation during high-density cable routing
High-Precision Alignment
The pre-installed adapters feature internal sleeves that maintain strict concentricity for optical fiber cores to minimize insertion loss.
The RIC3 enclosure system accommodates multiple modular plates to meet specific port requirements. Each RIC-F-SC6-01 unit occupies a single mounting position in the chassis. A standard 1U RIC3 enclosure typically accepts three plates, providing a total of 18 SC ports. The 4U variant significantly expands this capacity for core switching and data center distribution zones. Using modular plates allows technicians to mix fiber types within the same enclosure. This flexibility supports hybrid singlemode and multimode deployments across the same rack unit.
Proper fiber management remains a priority in the design of these components. The spacing between the six SC ports provides sufficient finger access for connecting and disconnecting patch cords. Technicians can perform maintenance on individual links without disturbing adjacent optical signals. This design reduces the risk of accidental network downtime during routine upgrades. The plate meets all TIA/EIA-568-C.3 requirements for fiber optic hardware performance. It ensures long-term reliability in temperature-controlled data center environments.
Specifications
| Feature | Specification |
|---|---|
| Part Number | RIC-F-SC6-01 |
| Adapter Type | SC Simplex |
| Port Count | 6 Ports |
| Material | Cold-rolled Steel |
| Color | Black (01) |
| Compatibility | RIC3, FCP3, VersaPOD |
| Mounting Type | Push-Pull Nylon Latches |
What’s in the Box
Siemon RIC-F-SC6-01 6-Port SC Adapter Plate
Pre-installed SC Simplex Adapters
Why Choose Siemon RIC-F-SC6-01
The flat profile prevents patch cord strain by maintaining a low-profile interface within the enclosure.
Steel housing provides superior grounding continuity and mechanical protection compared to plastic alternatives.
Standardized footprint allows for consistent deployment across RIC3 and FCP3 patching platforms.
Factory-assembled adapters reduce field labor time and ensure consistent alignment performance.
