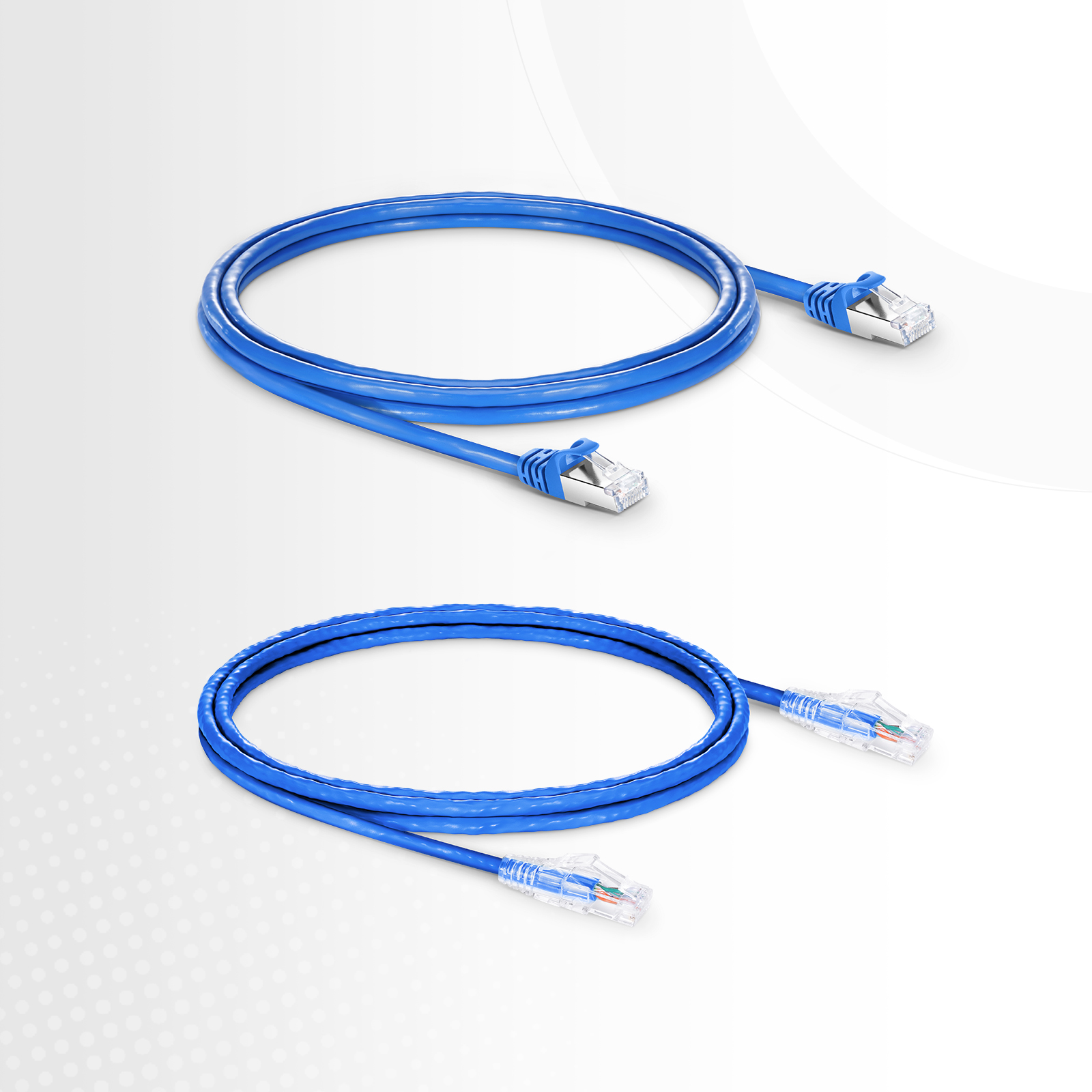

CAT6 1M Patch Cord UTP 24 AWG RJ45 Male to Male 550MHz

Copper Patch Lead for Gigabit and 10GbE Links

The CAT6 1M Patch Cord connects switches, patch panels, servers and wall outlets across a one-metre run. It uses four-pair unshielded twisted pair construction and terminates in RJ45 male plugs at both ends. The assembly supports Gigabit Ethernet and short-reach 10GBASE-T links.

Each conductor uses 24 AWG stranded bare copper for flexibility in dense racks. An internal nylon spline separates the four twisted pairs and reduces near-end crosstalk. The cable carries a 550MHz bandwidth rating and meets ANSI/TIA-568.2-D Category 6 requirements.

Gold-plated contacts resist corrosion across repeated mating cycles. A moulded snagless boot protects the RJ45 release tab during pulls through cable managers. The PVC jacket measures approximately 5.8mm in diameter and routes through high-density patch fields without kinking. Wiring follows the T568B scheme and remains compatible with T568A installations.

Key Features

• 550MHz Bandwidth Rating
  The cable supports Gigabit Ethernet and short-run 10GBASE-T links with headroom above the 250MHz Category 6 floor.

• 24 AWG Stranded Bare Copper
  Stranded conductors tolerate repeated bending in racks and work-area outlets.

• Internal Nylon Spline

  • Separates the four twisted pairs along the full length
  • Reduces near-end crosstalk between adjacent pairs

• Gold-Plated RJ45 Contacts
  Gold plating lowers contact resistance and resists oxidation in humid equipment rooms.

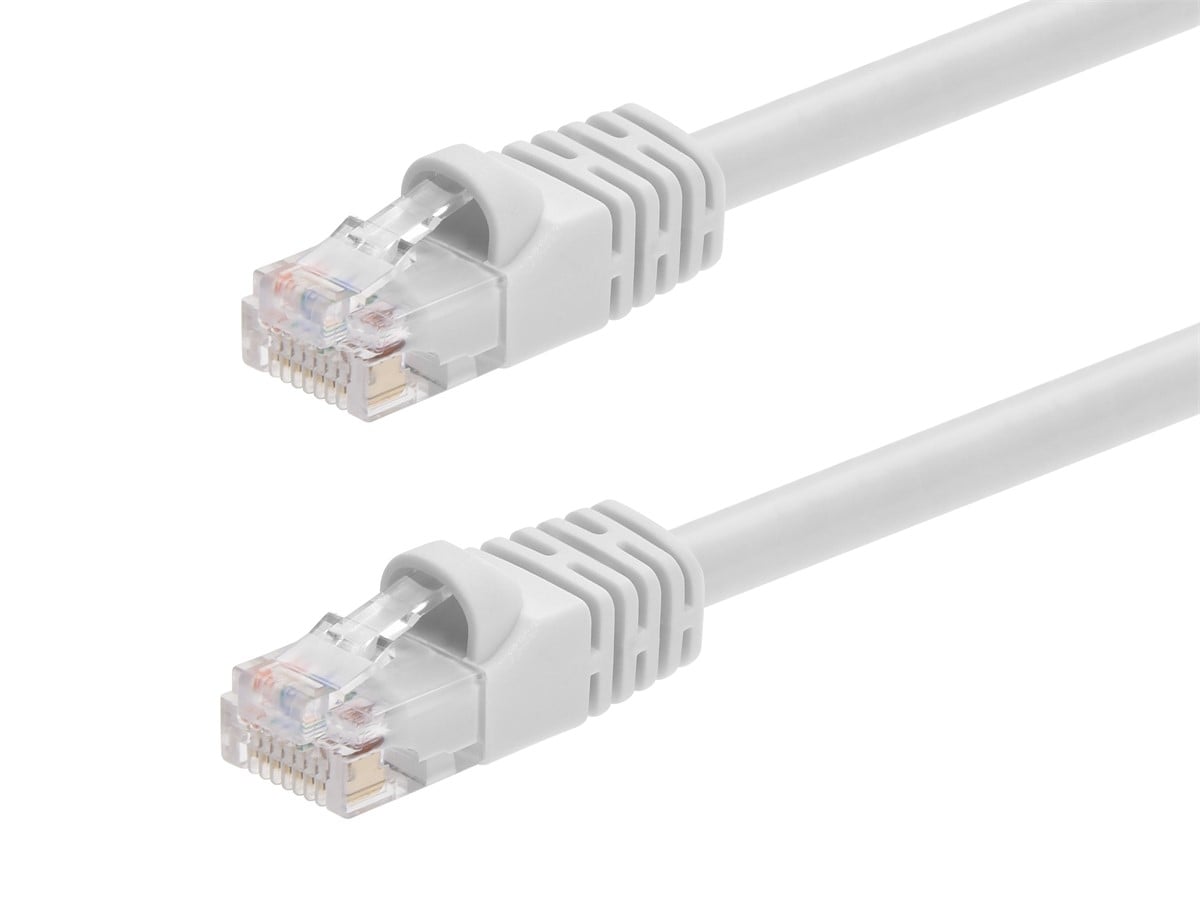

• Snagless Moulded Boot
  The boot shields the release tab from snagging when cables are pulled through tight bundles.

• T568B Wiring Scheme
  The pinout matches common patch panel and keystone termination standards and works with T568A links.

• One Metre Working Length
  The 1m span covers adjacent rack units and short panel-to-switch jumps without excess slack.

• PoE-Ready Construction
  The 24 AWG conductors support IEEE 802.3af and 802.3at power delivery to access points and cameras.

Specifications

What’s in the Box

• 1 m Cat 6 UTP patch cord, RJ45 male to RJ45 male

Why Choose This Cat 6 Lead

• The 550MHz rating gives margin above standard 250MHz Category 6 requirements.

• Stranded 24 AWG copper survives repeated moves in shared racks.

• The nylon spline limits crosstalk in dense patch fields.

• Snagless boots speed up cable tracing and replacement.

• Gold contacts maintain low resistance in humid cabinets.
