AICO Cat6 Patch Cord 3m UTP 24AWG Stranded Copper RJ45 Snagless

Unshielded Category 6 Modular Lead

The AICO Cat6 patch cord links switches, patch panels and work area outlets over a 3m unshielded twisted pair assembly. Four twisted pairs of 24AWG stranded bare copper carry Gigabit Ethernet at 250 MHz. Moulded strain-relief boots protect the RJ45 latch during dense patching.

Each conductor measures 24AWG (7/0.2) and sits under 0.153mm polyolefin insulation. The 0.453mm PVC jacket is rated to 75°C and keeps the assembly flexible through repeated handling. HDPE insulation holds pair geometry stable, which preserves crosstalk margins across the 3m run.

RJ45 8P8C plugs carry 50-micron gold plating on the contacts. The snagless boot shields the clip during pulls through cable managers and behind desks. Colour options include grey, blue, green, red and yellow, so technicians can code VLANs or departments at the outlet.

The assembly is verified to TIA/EIA-568-B.2-1 and meets ISO/IEC 11801 stranded-wire transmission requirements. UL, CSA and ETL listings cover the finished product. Conductors use 100% copper rather than copper-clad aluminium, which keeps DC resistance low under PoE loads. Each unit ships individually bagged for high-density blade installations.

Key Features

• 24AWG Stranded Bare Copper
  Seven-strand 7/0.2 conductors survive repeated flexing at the plug exit.

• 250 MHz Category 6 Channel
  Four unshielded twisted pairs support 10/100/1000 Mbps links with headroom for PoE.

• Connector Construction

  • 50-micron gold plating on RJ45 8P8C contacts
  • Snagless moulded boot shields the release clip
  • Strain relief limits conductor movement at the termination

• Flexible 75°C PVC Jacket
  The 0.453mm sheath bends around tight cabinet corners without cracking.

• Standards Verification
  Tested to TIA/EIA-568-B.2-1 and ISO/IEC 11801 stranded-wire limits.

• Five Jacket Colours
  Grey, blue, green, red and yellow stock allows visual port coding.

Specifications

What’s in the Box

• 1 x 3m AICO Category 6 UTP patch lead, individually bagged

Why Choose the AICO Cat6 Lead

• Bare copper conductors avoid the heat and voltage drop that CCA wire introduces under PoE.

• The snagless boot reduces latch breakage during frequent moves in shared cabinets.

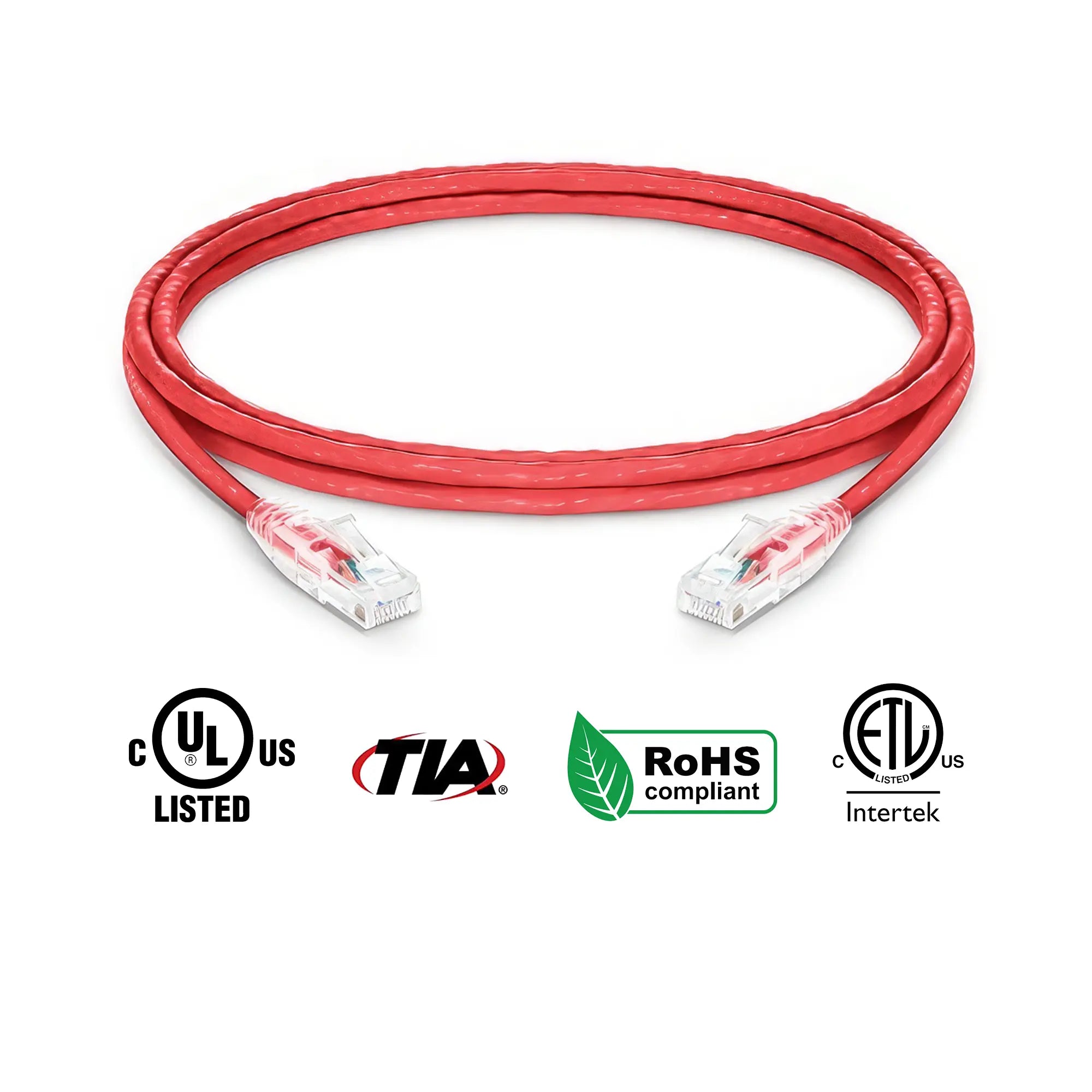

• Third-party UL, CSA and ETL listings simplify procurement sign-off on structured cabling jobs.

• Stock colours let technicians separate voice, data and camera runs at the patch panel.

• The 3m span reaches across a desk cluster without leaving excess coil in the pathway.
