8 Core OM3 Outdoor Multimode Fiber Cable, 50/125µm Loose Tube, Per Meter

Outdoor Loose Tube Multimode Cable

The 8 core OM3 fiber cable is a loose tube outdoor construction that carries eight multimode fibers in a single central tube. It supports 10GBASE-SR to 300 m and 1000BASE-SX to 900 m. The cable sells per meter, so installers order the exact run length for a backbone or campus link.

Each fiber uses a 50 µm core and 125 µm cladding, with a 250 µm acrylate coating. The OM3 grade delivers at least 2000 MHz·km effective modal bandwidth at 850 nm. Maximum attenuation sits at 3.0 dB/km at 850 nm and 1.0 dB/km at 1300 nm. TIA-598-D color coding identifies the eight fibers as blue, orange, green, brown, gray, white, red and black.

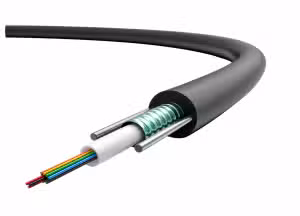

The central loose tube measures 3.5 mm and carries thixotropic jelly for water blocking. Aramid yarns provide tensile strength, and the black polyethylene outer jacket brings the cable to 8.0 mm nominal diameter. The jacket resists UV exposure for aerial and duct routes. Crush resistance reaches 220 N/cm, and the cable weighs approximately 49 kg/km.

Minimum bend radius is 15x outer diameter during installation and 10x outer diameter in operation. Maximum tensile load is 2670 N during pulls and 800 N once installed. Operating temperature spans -40 °C to +70 °C, with installation rated from -30 °C to +60 °C. The construction supports direct burial in prepared trenches, duct installation and lashed aerial spans.

Key Features

• Eight OM3 Fibers in One Tube
  A central loose tube holds eight 50/125 µm multimode fibers with TIA-598-D color coding.

• Laser-Optimised Bandwidth

  • At least 2000 MHz·km effective modal bandwidth at 850 nm
  • 1500 MHz·km overfilled launch bandwidth at 850 nm
  • 500 MHz·km overfilled launch bandwidth at 1300 nm

• Water-Blocked Loose Tube
  Thixotropic jelly and water-blocking tape stop moisture migration along the core.

• Aramid Yarn Strength Members
  The yarn layer carries pull tension without loading the optical fibers.

• UV-Stable PE Outer Jacket
  The black polyethylene sheath suits outdoor exposure on trays, ducts and aerial spans.

• Per-Meter Supply
  The cable ships cut to the ordered length, which removes surplus from long outdoor runs.

Specifications

What’s in the Box

• 8 core OM3 outdoor multimode fiber cable, cut to the ordered length

Why Choose This Outdoor Fiber Run

• The loose tube design isolates the fibers from tensile and crush loads on long pulls.

• OM3 bandwidth covers 10G to 300 m, which suits building backbones and campus links.

• Water-blocking materials protect the fiber cavity in wet ducts and buried trenches.

• The UV-stable PE jacket holds up on aerial spans and exposed tray routes.

• Per-meter ordering avoids leftover drum stock on short outdoor connections.
