OEM Rawlplug Rawlbolt M10 Loose Bolt Anchor
Original price was: KSh 105.00.KSh 84.00Current price is: KSh 84.00. ex VAT
OEM Rawlplug Rawlbolt M10 Loose Bolt Anchor
| Feature | Specification |
|---|---|
| Thread Size | M10 |
| Drill Diameter | 16 mm |
| Material | Zinc Plated Steel |
| Type | Loose Bolt Anchor |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

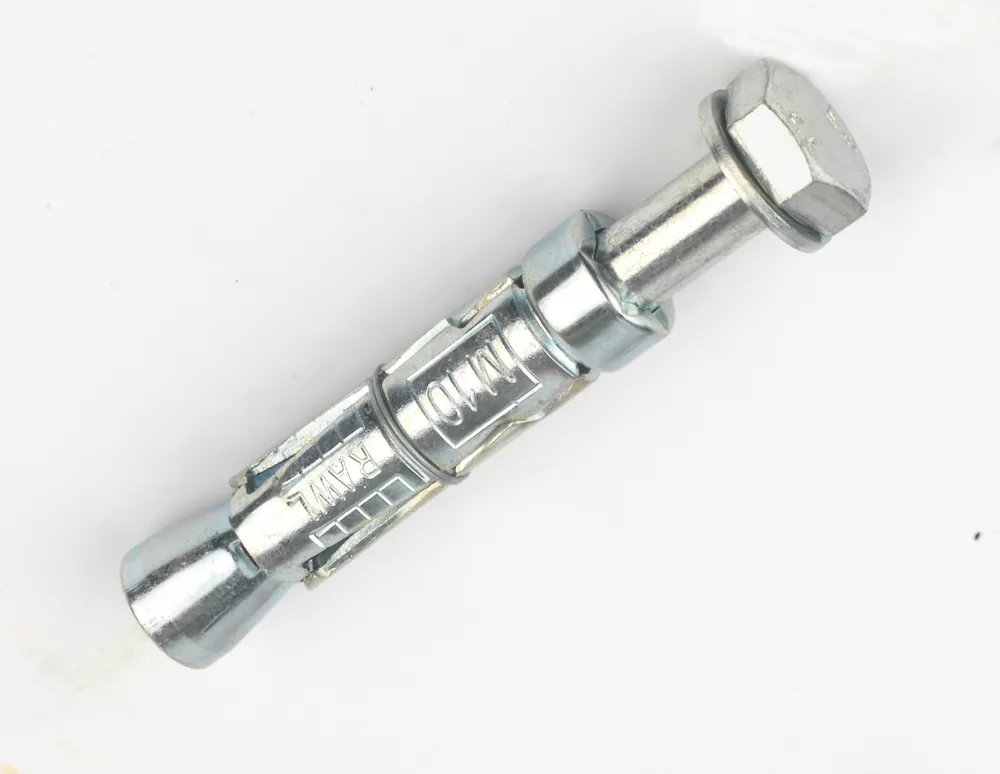

Rawlbolt M10 Anchor
The OEM Rawlbolt M10 Anchor functions as a high-performance mechanical expansion fastener for heavy-duty applications in solid masonry and concrete. This three-segment expansion shield provides uniform load distribution within the substrate. It maintains structural integrity in both cracked and non-cracked concrete environments. The cold-formed carbon steel construction handles significant tensile and shear forces. This loose bolt variant facilitates flush mounting of fixtures before the bolt insertion process. It simplifies the installation of heavy machinery or structural steel components by allowing the fixture to be positioned first. Engineers utilize these fasteners for critical load paths requiring long-term stability.
The internal expansion mechanism relies on a precision-engineered wedge. As the installer applies torque, the wedge pulls into the shield segments. These segments press firmly against the walls of the pre-drilled hole. This creates a mechanical interlock that resists withdrawal forces. The ferrule features a collapse zone. This design element ensures the fixture clamps tightly against the base material. Zinc plating protects the assembly from corrosion in dry, indoor environments. The M10 thread size provides a balance between physical footprint and load capacity. This specific model requires a 16mm masonry drill bit for correct installation. Proper hole cleaning remains essential for maximum friction performance.
Key Features
Tri-Segment Expansion Shield
The three-piece sleeve design maximizes surface contact for superior load distribution in solid masonry.Mechanical Fastening Performance
- High-grade carbon steel body.
- Zinc plated finish for indoor corrosion resistance.
- Integrated collapse zone for tight fixture clamping.
Loose Bolt Configuration
The removable bolt design allows for fixture placement prior to anchor insertion for improved alignment.
Specifications
| Feature | Specification |
|---|---|
| Thread Diameter | M10 |
| Drill Hole Diameter | 16 mm |
| Minimum Hole Depth | 65 mm |
| Anchor Length | 60 mm |
| Material | Zinc Plated Carbon Steel |
| Installation Torque | 27 Nm |
What’s in the Box
OEM M10 Loose Bolt Shield Anchor
Expansion Wedge Assembly
Washer and Hex Bolt
Why Choose Rawlbolt M10
The mechanical interlock provides reliable resistance against high-tension loads in structural applications.
Loose bolt geometry prevents tripping hazards by removing protruding studs when fixtures are uninstalled.
The three-way expansion sleeve accommodates minor inconsistencies in drill hole geometry without compromising grip.
Zinc-coated steel components resist oxidation during the service life of internal structural assemblies.
