12 Port SC/UPC Duplex OS2 Fiber Distribution Panel with Pigtails
Limited Stock
12 Port SC/UPC Duplex OS2 Fiber Distribution Panel with Pigtails
| Fibre count | 12 |
| Fibre type | OS2 single-mode, 9/125 µm |
| Adapter type | SC duplex, UPC |
| Adapter quantity | 6 duplex adapters |
| Pigtail length | 2 m |
| Insertion loss | ≤ 0.2 dB |
| Return loss | ≥ 50 dB (UPC) |
| Dimensions (H x W x D) | 44.5 x 485 x 285 mm (1U) |
| Rack standard | 19-inch |
| Operating temperature | -40 °C to +85 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

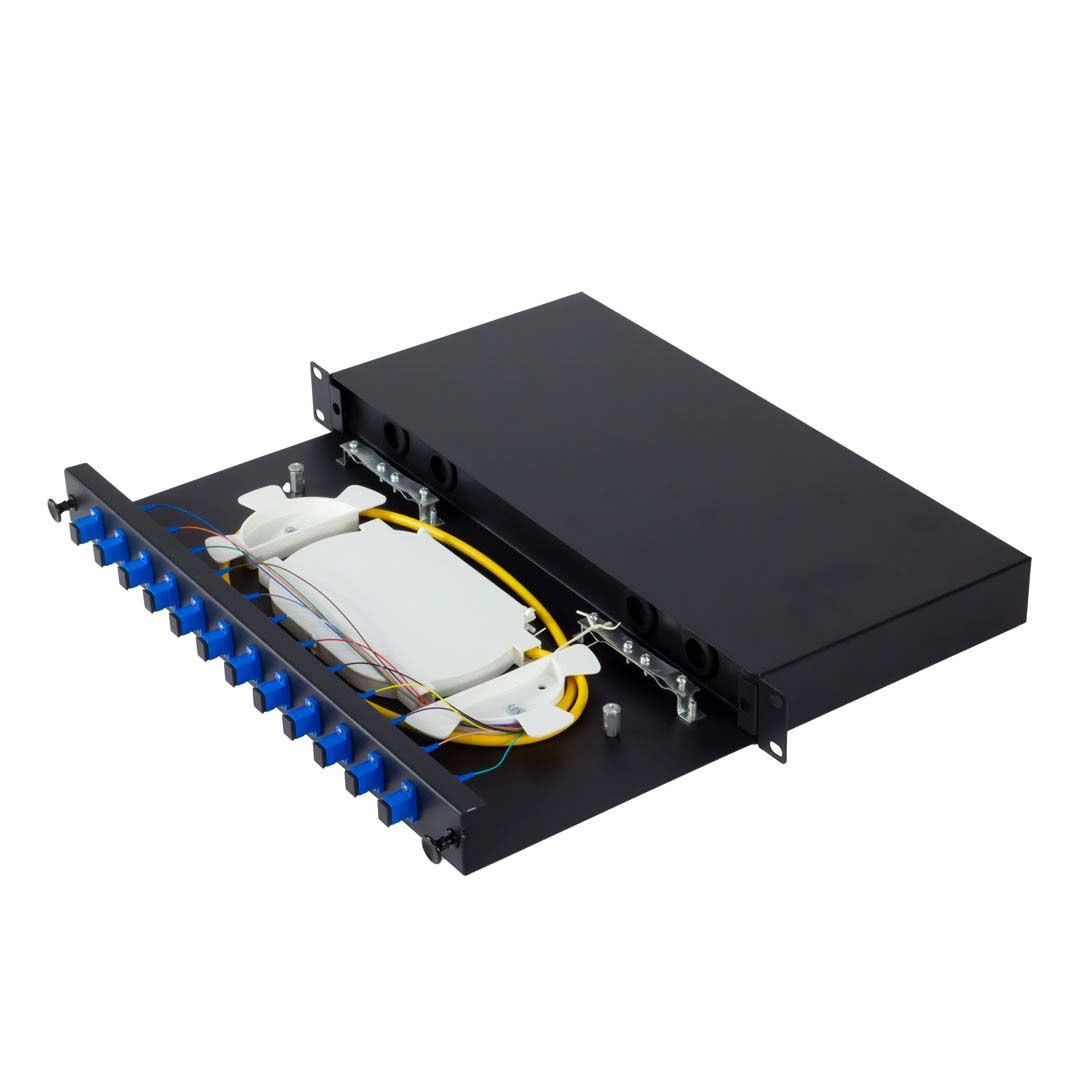

Rack-Mount Singlemode Termination Panel
The 12 port SC/UPC duplex panel terminates twelve OS2 single-mode fibres on six duplex adapters. It ships pre-loaded with colour-coded pigtails for fusion splicing in a 19-inch rack. The 1U chassis fits standard distribution frames and wall-mount cabinets.
The steel housing measures 44.5 x 485 x 285 mm and carries a sliding splice tray rated for twelve fusion splices. Protective tubes route fibres through the tray and hold bend radius above 37.5 mm. Two cable entry points accept incoming loose-tube or tight-buffered cable.
Ceramic adapter inserts deliver insertion loss of 0.2 dB or less and return loss of 50 dB or better at UPC polish. The assembly operates from -40 to +85 °C with relative humidity up to 95%. Blue adapter housings identify the single-mode UPC interface at a glance.
Key Features
Six SC Duplex Adapters
Six duplex couplers present twelve SC/UPC ports on the front faceplate.Twelve Pre-Loaded OS2 Pigtails

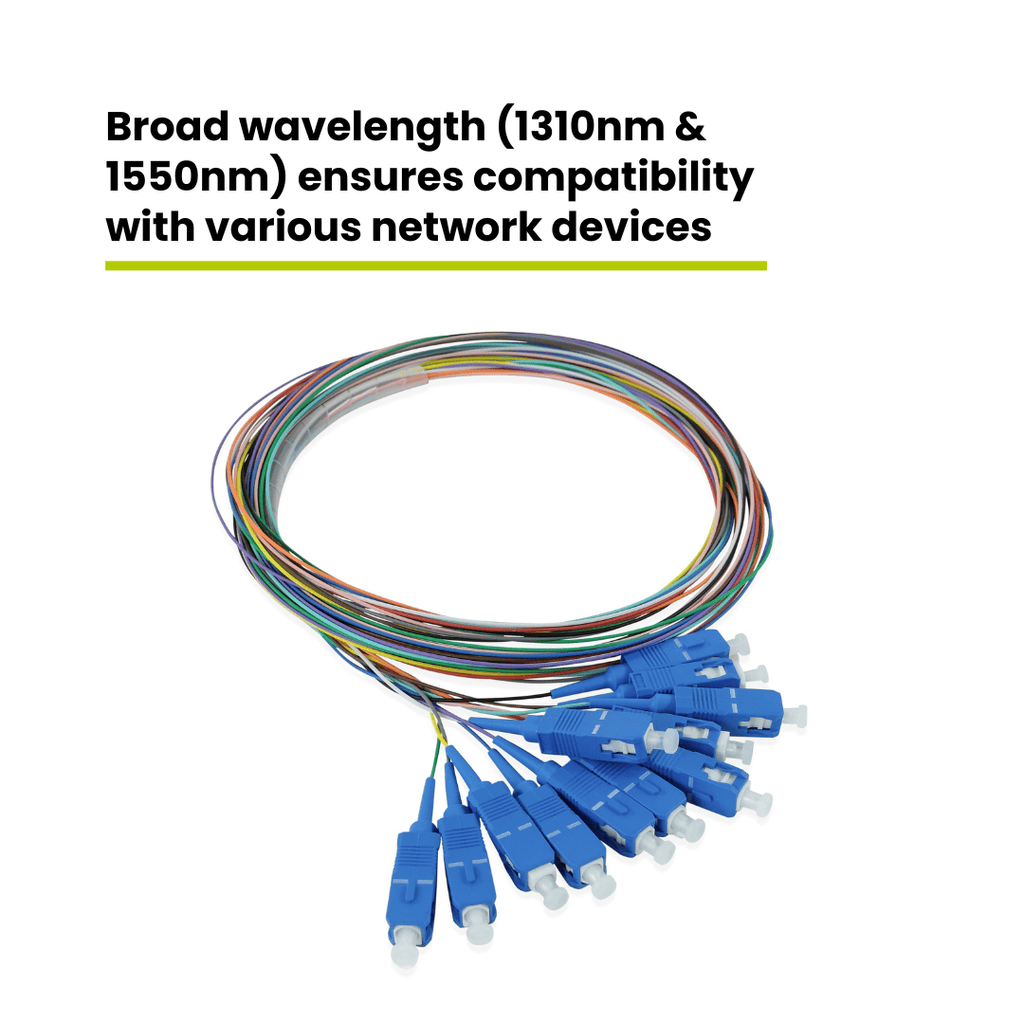

Colour-coded 900 µm pigtails arrive factory-terminated for direct fusion splicing.Sliding Splice Tray
- Holds up to twelve fusion splices with protective sleeves
- Maintains fibre bend radius above 37.5 mm
- Extends forward for access without removing the chassis
Ceramic Alignment Sleeves
Zirconia ceramic sleeves centre the ferrules and hold insertion loss under 0.2 dB.19-Inch 1U Steel Housing
Cold-rolled steel construction measures 44.5 x 485 x 285 mm and mounts in one rack unit.Dual Cable Entry
Two rear entry ports accept loose-tube and tight-buffered cable with strain relief clamps.
Specifications
| Feature | Specification |
|---|---|
| Fibre count | 12 |
| Fibre type | OS2 single-mode, 9/125 µm |
| Adapter type | SC duplex, UPC |
| Adapter quantity | 6 duplex adapters (12 ports) |
| Adapter housing colour | Blue |
| Alignment sleeve | Ceramic (zirconia) |
| Pigtail length | 2 m |
| Pigtail fibre | 900 µm tight-buffered, colour-coded |
| Insertion loss | ≤ 0.2 dB |
| Return loss | ≥ 50 dB (UPC) |
| Operating wavelength | 1310 nm, 1550 nm |
| Splice capacity | 12 fusion splices |
| Bend radius | ≥ 37.5 mm |
| Housing material | Cold-rolled steel |
| Dimensions (H x W x D) | 44.5 x 485 x 285 mm (1U) |
| Rack standard | 19-inch |
| Operating temperature | -40 °C to +85 °C |
| Relative humidity | ≤ 95% at +40 °C |
What’s in the Box
1U fibre distribution panel
Six SC duplex UPC adapters
Twelve OS2 pigtails, 2 m
Sliding splice tray with covers
Mounting brackets and cable ties
Installation guide
Why Choose This Distribution Panel
Factory-terminated pigtails cut field termination time to fusion splicing only.
The 1U form factor fits dense rack layouts without consuming extra vertical space.
Ceramic sleeves hold stable optical performance across repeated mating cycles.
A sliding tray exposes the splice area for maintenance in live cabinets.
Cold-rolled steel housing protects fibres in central office and enterprise frames.
Colour-coded pigtails simplify port mapping during installation and fault tracing.
Caroline Nyambura (verified owner) –
Rack mounted straight, no issues on the patch panel.
Isaac Mutua (verified owner) –
Pigtails spliced fine, adapters fit snug.
Moses Omondi (verified owner) –
Came with all 24 pigtails, colour coding helps during termination.
