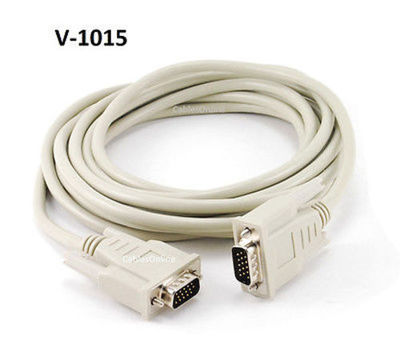

VGA Cable 5M SVGA HD15 Male to Male Double Shielded with Dual Ferrite Cores
Original price was: KSh 800.00.KSh 600.00Current price is: KSh 600.00. ex VAT
VGA Cable 5M SVGA HD15 Male to Male Double Shielded with Dual Ferrite Cores
| Connector type | VGA HD15 male to male |
| Pin count | 15 pins, all wired |
| Cable length | 5 m |
| Conductor gauge | 28 AWG |
| Construction | 3 coaxial plus 7 control lines |
| Shielding | Foil and braid, double shielded |
| Ferrite cores | 2, one at each connector |
| Maximum resolution | 1920 x 1080 and 1920 x 1200 |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Long-Run Analog Display Lead
The VGA Cable 5M links a computer, projector or KVM switch to a display across a five-metre run. HD15 male connectors sit at both ends with thumbscrews for a locked fit. The assembly carries analog RGBHV video at resolutions up to 1920 x 1080 and 1920 x 1200.
Three individually shielded coaxial lines carry the red, green and blue signals. Seven control lines handle HSYNC, VSYNC and DDC2 data. All 15 pins are wired, so the source can read the monitor’s extended display identification data.
Ferrite cores sit at each connector and suppress high-frequency interference on the long run. Foil and braid shielding covers the conductor bundle. The 28 AWG conductors balance flexibility against signal loss. Operating temperature spans -10°C to 60°C for indoor cabinets and desks.
Key Features
HD15 Male to Male
Both ends use 15-pin high-density connectors with thumbscrews for a secure mechanical fit.Full HD Analog Video
The cable passes 1920 x 1080 and 1920 x 1200 signals to LCD and LED monitors.3-Coax and 7-Line Construction
- Three coaxial lines carry the RGB channels with individual shields.
- Seven control lines route sync and DDC2 data.
- All 15 pins are connected for full EDID support.
Dual Ferrite Cores
Cores at each connector suppress electromagnetic interference on the five-metre span.Double Shielding
Aluminium foil and braid layers limit noise pickup from nearby power and network cabling.28 AWG Conductors
The gauge keeps the cable flexible while holding signal integrity across the run.Five-Metre Length
The 5 m span reaches between a floor-level PC and a wall-mounted display.
Specifications
| Feature | Specification |
|---|---|
| Connector type | VGA HD15 male to VGA HD15 male |
| Pin count | 15 pins, all wired |
| Cable length | 5 m |
| Conductor gauge | 28 AWG |
| Construction | 3 coaxial lines plus 7 control lines |
| Shielding | Aluminium foil and braid, double shielded |
| Ferrite cores | 2, one at each connector |
| Maximum resolution | 1920 x 1080 and 1920 x 1200 |
| Supported modes | 800 x 600, 1024 x 768, 1600 x 1200, 1080p |
| DDC support | DDC2 and EDID |
| Outer diameter | Approximately 8.2 mm |
| Jacket material | PVC |
| Colour | Black |
| Connector plating | Nickel-plated shell |
| Operating temperature | -10°C to 60°C |
| Storage temperature | -20°C to 70°C |
| Compliance | RoHS |
What’s in the Box
5 m VGA HD15 male to male cable
Why Choose This Analog Lead
The five-metre span reaches wall-mounted displays from a floor-level tower.
Ferrite cores and double shielding keep the image stable beside power cables.
All 15 pins wired preserve EDID handshakes with projectors and older monitors.
Thumbscrews prevent accidental disconnection in shared meeting rooms.
The 28 AWG build stays flexible enough to route through desk grommets.
