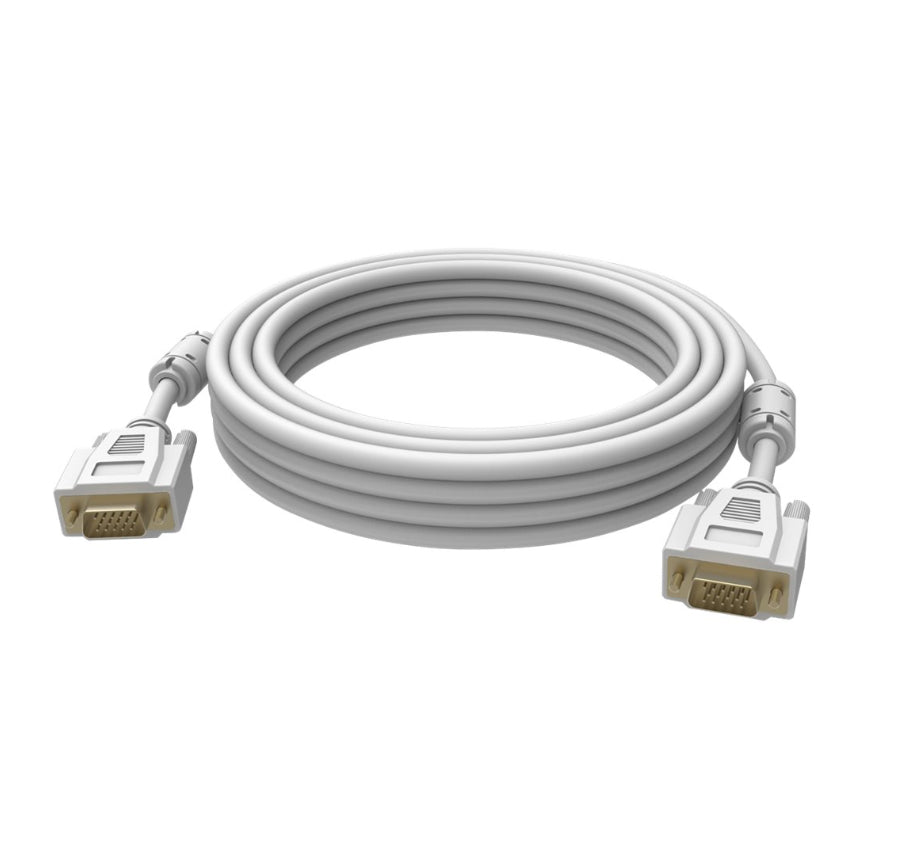

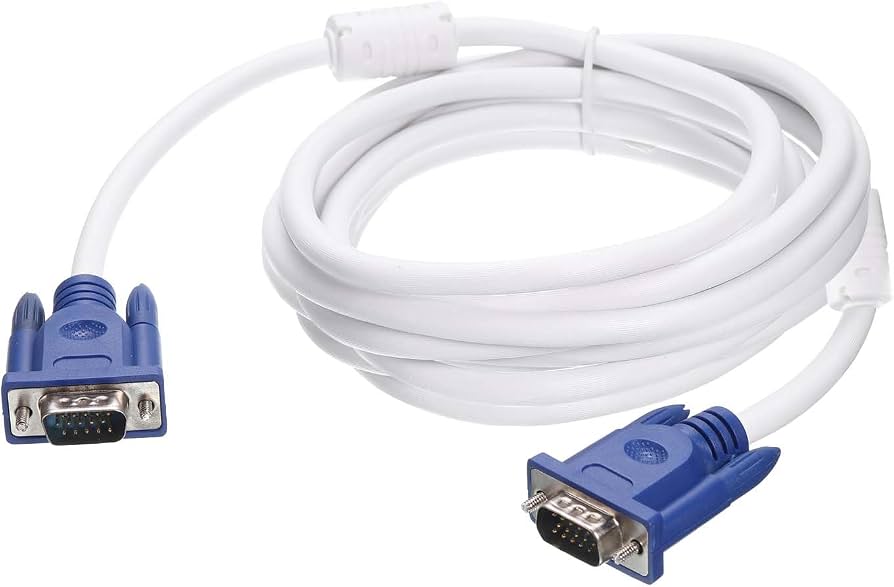

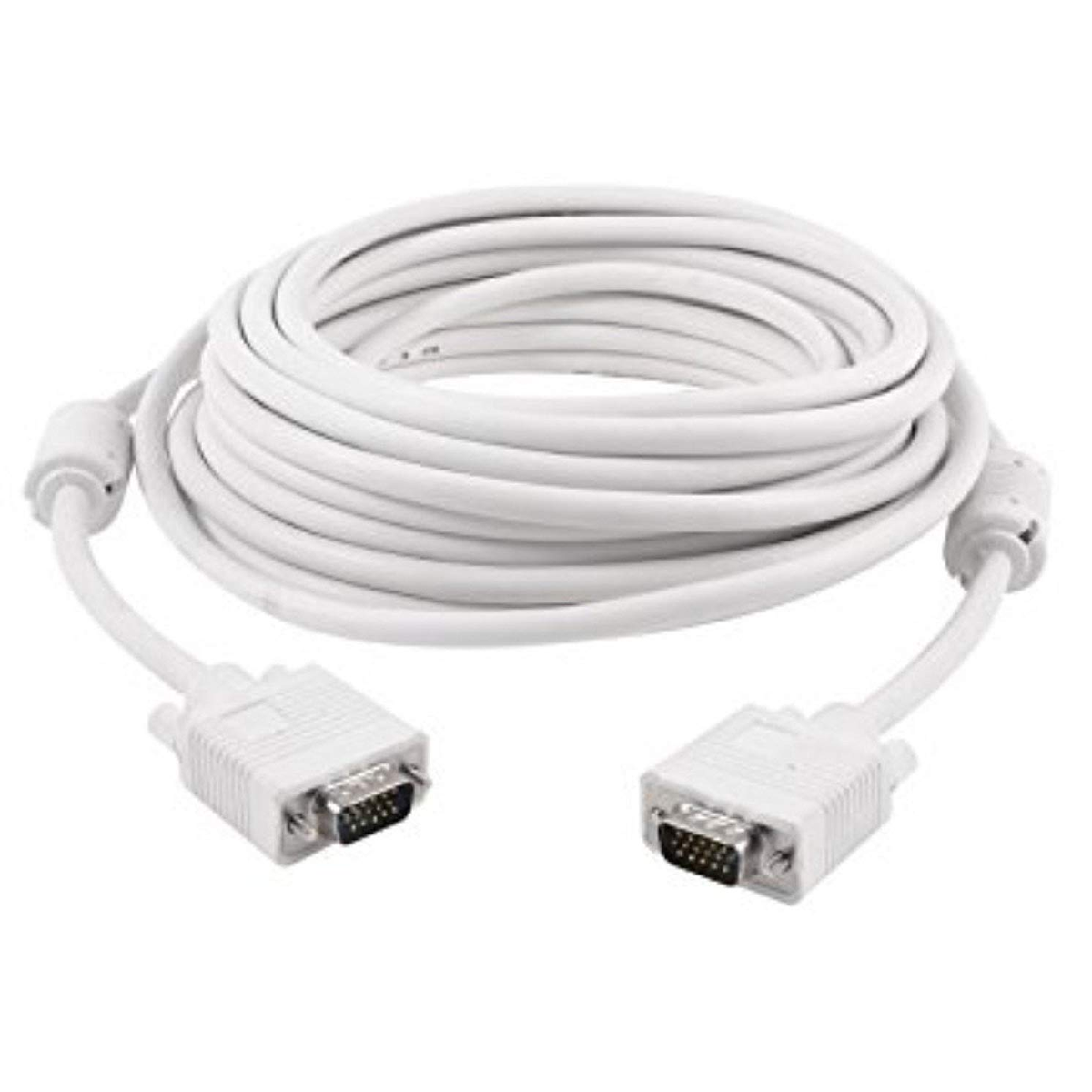

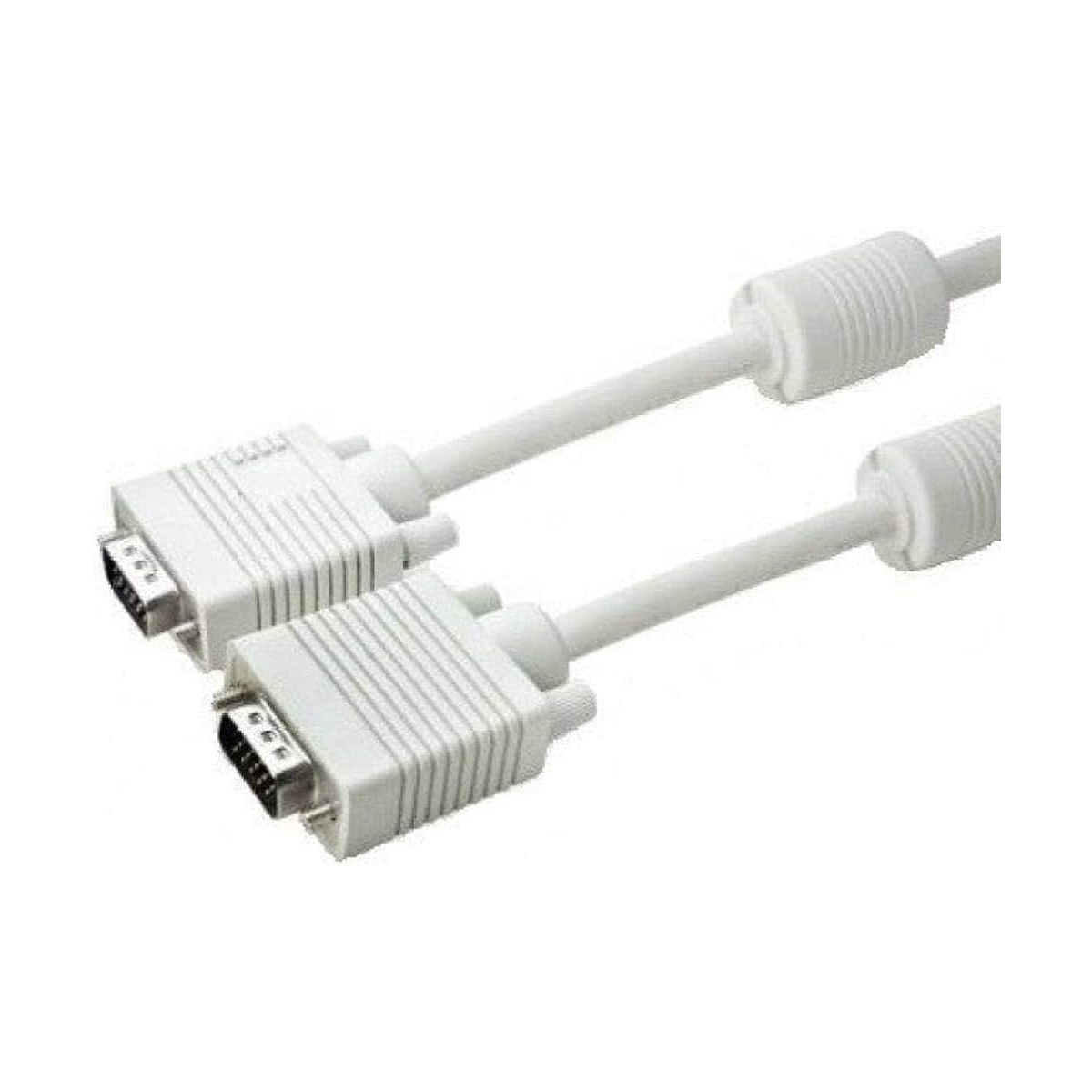

OEM VGA Cable 5M White Male-to-Male

OEM White VGA Lead

The OEM VGA Cable 5M provides a reliable analog interface for connecting PC workstations to CRT or LCD monitors. This five-meter white cord utilizes a standard 15-pin D-subminiature layout to transmit high-definition video signals. It offers a cost-effective solution for legacy infrastructure maintenance and new office deployments. The cable facilitates RGBHV signal transmission with minimal attenuation across its entire span. Network administrators deploy these links in server rooms and office environments where longer reach is necessary for hardware connectivity.

The internal wiring follows the standard VGA pinout configuration. It includes dedicated lines for Red, Green, and Blue video signals. Separate horizontal and vertical sync lines ensure stable image positioning on the display. Each signal path is grounded to prevent cross-talk between the color channels. This grounding architecture maintains color accuracy over the five-meter run. The 28 AWG conductors provide sufficient thickness to reduce resistance without compromising cable flexibility. Additionally, the molded strain relief prevents damage to the internal wires during installation in tight spaces.

Shielding remains a critical factor for analog signals. This lead features an aluminum foil wrap and a tinned copper braid. These layers mitigate electromagnetic interference (EMI) and radio frequency interference (RFI). Consequently, the display remains free from ghosting or flickering caused by nearby electrical equipment or power cables. The 75-ohm impedance matching ensures that the signal remains consistent from the source to the output device. However, users should ensure the source hardware supports the desired resolution for optimal results.

Key Features

• Connector Construction
  The interface uses corrosion-resistant nickel-plated shells to maintain high conductivity and physical durability.

• Signal Integrity Measures

  • Double shielding with foil and braid minimizes external signal noise.
  • Ferrite cores (where applicable) further suppress high-frequency interference.

• Resolution Support
  This hardware supports standard VGA, SVGA, and UXGA resolutions up to 1920 x 1200.

• Mechanical Security

  • Integrated thumb screws with M3 threads secure the connector to the port.
  • PVC outer jacket protects the internal copper conductors from environmental wear.

Specifications

What’s in the Box

• 1 x OEM 5M White VGA Male-to-Male Cable

Why Choose the White VGA Lead

• The high-density shielding prevents EMI/RFI issues common in high-density server racks and industrial environments.

• A white PVC jacket allows for discrete cable management against neutral-colored office walls and ceilings.

• The 28 AWG construction ensures reliable signal delivery over a five-meter distance without significant voltage drop.
