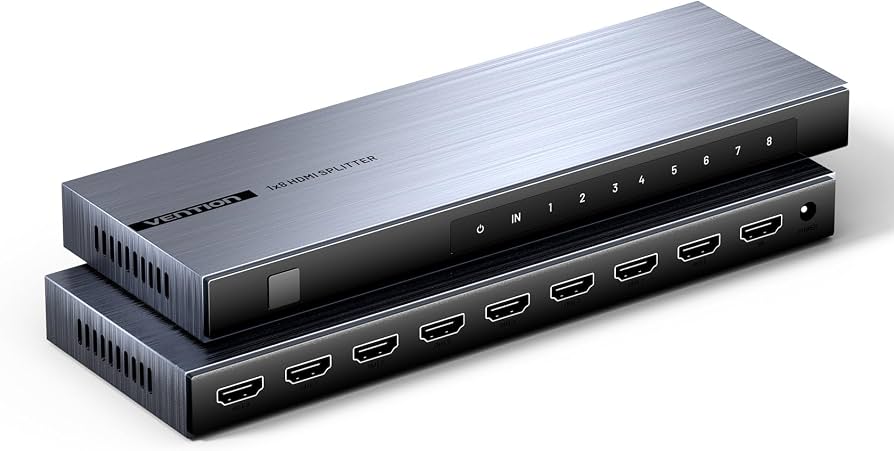

Vention AKQBO 4K 1×8 HDMI Splitter Black Aluminum Alloy

Eight-Display HDMI Distribution Unit

The Vention AKQBO HDMI Splitter mirrors one HDMI feed to eight outputs and keeps every screen on the same frame. Each port carries identical video and audio, so signage walls and conference displays stay synchronised. The chassis sits in racks, behind panels or inside AV cabinets.

One HDMI Type-A female input feeds eight HDMI Type-A female outputs. A built-in amplifier restores the TMDS signal, which carries 4K at 30 Hz across 10 m and 1080p at 60 Hz across 15 m of certified cable. Audio passes through as Dolby TrueHD or DTS-HD Master Audio without downmix.

The aluminum alloy and ABS body spreads heat during long duty cycles. A 5 V/2 A DC adapter powers the board, so the source device supplies no current. Three-tier cascading grows the port count past eight, and LEDs report power and active-port state at a glance.

Key Features

• Eight Simultaneous Outputs
  One input reaches eight HDMI displays with identical timing and no frame tearing.

• Built-in Signal Amplifier
  The internal equaliser rebuilds the TMDS clock and data pairs before each output stage.

• Cascadable Architecture

  • Chain three tiers of units to reach beyond eight screens
  • Mix with a one-to-two distributor for uneven port counts

• 4K30 and 1080p60 Support
  Handles 3840 × 2160 at 30 Hz and 1920 × 1080 at 60 Hz with 8-bit colour.

• Audio Passthrough
  Carries Dolby TrueHD and DTS-HD Master Audio streams to every downstream display.

• Aluminum Alloy Housing
  The metal shell conducts heat away from the PCB and resists flex in rack installs.

• Plug-and-Play Operation
  The unit needs no drivers, EDID configuration or host software to start distributing.

• LED Status Indicators
  Front LEDs show power state and which output ports currently carry an active sink.

Specifications

What’s in the Box

• Vention 1×8 HDMI splitter unit

• 5 V / 2 A DC power adapter

• User manual

Why Choose the Vention 1×8 Splitter

• The 8-port distributor removes the need for a matrix switcher when every screen shows the same source.

• Amplified outputs hold signal integrity on long cable runs in large rooms.

• Cascading support lets AV teams scale a multi-display distributor without replacing hardware.

• The metal enclosure dissipates heat in enclosed cabinets and rack shelves.

• Passive EDID handling keeps the source locked to a stable display profile.

• Compact 265 mm footprint fits shallow AV drawers and wall boxes.
