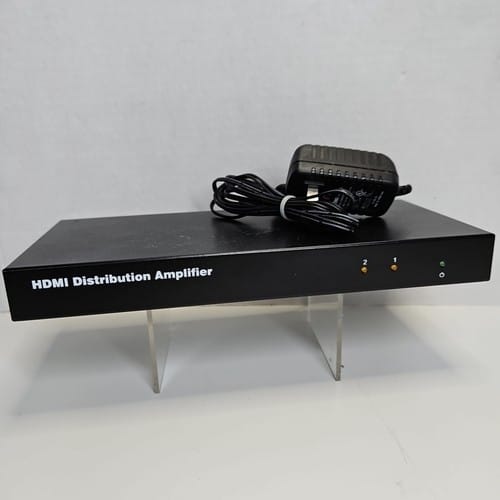

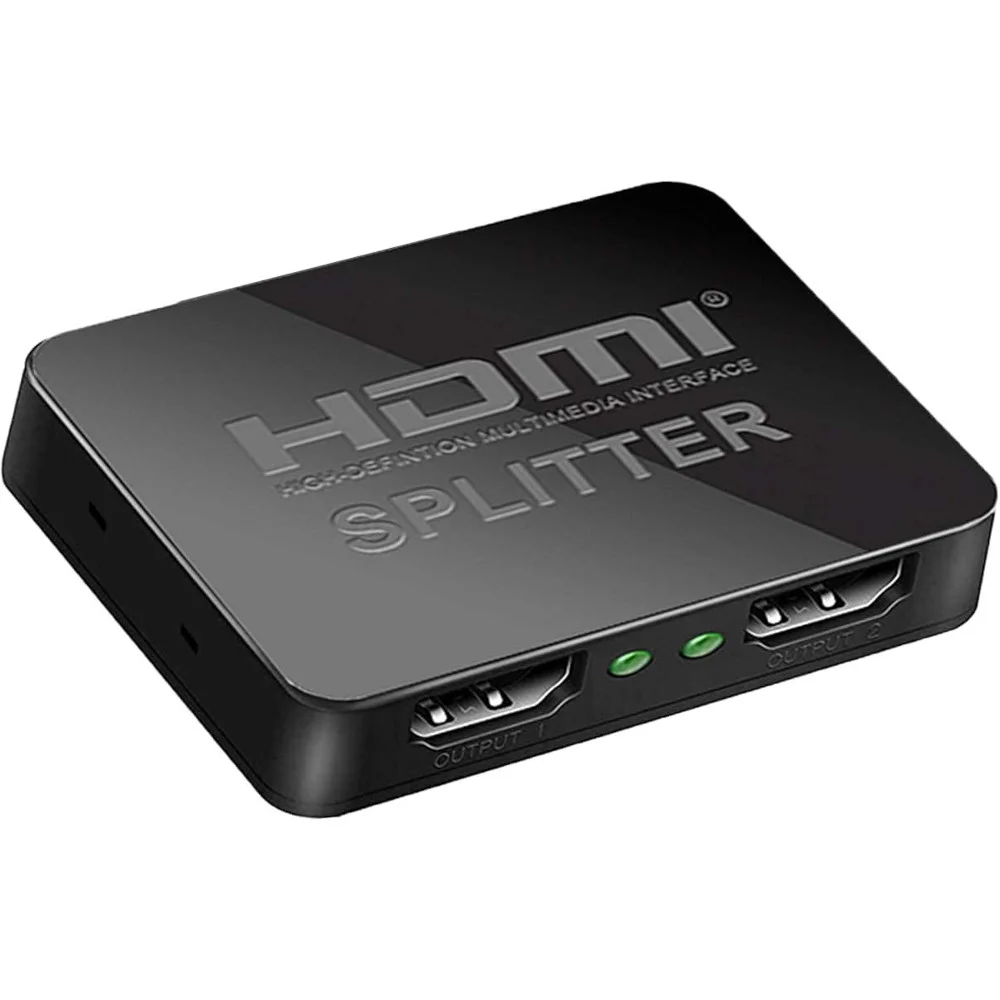

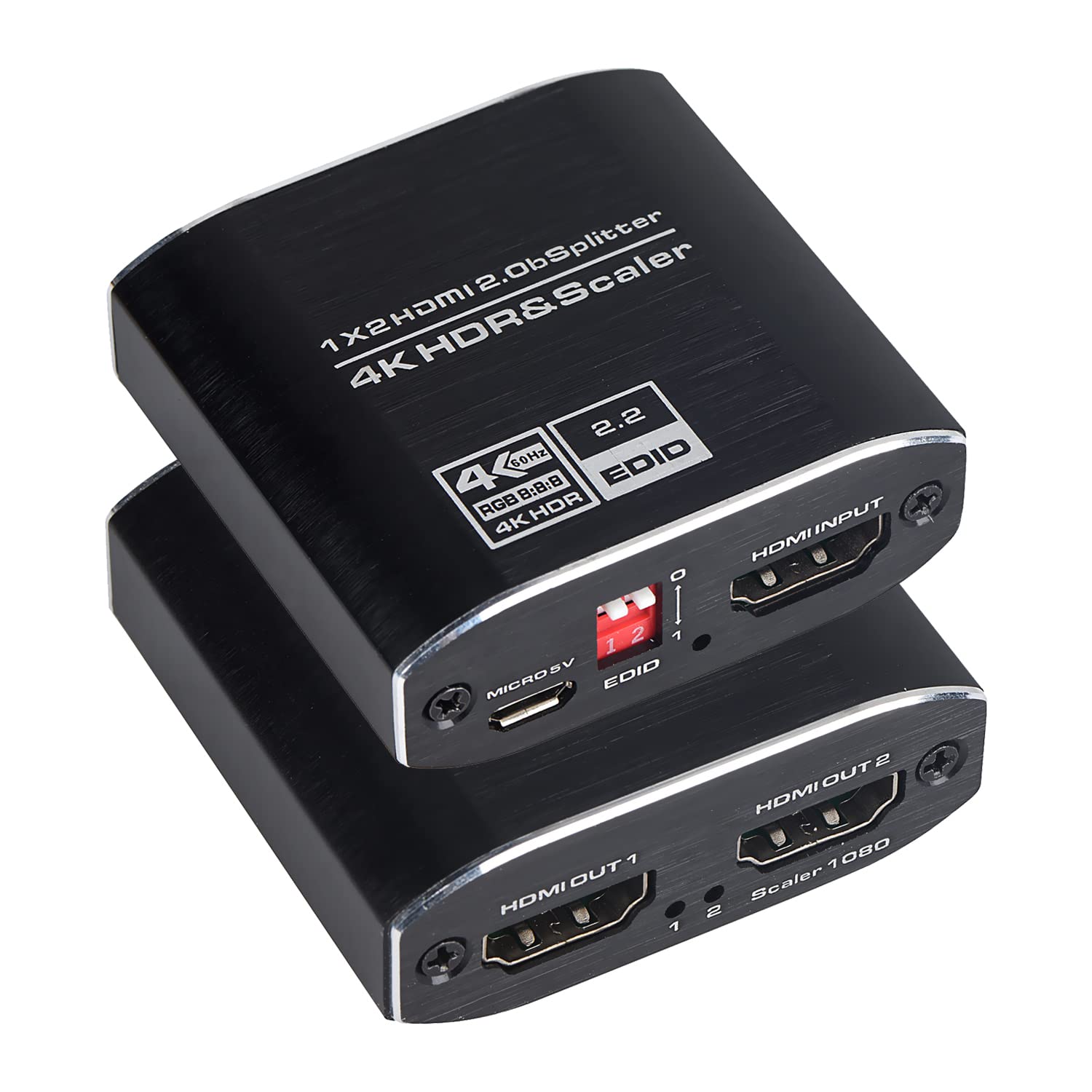

OEM 2-Port HDMI Splitter 4K 1×2 Active Distribution Amp

OEM 2-Port Splitter

The OEM 2-Port HDMI Splitter distributes a single HDMI source signal to two synchronized outputs. This active hardware solution replicates audio and video content without signal degradation across multiple displays. It supports high-definition resolutions including 4K at 30Hz and 1080p at 60Hz. Integrated signal amplification enables longer cable runs by regenerating the digital signal before output.

Key Features

• Signal Distribution
  The unit splits one Ultra HD HDMI input into two identical Ultra HD HDMI outputs.

• Resolution Support

  • 4K @ 30Hz resolution
  • 1080p Full HD and 3D video
  • Deep color 30bit and 36bit

• HDCP Compliance
  The device adheres to HDCP 1.4 standards to ensure handshake compatibility with protected content.

• Audio Format Support

  • DTS-HD and Dolby-TrueHD
  • LPCM7.1 and DTS
  • Dolby-AC3 and DSD

• Active Amplification
  An internal chipset boosts the signal to maintain integrity over extended copper HDMI cables.

The hardware utilizes an active power source to maintain bitstream integrity. This prevents the flickering or signal loss common in passive splitters. The internal circuitry manages Extended Display Identification Data (EDID) automatically. It detects the lowest common resolution between connected monitors to ensure both screens display an image. This feature eliminates manual configuration requirements during installation. The metal chassis provides electromagnetic interference (EMI) shielding. It also serves as a heat sink for the internal processing chips.

Installation requires no software drivers. The plug-and-play architecture works with various sources including workstations, media players, and surveillance NVRs. The front panel includes LED indicators for power and link status. These lights allow for rapid troubleshooting of physical layer connectivity. The rear panel houses the gold-plated HDMI ports. Gold plating reduces contact resistance and prevents oxidation over time.

Signal timing remains precise across both output channels. The splitter minimizes jitter to prevent pixelation on high-resolution displays. It supports various color spaces including RGB, YCbCr 4:4:4, and YCbCr 4:2:2. This compatibility ensures accurate color reproduction for professional monitoring. The unit handles uncompressed audio formats to prevent sound degradation. However, users should ensure all connected cables meet the required HDMI version for the desired resolution.

The physical dimensions allow for discreet mounting behind displays or inside equipment racks. The external power adapter reduces internal heat buildup. Additionally, this design choice extends the MTBF (Mean Time Between Failures) for the internal capacitors. The splitter operates within a temperature range of -15 to +55 degrees Celsius. Therefore, it maintains performance in diverse environments. It tolerates humidity levels up to 90 percent non-condensing. These environmental tolerances suit industrial environments. The unit supports 15-meter input and 20-meter output distances using standard 26AWG cables.

Specifications

What’s in the Box

• 1 x OEM 1×2 HDMI Distribution Unit

• 1 x 5V DC External Power Adapter

• 1 x User Documentation

Why Choose OEM 2-Port Splitter

• Active signal regeneration prevents data loss over extended cable distances.

• Automatic EDID detection ensures reliable handshakes between mismatched display resolutions.

• Rugged metal construction provides superior thermal dissipation for continuous operation.
