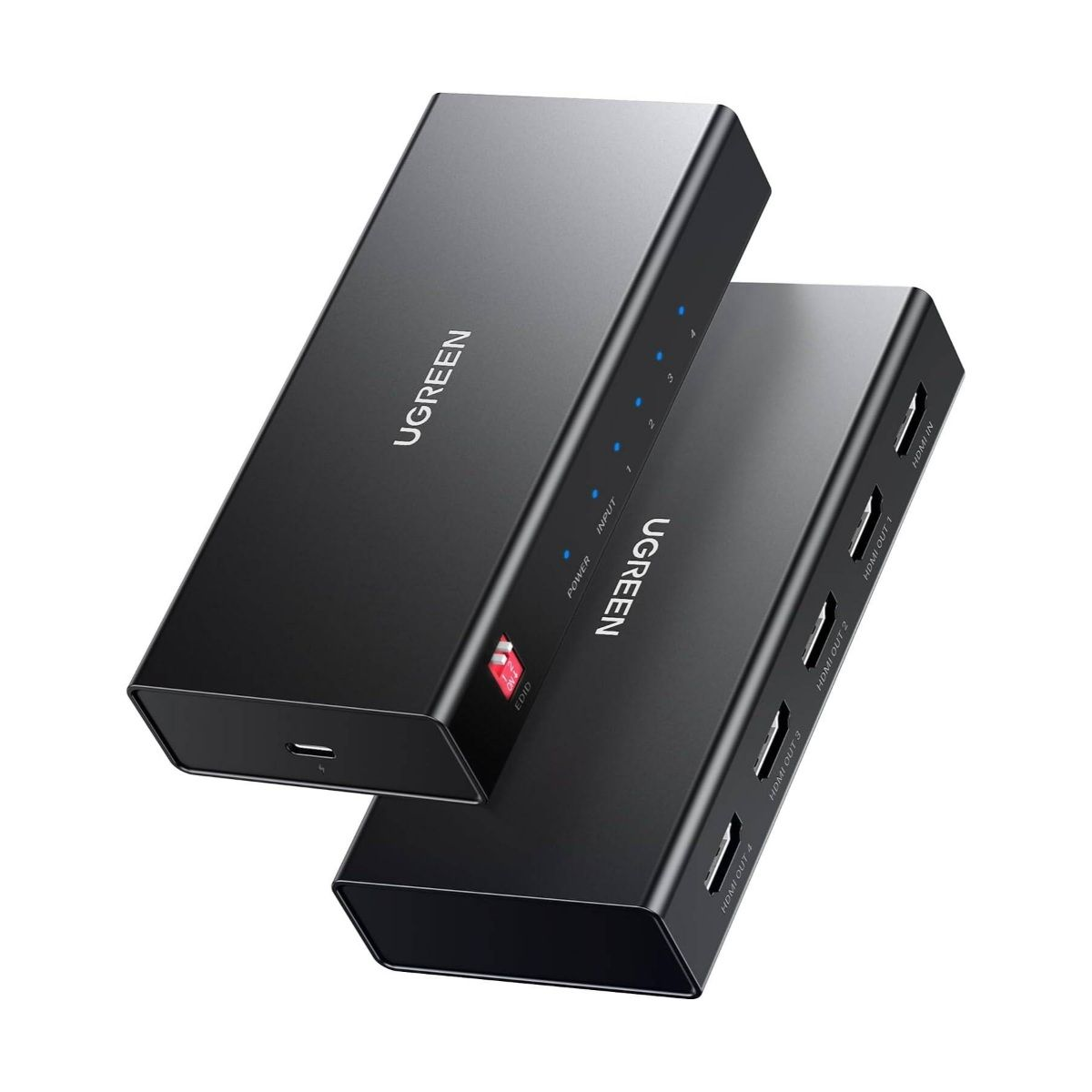

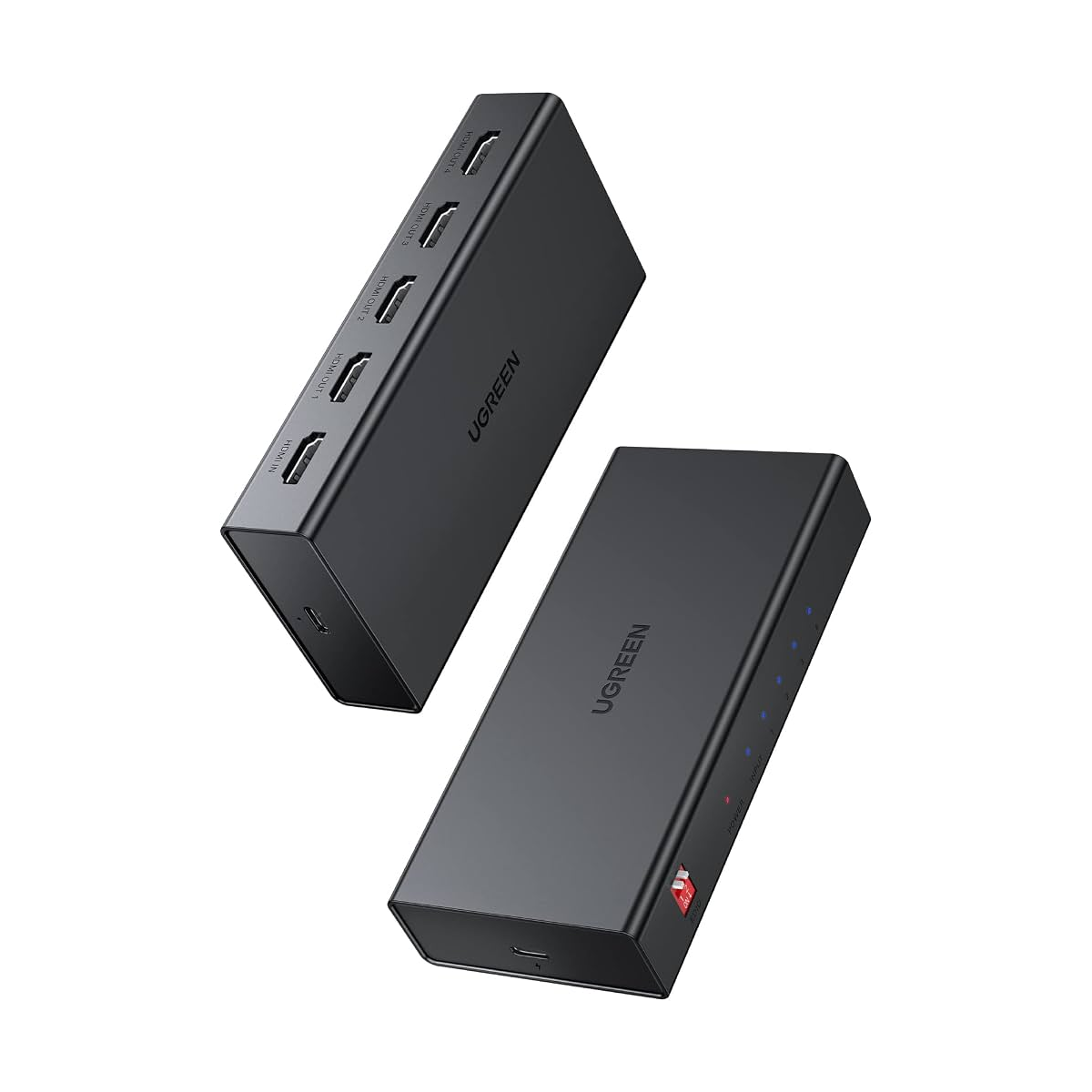

Ugreen CM570 HDMI Splitter 1 Input 4 Output
Original price was: KSh 3,800.00.KSh 3,000.00Current price is: KSh 3,000.00. ex VAT
Ugreen CM570 HDMI Splitter 1 Input 4 Output
| Model | CM570 (90514) |
| Configuration | 1 input, 4 outputs |
| Max Resolution | 4K at 30Hz |
| HDCP | HDCP 1.4 compliant |
| Audio | HDMI embedded audio |
| Power | External DC adapter |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Ugreen CM570 1×4 HDMI Distribution
The Ugreen CM570 HDMI Splitter mirrors one HDMI source to four downstream displays with synchronized timing. Retail, training, and control-room teams use it when one player must feed multiple panels. HDCP 1.4 handling supports protected content on compliant chains. Metal housing aids heat dissipation during always-on signage duty.
Installers place the splitter behind video walls so a single media player drives four identical feeds. Powered outputs maintain signal levels when all four HDMI ports connect to active displays. 1080p60 mode covers most menu boards while 4K30 suits higher-resolution creative content. External DC power keeps the unit stable when cable runs exceed passive splitter limits.
Key Features
One-In Four-Out Topology
A single HDMI input fans out to four identical outputs for uniform content across walls.4K Video Path
The splitter passes up to 3840 x 2160 at 30Hz when all displays and cables support that mode.Embedded HDMI Audio
LPCM audio travels with video so each display plays sound without separate audio wiring.Signal Integrity Design
- Built-in equalization helps maintain picture quality on longer HDMI runs
- Powered design stabilizes output levels across four simultaneous sinks
- Metal chassis supports continuous operation in enclosed AV furniture
Rack-Friendly Enclosure
Compact metal case mounts on shelves or behind displays in commercial installs.HDCP Compliance
HDCP 1.4 pass-through works with players and displays that honor content protection handshakes.
Specifications
| Feature | Specification |
|---|---|
| Model | Ugreen CM570 |
| Port Layout | 1 HDMI in, 4 HDMI out |
| Max Resolution | 4K (3840 x 2160) at 30Hz |
| 1080p Support | Up to 1920 x 1080 at 60Hz |
| HDCP | HDCP 1.4 |
| Audio | HDMI embedded audio pass-through |
| Power | External DC power adapter |
| Application | Signage, demos, multi-monitor training |
What’s in the Box
Ugreen CM570 HDMI 1-in-4-out splitter
DC power adapter
User manual
Why Choose CM570
Four synchronized outputs reduce player count in menu boards and briefing rooms.
Powered splitting maintains stable levels when all four HDMI ports are loaded.
4K-capable path future-proofs signage upgrades without replacing the distribution layer.
Metal chassis suits 24/7 operation behind commercial displays.
Single-input design simplifies cabling from one media player or PC source.
Embedded audio avoids separate amplifier runs in multi-screen training suites.
Kevin Mutua (verified owner) –
Does what it says. All four outputs active at once. Packaging was plain but unit arrived intact to Mombasa Road.
Esther Wambui (verified owner) –
Church projection setup — one laptop to four monitors in the tent. Plug and play.
James Kamau (verified owner) –
Running four TVs in our event space from one HDMI source. Splitter handles 1080p signage all day without overheating. Metal casing feels proper, not flimsy plastic.
Ruth Chebet (verified owner) –
Good for duplicating a CCTV feed to two screens in the guard room. No fuss.
