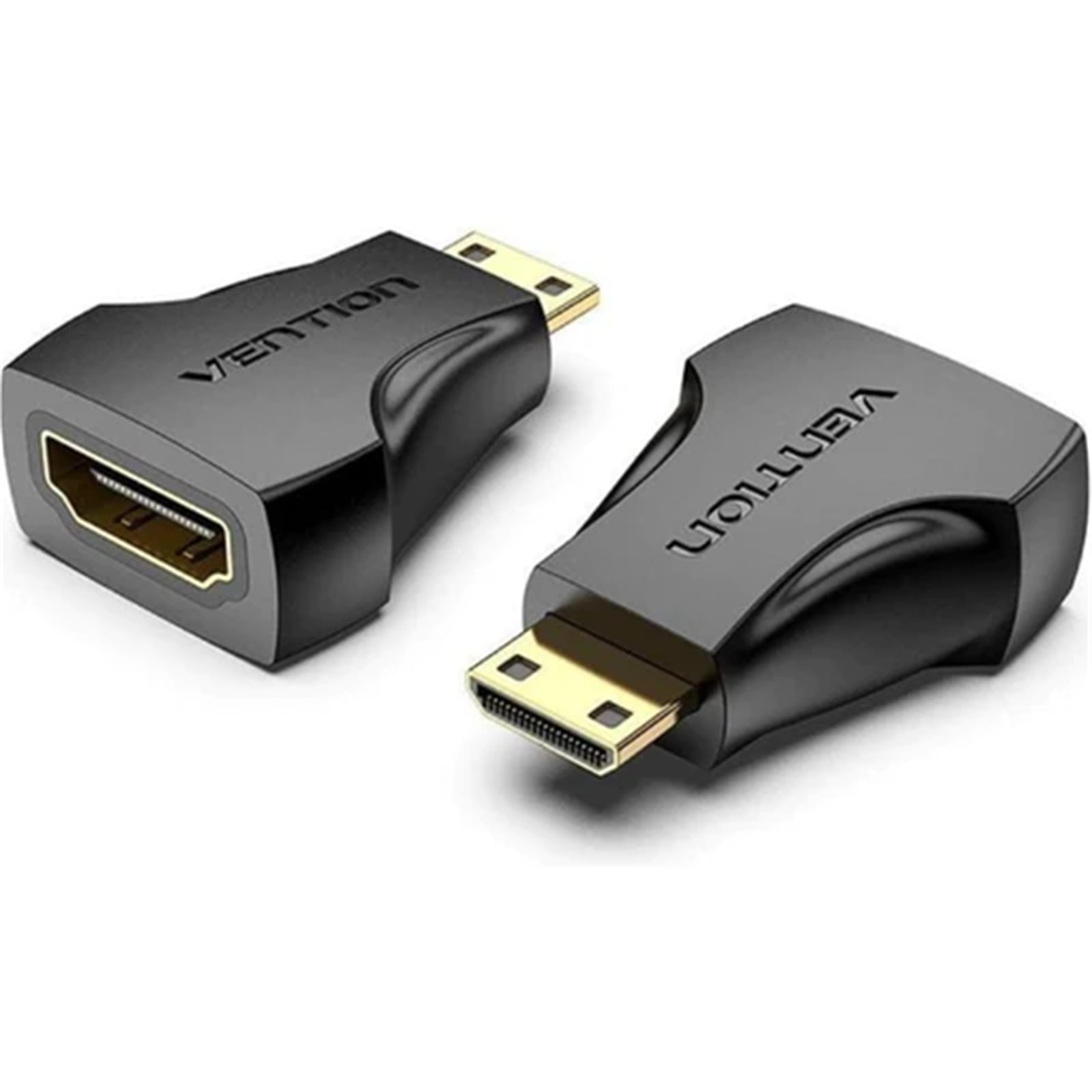

Vention AISB0 Adapter Mini HDMI Male to HDMI Female 4K 30Hz Black
Original price was: KSh 230.00.KSh 180.00Current price is: KSh 180.00. ex VAT
Vention AISB0 Adapter Mini HDMI Male to HDMI Female 4K 30Hz Black
| Model | AISB0 |
| Connector 1 | Mini HDMI Type-C male |
| Connector 2 | HDMI Type-A female |
| HDMI specification | 1.4 |
| Bandwidth | 10.2 Gbps |
| Maximum resolution | 3840 x 2160 at 30 Hz |
| Contact plating | Gold |
| Housing | PVC, black |
| Dimensions | 23 x 27 mm |
| Weight | Approximately 12 g |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Compact Mini HDMI to Full HDMI Converter
The Vention AISB0 adapter changes a Mini HDMI Type-C male output into a standard HDMI Type-A female port. Cameras, camcorders and compact tablets use this connector format to reach a television or projector. The body measures about 23 x 27 mm and weighs roughly 12 g.
Gold-plated contacts on both ends limit oxidation and hold contact resistance steady through repeated mating. The shell uses a rigid PVC body with a moulded strain relief at the plug. Vention rates the signal path to HDMI 1.4, which carries 10.2 Gbps across the TMDS pairs and supports 3840 x 2160 at 30 Hz, 1080p at 60 Hz and 3D frame packing.
Seven-channel digital audio passes through the same link, so a camera feed reaches a display with sound intact. The passive design needs no power supply or driver install. Field kits and lecture venues use the part to bridge a small-format camera output to the fixed HDMI cable already installed in a room.
Key Features
Mini HDMI to Standard HDMI Conversion
A Type-C male plug on one face mates with a Type-A female receptacle on the other.Gold-Plated Contact Set
Plating on the 19-pin contacts resists corrosion in humid store rooms and camera bags.Resolution and Signal Support
- 3840 x 2160 at 30 Hz over an HDMI 1.4 link
- 1920 x 1080 at 60 Hz and lower modes
- 3D frame packing and seven-channel digital audio
Passive Plug-and-Play Design
The part carries no active chipset, so it draws no power and needs no driver.Rigid PVC Housing
A moulded body protects the internal solder joints when the assembly hangs from a camera port.Pocket-Size Footprint
At roughly 12 g the unit sits in a camera pouch without adding measurable load.RoHS and REACH Compliance
Vention lists both certifications for the housing material and contact plating.
Specifications
| Feature | Specification |
|---|---|
| Model | AISB0 |
| Connector 1 | Mini HDMI Type-C male, 19-pin |
| Connector 2 | HDMI Type-A female, 19-pin |
| Adapter type | Passive video converter |
| HDMI specification | 1.4 |
| Bandwidth | 10.2 Gbps |
| Maximum resolution | 3840 x 2160 at 30 Hz |
| Supported modes | 1080p at 60 Hz, 720p, 576p, 480p |
| 3D support | Frame packing |
| Audio support | Up to 7.1 channel digital audio |
| Contact plating | Gold |
| Housing material | PVC |
| Colour | Black |
| Dimensions | 23 x 27 mm |
| Weight | Approximately 12 g |
| Power requirement | None, bus passive |
| Driver requirement | None |
| Certification | RoHS, REACH |
| Operating temperature | 0°C to 50°C |
| Warranty | 1 year |
What’s in the Box
Mini HDMI male to HDMI female converter, black
Polybag packaging
Why Choose the AISB0 Converter
The short body puts less leverage on a camera port than a full adapter cable assembly.
Passive construction removes a power source and a failure point from field kits.
Gold contacts hold a stable link across humid storage and repeated patching.
HDMI 1.4 signalling covers the 1080p and 4K 30 Hz outputs that most cameras deliver.
The 12 g mass lets technicians carry a spare in a pouch at negligible cost.
Priscilla Muthoni (verified owner) –
The build quality stands out. The adapter has a proper metal shell and the connector fits snugly, which matters when the camera is on a moving gimbal. Works reliably on every device we have tried so far.
Fredrick Ochieng (verified owner) –
Good little adapter, though I had to check orientation before plugging in. It works only in one direction, which is normal for this kind of converter. No complaints once set up correctly.
Linet Achieng (verified owner) –
Simple adapter that solved a specific problem. Our compact camera has a Mini HDMI out and the client’s display only takes standard HDMI, so this bridged the gap. No signal loss that we could see.
Samuel Karanja (verified owner) –
Ordered two of these for our AV kit. Both worked out of the bag, and the adapters have held up through several events. The small form factor means they fit in a camera pouch without adding bulk.
Millicent Wambui (verified owner) –
Bought this to bridge our tablet’s Mini HDMI to a projector in the boardroom. The 4K 30Hz ceiling is enough for our slide content, and the adapter stays firmly in place even when the HDMI cable is tugged. Would have liked a slightly longer strain relief, but the metal contacts hold up well.
Wycliffe Otieno (verified owner) –
Does the job. Compact and solid.
Purity Chepkemoi (verified owner) –
Arrived within the week and was well packed. I use it to connect a Raspberry Pi to the office TV, and it worked straight away with no driver install. The short body fits behind the display without strain.
Collins Barasa (verified owner) –
Needed this for a Canon DSLR that only has a Mini HDMI port. The adapter pushed the signal to our field monitor without any handshake trouble, and 4K at 30Hz held up on a quick test. The gold-plated contacts feel well seated.
