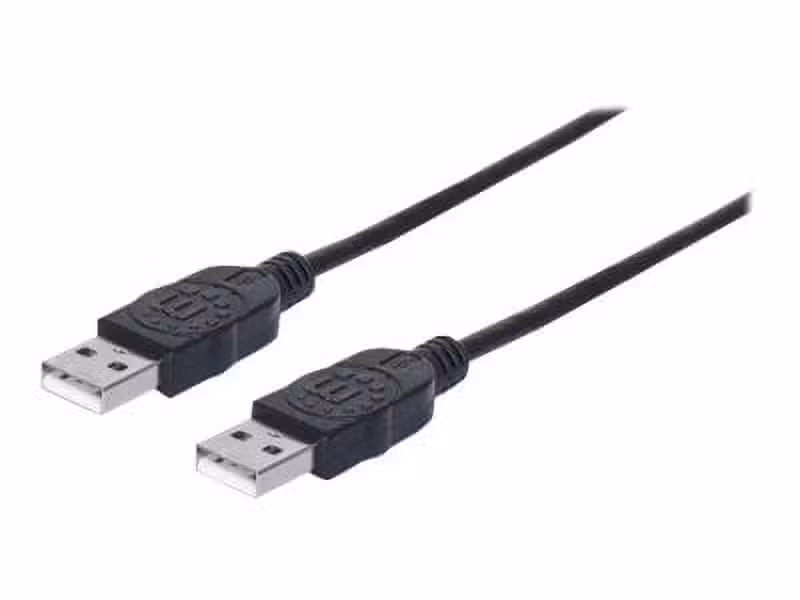

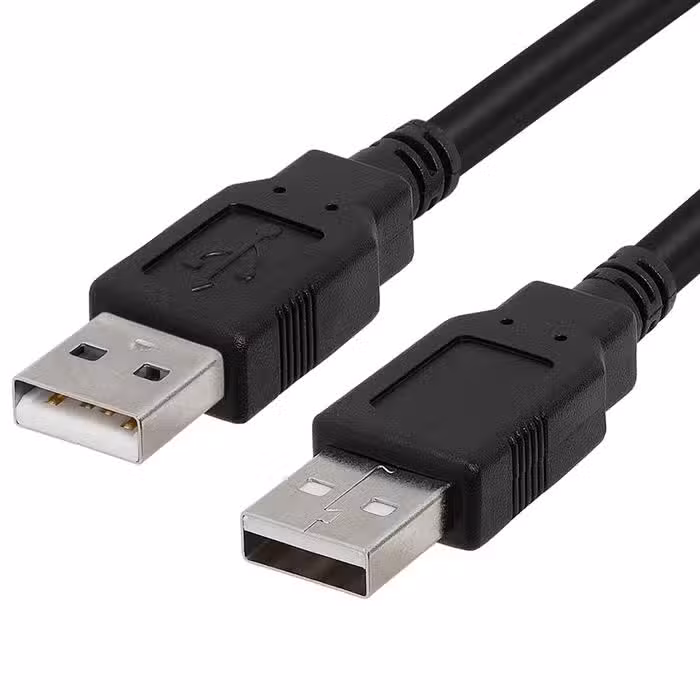

USB to USB Cable 5M Type-A Male to Male High-Speed 480Mbps

Long-Run USB 2.0 Link Cable

The USB to USB cable 5M is a Type-A male-to-male assembly for connecting peripherals across the maximum standard USB 2.0 distance. It carries one 28 AWG data pair with 90Ω characteristic impedance and two 24 AWG power conductors. Overall double shielding limits electromagnetic interference on the full 5-metre run.

The cable supports High-Speed USB 2.0 signalling at 480 Mbps and remains backward compatible with Full-Speed 12 Mbps and Low-Speed 1.5 Mbps devices. The 24 AWG power pair carries 5V at up to 500 mA for bus-powered peripherals. A PVC jacket protects the conductors, and moulded strain relief guards both connector junctions.

Gold-plated contacts resist corrosion and maintain low contact resistance across repeated mating cycles. The 5-metre length sits at the upper limit of the USB 2.0 specification for passive cables. It suits printers, scanners, external drives, KVM switches and industrial controllers that sit away from the host port.

Key Features

• USB 2.0 High-Speed Signalling
  The cable passes 480 Mbps data rates and negotiates down to 12 Mbps and 1.5 Mbps for legacy peripherals.

• Impedance-Matched Data Pair

  • 28 AWG twisted pair at 90Ω ±15% impedance
  • Two 24 AWG power conductors for 5V at 500 mA
  • Double shielding for EMI control over 5 metres

• Gold-Plated Connectors
  Gold plating on the Type-A plugs limits oxidation and holds stable contact through repeated plugging.

• Moulded Strain Relief
  Reinforced joints at both ends resist bending stress during routing and daily use.

• 5-Metre Standard Length
  The run reaches the maximum passive USB 2.0 distance without an active repeater or hub.

• PVC Jacket
  The flexible outer sheath protects the conductor bundle inside desks, cabinets and trunking.

Specifications

What’s in the Box

• 5 m USB 2.0 Type-A male-to-male cable

• Protective connector caps

Why Choose This USB Lead

• The 5-metre span covers the full passive USB 2.0 distance without adding a hub or repeater.

• Impedance-matched data conductors keep signal integrity stable across the long run.

• 24 AWG power conductors deliver the full 500 mA bus current to remote peripherals.

• Gold-plated contacts and double shielding reduce intermittent faults in electrically noisy cabinets.

• Moulded strain relief extends service life where cables are plugged and unplugged frequently.
