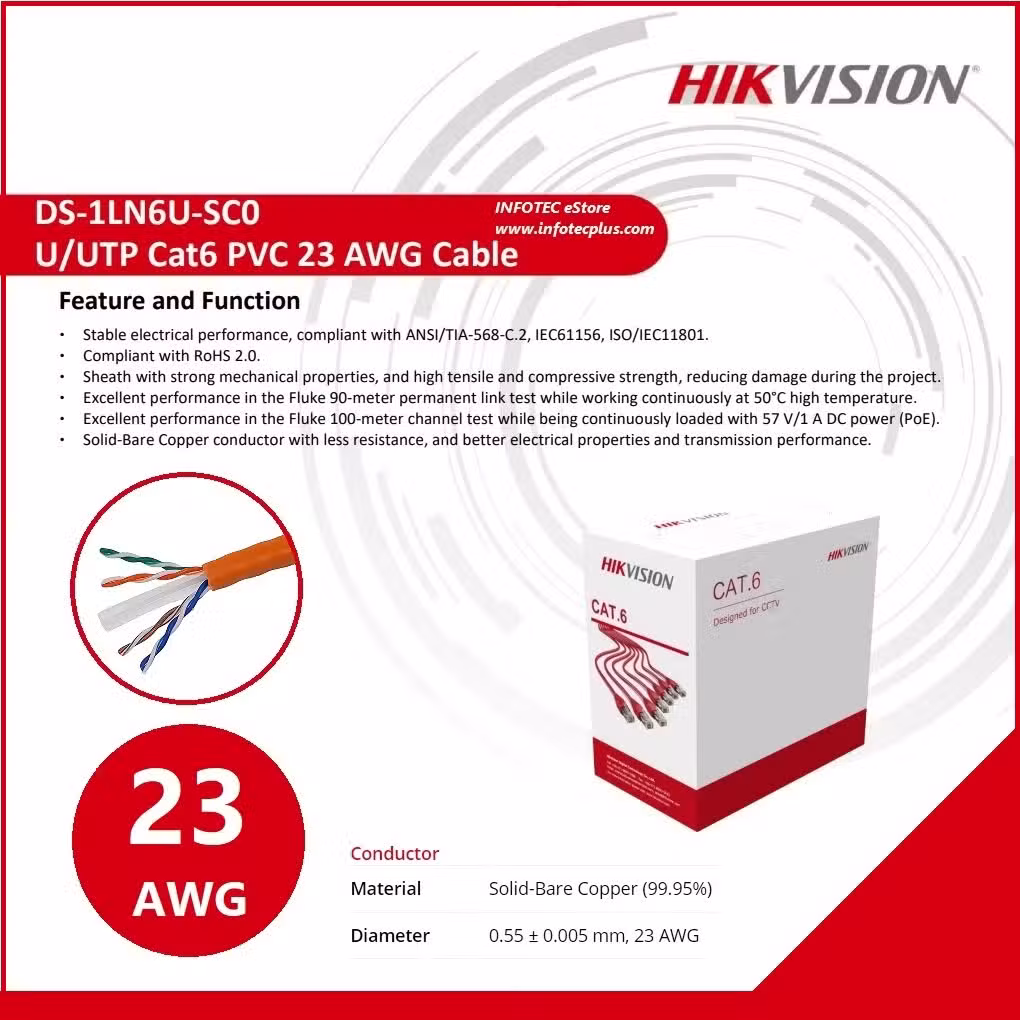

Hikvision DS-1LN6U-SC0 CAT6 UTP Cable 305 m 23AWG Solid Bare Copper Orange

Solid-Copper Cat6 UTP Cable Reel

The Hikvision CAT6 cable ships as a 305 m box of U/UTP cable built on 23 AWG solid bare copper conductors. It carries 1G, 2.5G and 10GBASE-T links to the 100 m channel limit. A cross separator sits between the four twisted pairs to hold geometry under load.

Each conductor measures 0.55 ± 0.005 mm and reaches 99.95% copper purity. HDPE insulation brings the insulated diameter to 0.98 ± 0.05 mm. The PVC sheath measures 6.00 ± 0.30 mm with a 0.50 ± 0.10 mm wall thickness and an orange finish for identification in trays.

Electrical performance targets 100 ± 15 Ω impedance from 1 to 100 MHz and 100 ± 25 Ω from 100 to 250 MHz. Delay skew stays at or below 45 ns per 100 m and DC resistance at or below 9.38 Ω per 100 m. The reel passes Fluke 90 m permanent link tests at 50°C and Fluke 100 m channel tests under 57 V / 1 A PoE load.

Key Features

• 23 AWG Solid Bare Copper
  Solid 0.55 mm conductors lower DC resistance compared with stranded or CCA constructions.

• Category 6 U/UTP Construction
  Four twisted pairs with a cross separator support 250 MHz bandwidth and 10GBASE-T channels to 100 m.

• Fluke-Verified PoE Performance

  • 90 m permanent link test passes with the cable held at 50°C.
  • 100 m channel test passes under 57 V / 1 A DC PoE load.
  • Supports IEEE 802.3af and 802.3at powered devices.

• HDPE Insulation
  High-density polyethylene holds the 0.98 mm insulated diameter across temperature swings.

• PVC Sheath with Rip Cord
  The 6.00 mm orange jacket strips cleanly and survives pulls through conduit and tray.

• 305 m Full Box
  The reel-in-box supplies a complete drum length with sequential metre markings printed on the sheath.

• Standards Compliance
  The cable meets ANSI/TIA-568-C.2, ISO/IEC 11801 and RoHS 2.0 requirements.

Specifications

What’s in the Box

• 305 m Cat6 U/UTP cable reel in box

Why Choose This Cat6 Reel

• Solid bare copper keeps insertion loss low on long permanent links.

• The cross separator holds pair geometry during pulls through tight conduit bends.

• Fluke test results at 50°C cover cable installed in hot ceiling voids.

• PoE channel verification at 57 V / 1 A suits access points and IP cameras.

• The full 305 m box reduces splice points on multi-floor backbone runs.
