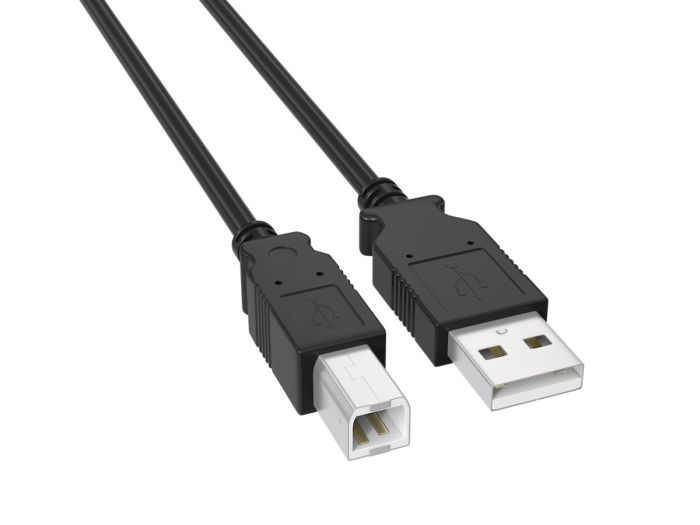

USB Printer Cable 5m – USB 2.0 Type-A to Type-B, 480Mbps, Double Shielded

USB 2.0 Peripheral Connection Lead

The USB printer cable 5m connects a host USB Type-A port to the Type-B socket on a printer, scanner or external drive. It carries USB 2.0 High-Speed signalling at up to 480 Mbps and stays backward compatible with USB 1.1 hardware. Factory-moulded connectors remove field termination from the installation.

The data pair uses 28 AWG copper and the power pair uses 24 AWG to limit voltage drop across the 5-metre run. Foil and braid shielding enclose the conductor set, and ferrite cores clamp high-frequency noise at each end. Nickel-plated shells protect the connector bodies, and the PVC jacket measures 4.5 mm across.

Plug-and-play operation needs no driver on Windows, macOS or Linux hosts. The cable runs at 300V DC rating with 5 MOhm insulation resistance and 10 Ohm contact resistance. Operating temperature spans 0°C to 40°C in office and retail environments. Length beyond the USB 2.0 passive limit of 5 metres is avoided, which keeps signal integrity inside specification.

Typical deployment covers point-of-sale printers, A4 laser printers, flatbed scanners and label printers at reception desks and back offices. The assembly meets UL 2725 and RoHS requirements for indoor cabling.

Key Features

• USB 2.0 High-Speed Transfer
  The cable moves data at up to 480 Mbps and negotiates down for Full-Speed and Low-Speed peripherals.

• Type-A to Type-B Connector Pair
  One USB Type-A male plug seats in the host while one Type-B male plug locks into the printer socket.

• Signal Integrity Package

  • 28 AWG data conductors for high-speed pairs
  • 24 AWG power conductors for lower voltage drop
  • Foil plus braid double shielding against EMI
  • Ferrite cores fitted at both connector ends

• 5-Metre Passive Length
  The assembly matches the practical limit for passive USB 2.0 runs without a repeater or hub.

• Moulded Strain Relief
  Die-cast connector covers protect the solder joints where the cable leaves the plug.

• Plug-and-Play Operation
  The host loads the existing printer driver and needs no additional software for the cable itself.

• PVC Jacket and Nickel Shells
  The 4.5 mm jacket resists abrasion, and nickel plating limits corrosion on the connector bodies.

Specifications

What’s in the Box

• 1x USB 2.0 Type-A male to Type-B male cable, 5 m

Why Choose This Connection Cable

• Moves a printer off the desktop and onto a shelf within a 5-metre cable reach.

• Foil and braid shielding keeps the link stable beside monitors and power adapters.

• The 24 AWG power pair supports bus-powered peripherals without voltage sag.

• Moulded strain relief survives repeated movement at reception and till counters.

• Plug-and-play setup removes driver work from high-volume rollout schedules.

• The 5-metre length stays inside passive USB limits for dependable throughput.
