USB RJ45 Extension Adapter Up to 150ft Cat5e Cat6 45m Bus-Powered

Long-Distance USB Over Ethernet

The USB RJ45 Extension Adapter pair carries a USB signal up to 150 ft (45 m) over one Cat5, Cat5e or Cat6 cable. It replaces long USB cords that lose integrity beyond 5 m. Installers use it for webcams, printers, barcode scanners and keyboards placed away from the host.

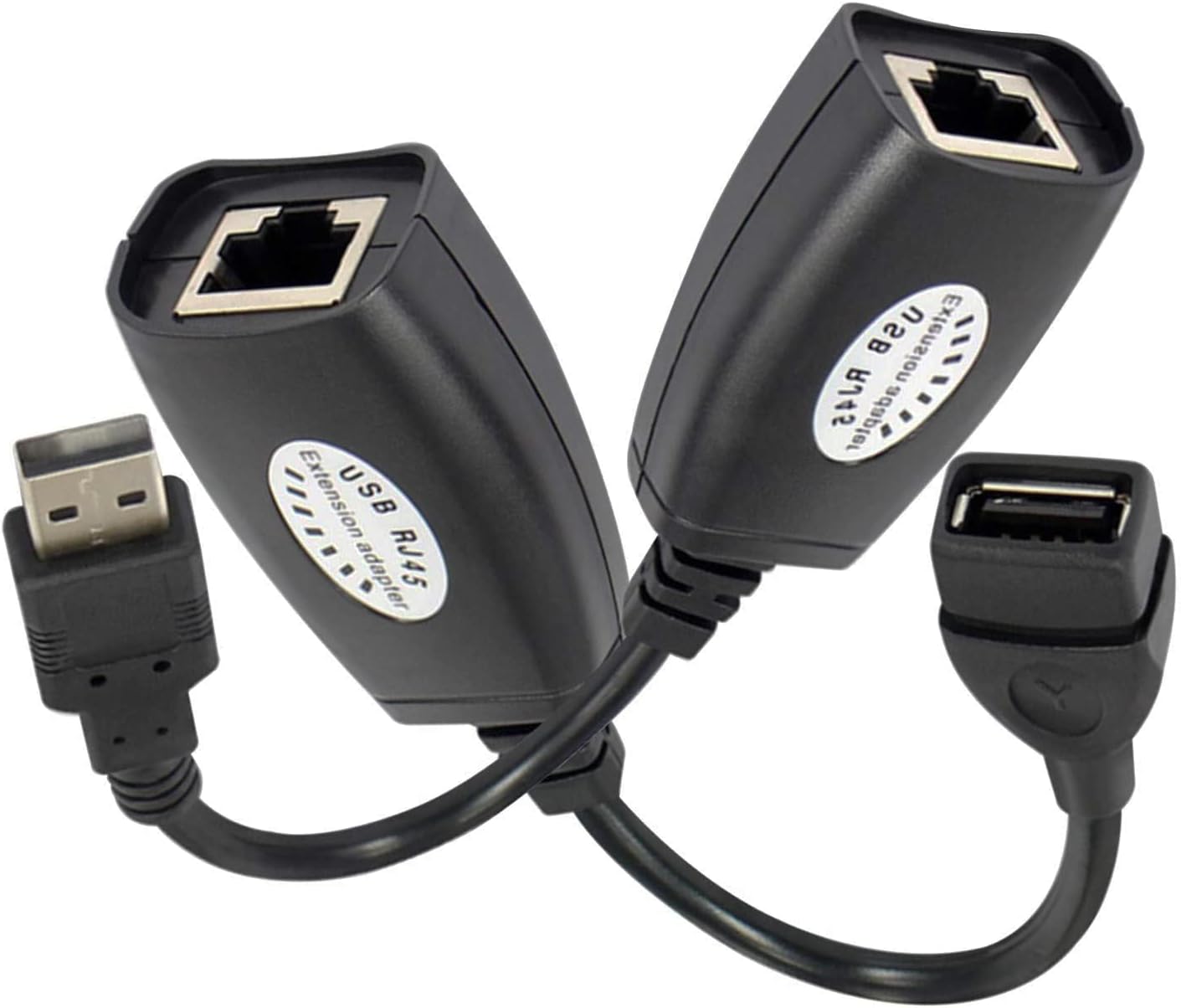

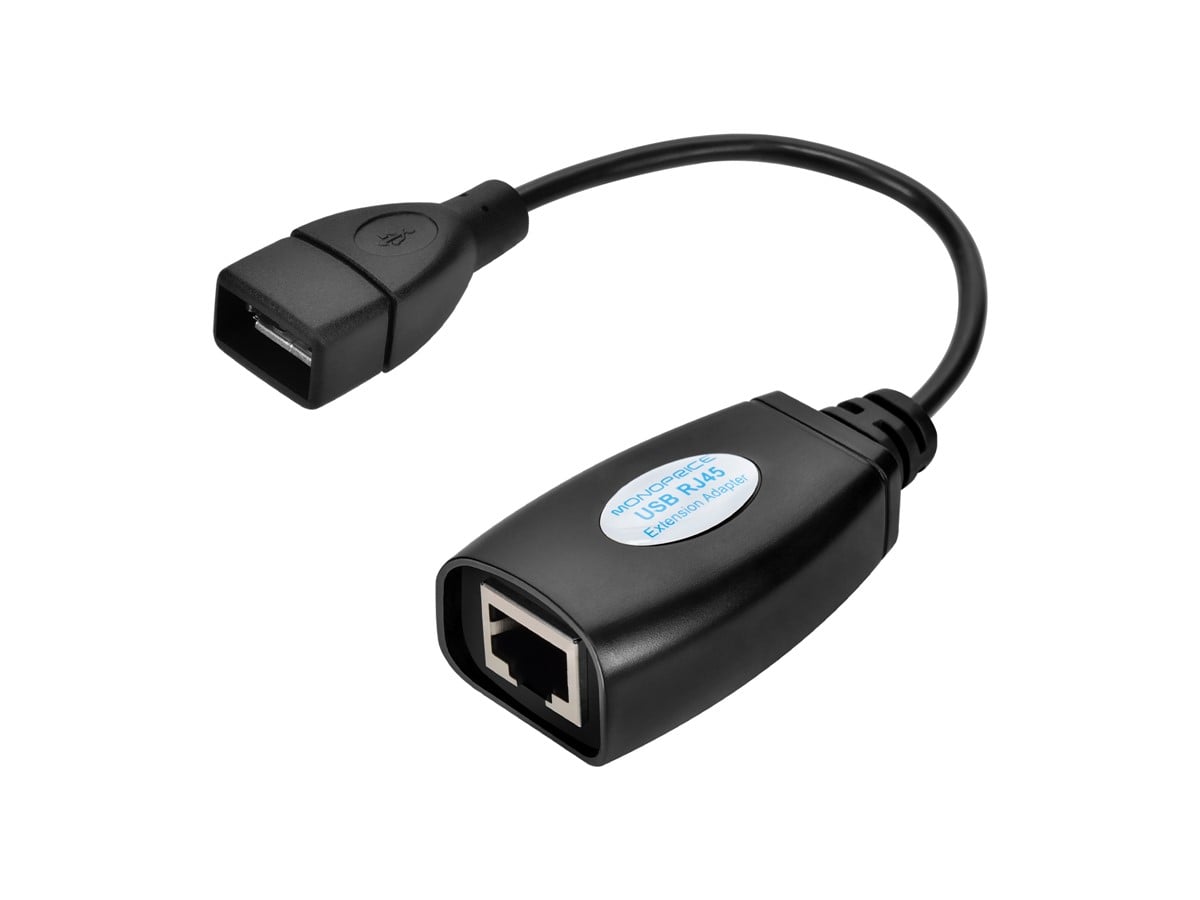

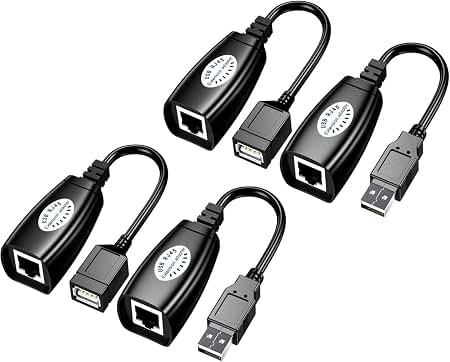

The kit contains a USB A male transmitter and a USB A female receiver, each with an RJ45 female port. The link draws power from the host bus, so no external supply is required. Data rates cover low-speed 1.5 Mbps and full-speed 12 Mbps USB 1.1 traffic, with USB 2.0 backward compatibility.

Each ABS housing measures about 65 × 20 × 15 mm, and the pair weighs roughly 50 g. No drivers are needed on Windows, macOS or Linux. A green LED on the local unit confirms host power, and an orange LED confirms the Cat5e/6 link to the remote end.

Key Features

• 150 ft Extension Range
  The pair bridges a USB device to a host over 45 m of standard twisted-pair cable.

• RJ45 Female Ports
  Both units expose an RJ45 socket for a user-supplied Cat5, Cat5e or Cat6 patch lead.

• Bus-Powered Operation

  • Power comes from the host USB port, with no wall adapter
  • Green LED shows host power at the transmitter
  • Orange LED confirms the cable link between units

• Driver-Free Installation
  The chipset enumerates as a standard USB device on Windows, macOS and Linux.

• USB 1.1 Data Rates
  The link supports 1.5 Mbps low-speed and 12 Mbps full-speed devices.

• Compact ABS Housing
  The 65 × 20 × 15 mm shells fit behind monitors and inside cabinets.

• Low Pair Weight
  Both units together weigh about 50 g, so they hang without strain on a cable.

Specifications

What’s in the Box

• USB A male to RJ45 female transmitter unit

• USB A female to RJ45 female receiver unit

Why Choose This USB-over-Ethernet Kit

• Standard Ethernet cable costs less than a long active USB lead and routes through conduit easily.

• The bus-powered pair removes the need for a power outlet at the remote end.

• Full-speed 12 Mbps suits webcams, printers and barcode scanners without bandwidth contention.

• The two small shells fit behind wall plates and inside equipment cabinets.

• Driver-free enumeration keeps deployment time short on mixed operating systems.
