UGREEN CM498 Docking Station 10-in-1 USB-C Hub with 4K HDMI, VGA, Gigabit Ethernet and 100W PD
Original price was: KSh 5,400.00.KSh 4,200.00Current price is: KSh 4,200.00. ex VAT
UGREEN CM498 Docking Station 10-in-1 USB-C Hub with 4K HDMI, VGA, Gigabit Ethernet and 100W PD
| Model | CM498, part 15601 |
| Host interface | USB-C male, 15 cm captive cable |
| USB ports | 3x USB-A 3.0, 5Gbps |
| Video | HDMI 4K@30Hz, VGA 1080p@60Hz, simultaneous |
| Ethernet | RJ45 Gigabit 10/100/1000Mbps |
| Card readers | SD and TF, simultaneous, up to 104MB/s |
| Audio | 3.5 mm output only |
| Power delivery | USB-C PD 3.0, up to 100W |
| Housing | Aluminium alloy, 140 x 44 x 16 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Ten-Port USB-C Expansion Dock

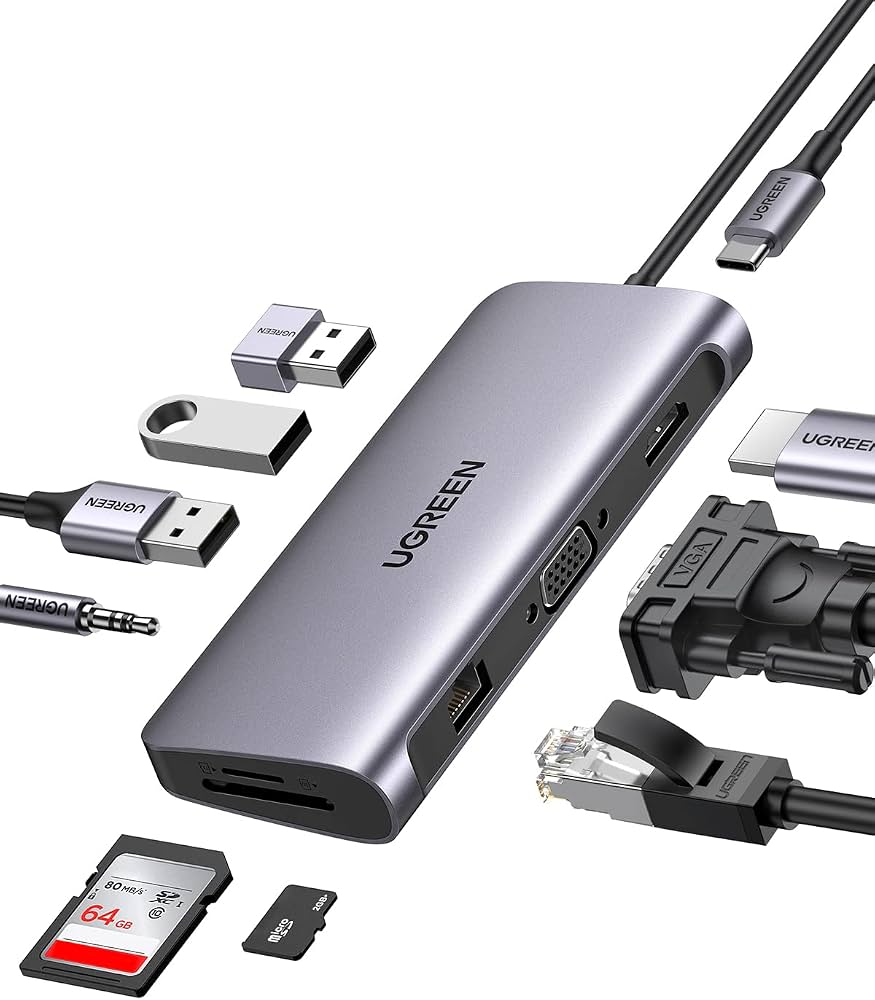

The UGREEN CM498 docking station converts a single USB-C port into ten working interfaces for laptops, tablets and desktop replacement setups. It combines three USB-A 3.0 ports, HDMI, VGA, Gigabit Ethernet, SD and TF card slots, a 3.5 mm audio jack and a 100W PD input.
Video runs through HDMI at up to 4K at 30Hz, 2560×1440 at 60Hz or 1080p at 120Hz, and through VGA at 1080p at 60Hz. Both outputs operate at the same time, so the host mirrors or extends across a modern panel and a legacy projector. The three USB 3.0 ports move data at 5Gbps and stay backward compatible with USB 2.0 and 1.1 peripherals.
The RJ45 port auto-negotiates 10/100/1000Mbps. The aluminium body measures 140 x 44 x 16 mm and the captive cable spans 15 cm. The unit draws power from the host, and the PD port passes up to 100W to charge the connected laptop while peripherals remain active.
Key Features
Ten Functional Ports
One USB-C male connector feeds three USB-A 3.0 ports, one HDMI port, one VGA port, one RJ45 socket, SD and TF slots, a 3.5 mm audio output and a USB-C PD input.Simultaneous Video Output
- HDMI supports 3840×2160 at 30Hz, 2560×1440 at 60Hz and 1920×1080 at 120Hz.
- VGA supports 1920×1080 at 60Hz for projectors and older monitors.
- Mirrored and extended desktop modes work with both displays connected.
USB 3.0 Data Path
Three Type-A ports deliver 5Gbps signalling with a 2A shared output budget across the group.Gigabit Wired Networking
The AX88179A controller handles 10/100/1000Mbps auto-negotiation for stable wired access in office and lab environments.Dual Card Readers
- SD and TF slots read and write at the same time.
- Sequential read throughput reaches roughly 90 to 104MB/s through the GL3224 controller.
100W Power Delivery Passthrough
The PD 3.0 input accepts up to 100W from a USB-C charger and forwards power to the host while the hub operates.Controller Set and Chassis
The board pairs VL102, VL815, GL3510, ITE6564, GL3224, AX88179A and CS4344 silicon inside a machined aluminium shell.
Specifications
| Feature | Specification |
|---|---|
| Model | CM498, part 15601 |
| Host interface | USB-C male, captive 15 cm cable |
| USB ports | 3x USB-A 3.0, 5Gbps, 2A shared |
| Video output | HDMI 4K@30Hz / 2K@60Hz / 1080p@120Hz; VGA 1080p@60Hz |
| Ethernet | RJ45, 10/100/1000Mbps auto-negotiation |
| Card readers | SD and TF, simultaneous access, up to 104MB/s |
| Audio | 3.5 mm output only, microphone not supported |
| Power delivery | USB-C PD 3.0 input, up to 100W |
| Controllers | VL102, VL815, GL3510, ITE6564, GL3224, AX88179A, CS4344 |
| Housing | Aluminium alloy |
| Dimensions | 140 x 44 x 16 mm |
| Compatibility | Windows, macOS, Linux, iOS, Android |
What’s in the Box
1x UGREEN CM498 ten-port USB-C hub
Why Choose CM498
Replaces separate video adapters, a network dongle and a card reader with one multiport adapter carried in a laptop bag.
Dual video paths cover both a current HDMI display and an installed VGA projector during the same presentation.
Passive cooling through the metal chassis keeps the expansion dock stable during long transfer sessions.
Driver-free operation across Windows, macOS, Linux, iOS and Android hosts.
