D-Link DES-F1010P-E 10-Port 10/100 Long Range PoE Switch
Original price was: KSh 8,620.69.KSh 6,896.55Current price is: KSh 6,896.55. ex VAT
D-Link DES-F1010P-E 10-Port 10/100 Long Range PoE Switch
| Feature | Value |
|---|---|
| Ports | 8 x 10/100 PoE, 2 x 10/100 Uplink |
| PoE Budget | 96W |
| Standard | 802.3af/at (up to 30W/port) |
| Special Modes | Extend (250m), VLAN, QoS, PoE Reset |
| Surge Protection | 6kV |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

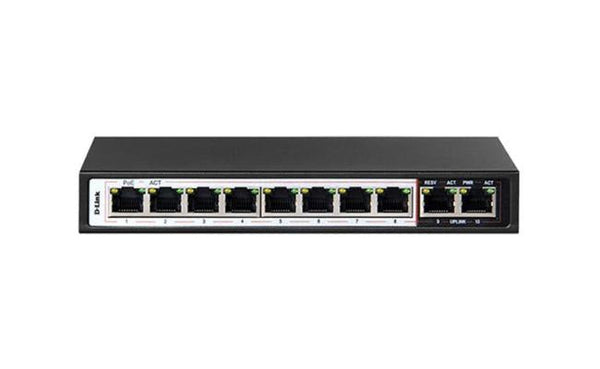

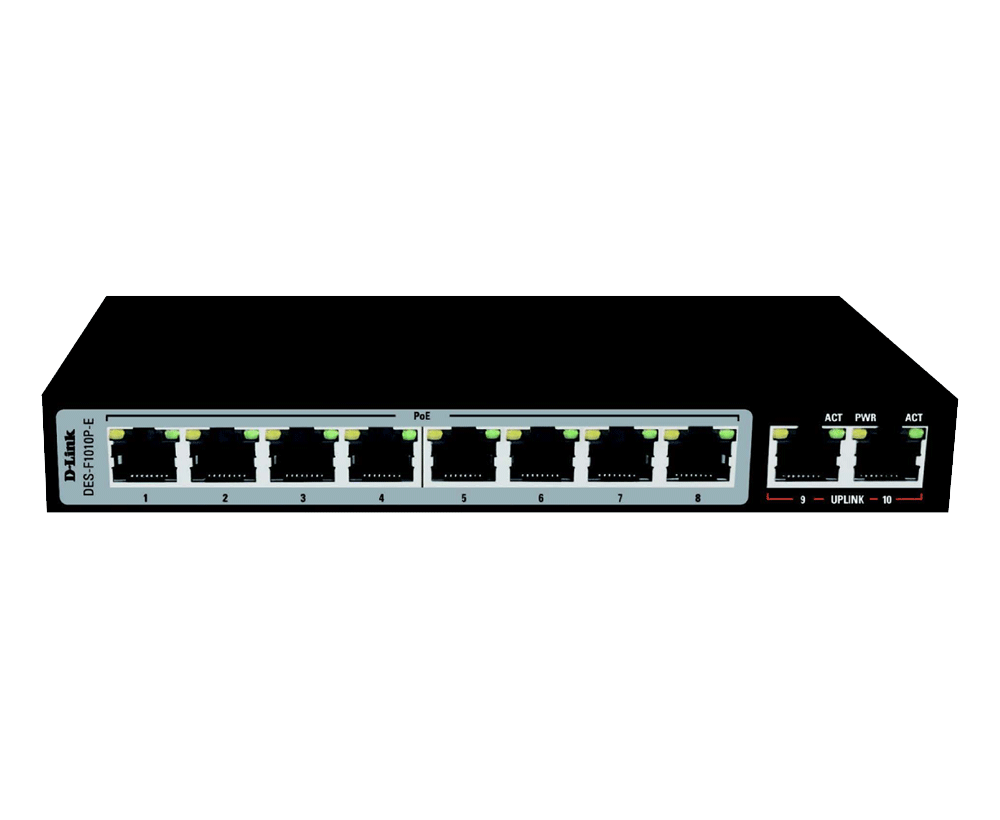

D-Link DES-F1010P-E
The D-Link DES-F1010P-E PoE switch serves as a high-density power delivery solution for small to medium-scale network deployments. This 10-port hardware integrates eight Fast Ethernet ports with Power over Ethernet capabilities and two dedicated 10/100 Mbps uplink ports. The device operates on the IEEE 802.3af and 802.3at standards. It provides a total power budget of 96 Watts across the eight prioritized ports. This enables the simultaneous operation of multiple IP cameras, wireless access points, or VoIP handsets without external power adapters. The integrated internal power supply simplifies cable management in rack or desktop environments. Each port delivers up to 30 Watts of power until the total budget limit is reached.
Key Features
Extended Transmission Range
The hardware supports data and power delivery over cabling distances reaching up to 250 meters in specialized extend mode.Intelligent Management Modes
- VLAN Mode isolates downlink ports to mitigate broadcast storms and improve security.
- QoS Mode prioritizes video traffic to ensure consistent streaming for surveillance applications.
- PoE Mode automatically detects and reboots non-responsive powered devices.
Robust Electrical Protection
Built-in 6kV surge protection shields the internal circuitry from electrical transients caused by lightning or unstable power grids.Uplink Versatility
Two dedicated 10/100 Mbps uplink ports allow for concurrent connections to a Network Video Recorder and a core internet router.
The DES-F1010P-E utilizes a fanless design for silent operation in noise-sensitive workspaces. The metal housing facilitates passive heat dissipation to maintain optimal operating temperatures under heavy loads. Users can toggle the four operational modes via physical DIP switches located on the front panel. This manual control bypasses the need for complex software configuration. The switch fabric supports a 2 Gbps capacity to ensure non-blocking wire-speed performance across all ports. Automatic MDI/MDIX crossover detection on all ports eliminates the requirement for specialized crossover cables. The unit also features an intelligent power allocation algorithm to prevent over-voltage damage to connected equipment. This hardware maintains a high Mean Time Between Failures for long-term infrastructure reliability.
Specifications
| Feature | Specification |
|---|---|
| Total Ports | 10 Ports (8 PoE + 2 Uplink) |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| PoE Power Budget | 96 Watts |
| Switching Capacity | 2 Gbps |
| Max Forwarding Rate | 1.48 Mpps |
| Surge Protection | 6kV |
| Transmission Range | Up to 250m (Extend Mode) |
| Dimensions | 184 x 94 x 27 mm |
What’s in the Box
D-Link DES-F1010P-E Switch
Power Cord
Quick Installation Guide
Why Choose D-Link DES-F1010P-E
Long-distance connectivity allows for remote device placement without the need for additional signal repeaters or midspans.
Hardware-based VLAN isolation increases network efficiency by restricting traffic flow between secondary endpoints.
Automated power monitoring reduces maintenance costs by power-cycling hung devices without manual intervention.
The 6kV surge rating provides essential durability for installations involving outdoor cabling or industrial environments.
