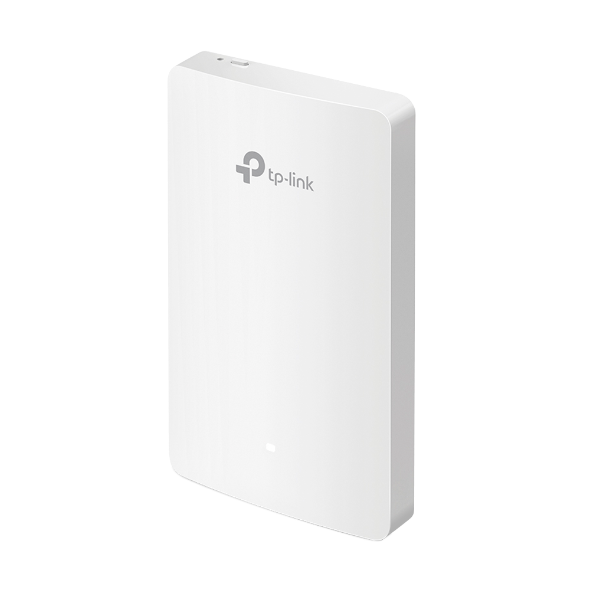

TP-Link EAP235-Wall AC1200 MU-MIMO Gigabit Wall-Plate Access Point
Original price was: KSh 8,700.00.KSh 6,600.00Current price is: KSh 6,600.00. ex VAT
TP-Link EAP235-Wall AC1200 MU-MIMO Gigabit Wall-Plate Access Point
| Model | EAP235-Wall |
| Wireless Standard | IEEE 802.11a/b/g/n/ac |
| Signal Rate | 5 GHz: 867 Mbps; 2.4 GHz: 300 Mbps |
| MIMO | 2×2 MU-MIMO |
| Ethernet Ports | 1× Gigabit uplink; 3× Gigabit downlink (one PoE OUT) |
| PoE Input | 802.3af / 802.3at |
| Max Power Consumption | 9.8 W; 24.4 W with PoE OUT |
| Dimensions | 143 × 86 × 20 mm |
| Concurrent Clients | 200+ |
| SSIDs | 16 (up to 8 per band) |
| Management | Omada SDN; Omada App; cloud controller |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Wall-Plate AC1200 Access Point
The TP-Link EAP235-Wall is an AC1200 dual-band wall-plate access point for hotel rooms, dormitories, and office cubicles. It delivers 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. MU-MIMO serves multiple clients concurrently.
Four Gigabit Ethernet ports include one uplink and three downlink interfaces. One downlink port provides PoE pass-through at up to 13 W when powered by an 802.3at source. The unit draws 9.8 W under standard 802.3af input.
The chassis measures 143 × 86 × 20 mm and mounts over 86 mm, EU, or US standard junction boxes. Two dual-band antennas provide 4 dBi gain on both radios. Operating temperature ranges from 0 °C to 40 °C.
Key Features
Dual-Band 802.11ac Wave 2
2×2 MU-MIMO radios deliver 300 Mbps at 2.4 GHz and 867 Mbps at 5 GHz for concurrent client traffic.Four Gigabit Ports with PoE Passthrough
- 1× 10/100/1000 Mbps uplink port
- 3× 10/100/1000 Mbps downlink ports
- One downlink port supplies PoE OUT up to 13 W with 802.3at input
Omada SDN Integration
Zero-Touch Provisioning, cloud access, and centralized monitoring through Omada controllers.Guest Network and Security
Captive portal authentication, 802.1X, WPA2-Enterprise, client isolation, and SSID-to-VLAN mapping.Low-Profile Wall Mount
The 20 mm chassis fits standard junction boxes and accepts 802.3af/at PoE for single-cable installation.Client Density and Coverage
Supports 200+ concurrent clients, 16 SSIDs, band steering, and beamforming across 25 m² coverage.
Specifications
| Feature | Specification |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac |
| Signal Rate | 5 GHz: 867 Mbps; 2.4 GHz: 300 Mbps |
| Antennas | 2× dual-band, 4 dBi at 2.4 GHz and 5 GHz |
| MIMO | 2×2 MU-MIMO |
| Ethernet Ports | 1× Gigabit uplink; 3× Gigabit downlink (one PoE OUT) |
| PoE Input | 802.3af / 802.3at |
| PoE Output | Up to 13 W on one downlink port with 802.3at input |
| Max Power Consumption | 9.8 W; 24.4 W with PoE OUT |
| Dimensions | 143 × 86 × 20 mm |
| Mounting | Wall plate; 86 mm, EU, and US junction boxes |
| Coverage | 25 m² (300 ft²) |
| Concurrent Clients | 200+ |
| SSIDs | 16 (up to 8 per band) |
| Wireless Security | WEP 64/128/152-bit; WPA/WPA2-PSK; WPA/WPA2-Enterprise; 802.1X |
| Management | Omada App; Omada Cloud-Based Controller; OC200/OC300; software controller; HTTP/HTTPS; SNMP v1/v2c; SSH |
| Operating Temperature | 0 °C to 40 °C |
| Certifications | CE; FCC; RoHS |
What’s in the Box
EAP235-Wall access point
Installation guide
Mounting screw
Why Choose EAP235-Wall
Delivers per-room wireless coverage with wired bridge ports for VoIP handsets and printers.
Accepts 802.3af/at power over the uplink cable, which removes the need for a local power outlet.
Integrates into Omada SDN for zero-touch provisioning and multi-site cloud management.
Supports 16 SSIDs and VLAN mapping for segmented guest, staff, and device networks.
Njuguna Kimani (verified owner) –
We fitted these in a hotel corridor in Westlands and the wall-plate form factor is the main win — no ceiling brackets, no visible cabling. Each room gets its own SSID VLAN through Omada and roaming between rooms is clean. Two units per floor covered the whole wing on 5 GHz.
Achieng Odhiambo (verified owner) –
Delivered to our office in Upper Hill faster than expected. Configuring the EAP235-Wall through the Omada controller took under ten minutes per unit. Only thing I’d note is that you need a PoE switch or injector, it doesn’t ship with one.
Wanjiru Kamau (verified owner) –
Works as advertised for a small guesthouse in Karen. Build feels sturdy and the AC1200 speeds are fine for our guest traffic. Took a star off because the mounting instructions assume a standard 86mm back box, and our older walls needed a bit of improvisation.
Brian Mutiso (verified owner) –
Solid little AP. MU-MIMO actually shows in a busy small office — we have about 20 devices and nobody complains about buffering anymore. The pass-through port on the front is handy for wiring a desk phone or printer without extra cabling runs.
