Toshiba HR-2809-L Lower Pressure Roller 6LJ78088000

Fuser Pressure Roller for e-STUDIO Mono Copiers

The Toshiba lower pressure roller carries part number 6LJ78088000 and the Toshiba code HR-2809-L. It sits in the fuser unit of the e-STUDIO 2309A, 2323AM and 2829A platforms, where it presses paper against the heat roller during toner fixing. Technicians replace it when copies show pressure marks, offsetting or a repeating defect along the page.

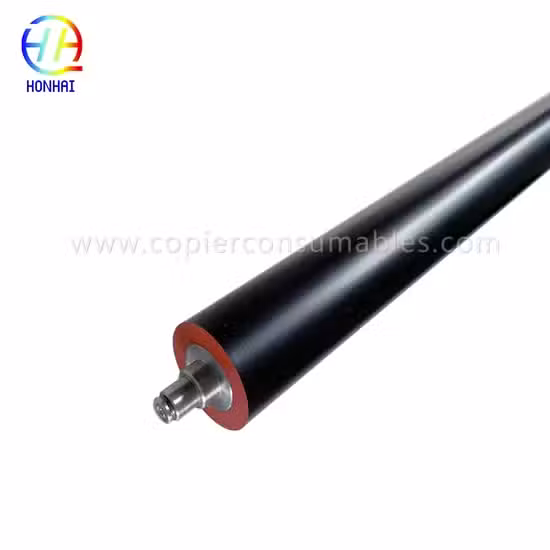

The roller measures approximately 40 mm in diameter and spans the full A3 paper width. Its silicone outer layer compresses against the heat roller to form the fusing nip. The steel core carries the drive load and seats in the pressure-arm bushings on both ends.

Toshiba rates the roller at approximately 150,000 pages under standard coverage. Compatibility covers the e-STUDIO 2006, 2007, 2303A, 2306, 2307, 2506, 2507, 2809A and 2829A. It also fits the 2323AMW and 2823AMW variants that share the same fuser housing.

Key Features

• Original Toshiba Part
  Part 6LJ78088000 matches the factory pressure-roller drawing for the listed e-STUDIO chassis.

• HR-2809-L Code
  The HR-2809-L designation identifies the lower pressure position in the Toshiba fuser assembly.

• Full A3 Width
  The roller spans the A3 paper path, so it presses evenly across short and long edge feed.

• Silicone Outer Layer
  The compliant surface forms a consistent fusing nip against the heat roller.

• Service Application

  • Removes pressure marks and offsetting caused by a flattened roller.
  • Corrects repeating defects spaced at roller circumference.
  • Fits the 2309A, 2323AM and 2829A fuser assembly.
  • Rated for approximately 150,000 pages under standard coverage.

• Drop-In Replacement
  The roller seats in the existing pressure-arm bushings without machining.

Installation and Inspection

Power down the copier and disconnect the mains lead before opening the fuser area. Allow the fuser to cool for at least 30 minutes; the heat roller reaches temperatures above 180°C in operation. Remove the fuser unit and place it on a clean, heat-resistant surface.

Release the pressure springs and lift the old roller from its bushings. Inspect the bushings for wear and replace them if the bore shows scoring. Clean any toner residue from the pressure-arm seats before fitting the new roller.

Seat the replacement roller squarely in both bushings and refit the pressure springs. Rotate the roller by hand to confirm free movement. Reassemble the fuser and run several test copies on plain A4 before returning the machine to service.

Specifications

What’s in the Box

• 6LJ78088000 lower pressure roller

Why Choose the Toshiba HR-2809-L

• The roller restores even fusing pressure without replacing the full fuser unit.

• Original part number and HR-2809-L code match the factory assembly drawing.

• It seats in the existing bushings, so no machining or adapters are required.

• One part number covers the 2309A, 2323AM and 2829A mono platforms.
