Toshiba FR-R-KIT-2809 Fuser Maintenance Kit 6LJ78113000 for e-STUDIO

Fuser Rebuild Kit for e-STUDIO Multifunction Printers

The Toshiba fuser maintenance kit restores the fixing assembly on e-STUDIO 2309A, 2802AF, 2802AM, 2803AM, 2323AM, 2329A, 2523A, 2523AD, 2823AM and 2829A machines. Toshiba lists the kit as FR_R-KIT-2809 under part number 6LJ78113000, with 6LJ84183000 as a cross-reference. It bundles the wear parts that degrade as the fuser reaches its service interval.

Fuser maintenance addresses toner offset, paper curl, wrinkles and repeated jams at the exit path. A worn heat roller loses surface release, and a flattened pressure roller stops applying even nip force. The kit replaces both rollers alongside the bushings, picker fingers and scraper blades that control sheet separation.

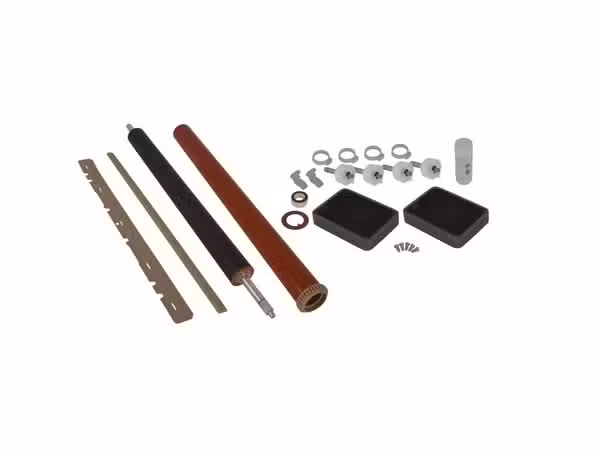

Contents include the upper heat roller 6LJ78116000, the lower pressure roller 6LJ78088000, two heat roller bushings 6LJ78009000, the saw tooth 6LJ78626000, an ozone filter 6LJ15609000, the recovery blade sheet 6LJ75534000, five picker fingers 6LE58405000 and two scrapers 6LA79618000. Each part carries its own OEM number for cross-checking against a printed parts list.

Fitment requires removing the fuser unit from the chassis and separating the upper and lower frames. Technicians should clear residual toner, fit the new bushings before seating the rollers, and check the picker finger springs for correct tension. Run a few test prints and inspect the exit path for curl before returning the machine to service. A new ozone filter limits odour and internal contamination across the next cycle.

Key Features

• Complete Roller Set
  The kit includes both the upper heat roller and the lower pressure roller.

• Wear Component Bundle

  • Two heat roller bushings for correct roller alignment
  • Five picker fingers for reliable sheet separation
  • Two scraper blades for cleaning the roller surface
  • One saw tooth and one recovery blade sheet
  • One ozone filter for internal air quality

• OEM Part Numbers on Every Item
  Each component cross-references to the Toshiba parts catalogue.

• Wide e-STUDIO Coverage
  One kit covers the 2309A, 2802, 2803, 2323AM and 2829A families.

• Maintenance Interval Repair
  The bundle targets the scheduled fuser service point rather than a single failure.

• Cross-Reference 6LJ84183000
  The alternate number simplifies ordering against older parts lists.

Specifications

What’s in the Box

• 1 x upper heat roller 6LJ78116000

• 1 x lower pressure roller 6LJ78088000

• 2 x heat roller bushings 6LJ78009000

• 1 x saw tooth 6LJ78626000

• 1 x ozone filter 6LJ15609000

• 1 x recovery blade sheet 6LJ75534000

• 5 x picker fingers 6LE58405000

• 2 x scrapers 6LA79618000

Why Choose This Kit

• Replacing both rollers together restores even nip pressure and clear output.

• The bushing set removes play that causes roller wobble and paper skew.

• New picker fingers cut exit jams on thin and coated stock.

• The ozone filter controls odour inside busy print rooms.

• One part number covers several e-STUDIO generations in mixed fleets.

• OEM components keep dimensions and surface finish within Toshiba specification.
