Toshiba 6LJ78009000 Fuser Roller Bushing BUSH-FUS-HR-H24X – Heat Insulating Sleeve for e-STUDIO 2007 2306 2505 2507

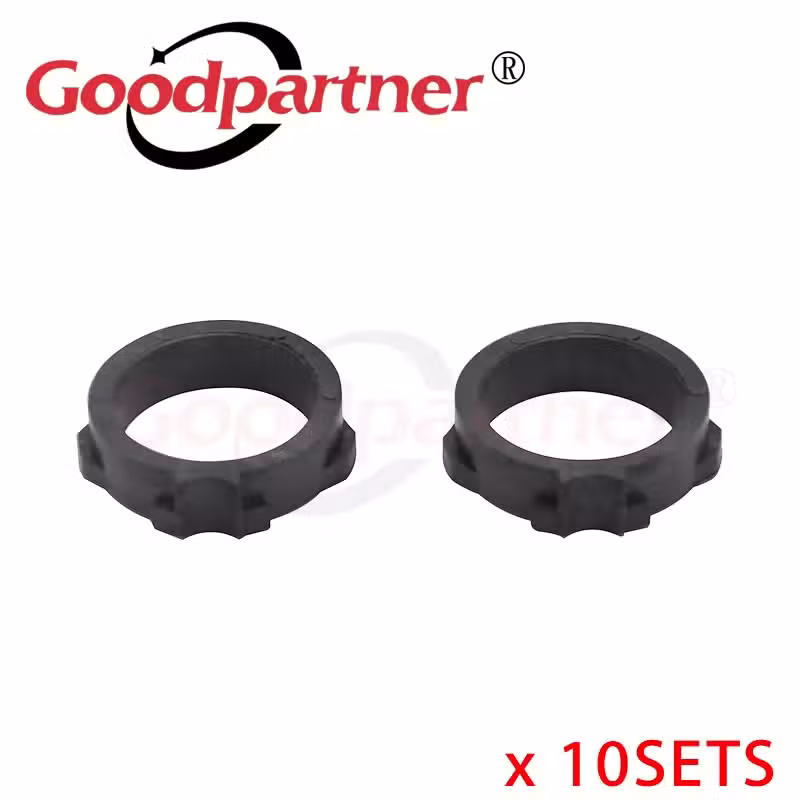

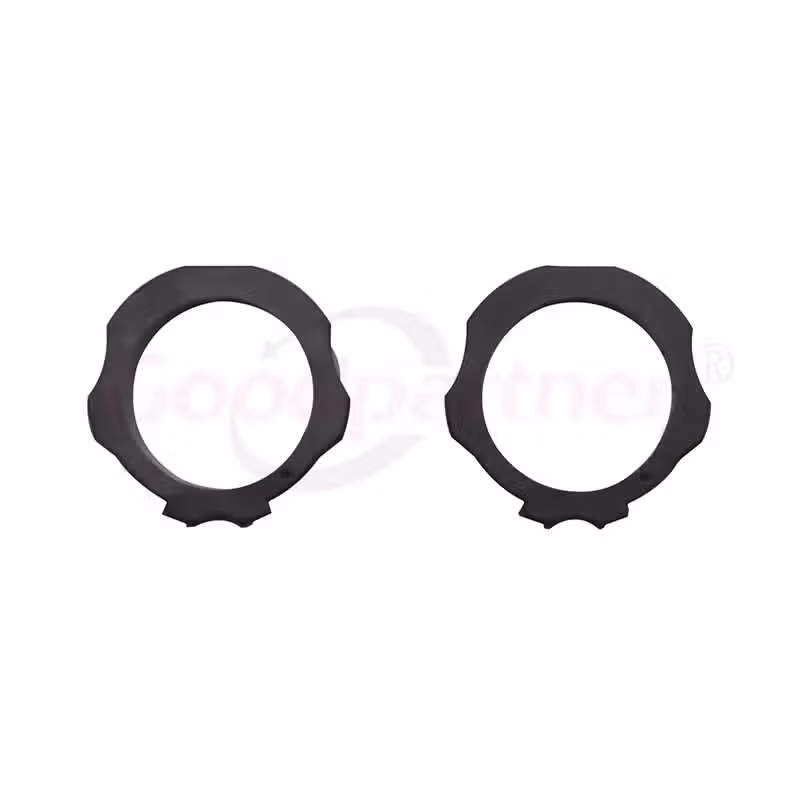

Upper Fuser Roller Insulation Sleeve

The Toshiba fuser roller bushing seats the upper heat roller in the e-STUDIO fuser unit and insulates the shaft from the frame. It holds the roller on centre through the fusing cycle. Each fuser takes two sleeves, one at either end of the roller.

The sleeve is a moulded heat-resistant polymer with a low-friction bore. It carries the roller at fusing temperature without seizing on the shaft. Toshiba rates the part at 165,000 pages, and the fuser uses two per unit.

Compatible chassis include e-STUDIO 2006, 2007, 2306, 2307, 2309A, 2323AM, 2329A, 2505H, 2505F, 2506, 2507 and 2802. Replace both sleeves when the roller develops play or the fuser starts to squeal. No calibration is required after fitting.

Key Features

• Heat Insulating Sleeve
  The sleeve isolates the upper heat roller shaft from the fuser frame at operating temperature.

• 165,000-Page Service Life
  Toshiba rates the bushing at 165,000 pages under the standard fuser duty cycle.

• Two Per Fuser

  • One sleeve at each end of the upper heat roller
  • Sold as a single bushing
  • Replace both at the same service
  • Matches the original bore and shoulder dimensions

• Low-Friction Polymer Bore
  The bore lets the roller turn without binding as the fuser heats and cools.

• Direct Replacement Fit
  The part seats on the roller shaft and fuser frame without adapters or machining.

• Wide e-STUDIO Coverage
  The same bushing fits 2006, 2007, 2306, 2307, 2309A, 2323AM, 2329A, 2505H, 2505F, 2506, 2507 and 2802 series machines.

• No Calibration Step
  The fuser returns to service after reassembly without a setup routine.

Specifications

What’s in the Box

• One fuser roller bushing

Why Choose This Fuser Bushing

• The insulating sleeve restores roller alignment and stops shaft play in the fuser frame.

• A worn bushing causes squeal and uneven fusing; replacement clears both symptoms.

• The 165,000-page rating matches the fuser service interval on supported chassis.

• One part number covers twelve e-STUDIO models, which simplifies spare stock.

• The moulded bore matches the original shaft clearance without reaming.

• Installation follows the standard fuser strip-down procedure with no calibration step.
