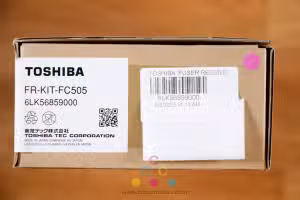

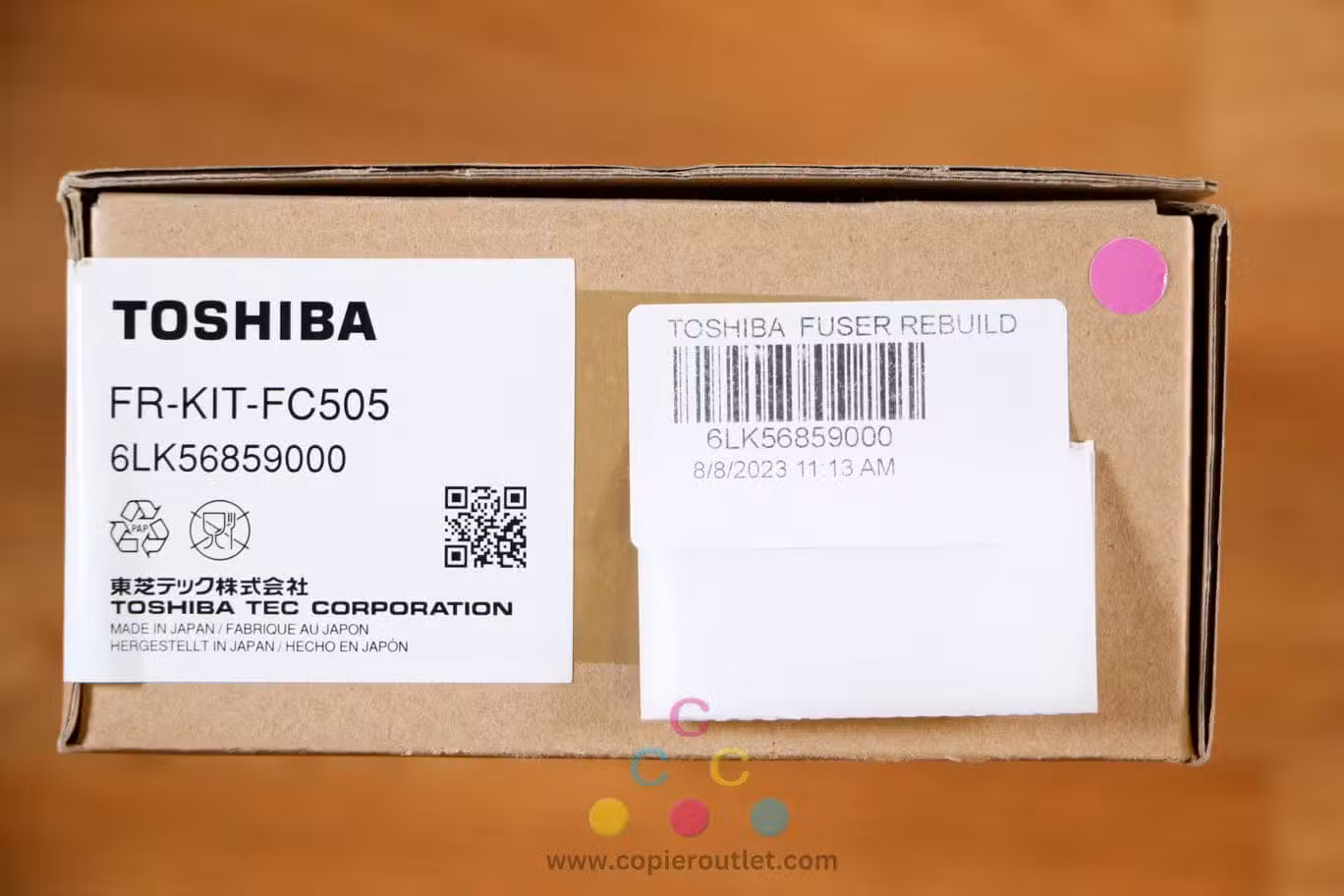

Toshiba FR-KIT-FC505 Fuser Maintenance Kit 6LK56859000 200,000 Pages for e-STUDIO

Rebuild Kit for the Colour Fusing Assembly

The Toshiba FR-KIT-FC505 fuser kit is a preventive maintenance kit for Toshiba e-STUDIO colour multifunction printers. Toshiba lists the kit as 6LK56859000 and rates it at approximately 200,000 pages. The package rebuilds the fusing assembly instead of replacing the whole unit.

The carton holds one lower pressure roller, one fuser belt, one fuser belt pad, two separation fingers, one fuser belt lubrication sheet, one OIL96H bottle, two front fuser oil syringes and one rear fuser oil syringe. These parts restore the nip pressure and release behaviour that wear degrades across a long service interval.

Fitment covers the e-STUDIO 2505AC, 3005AC, 3505AC, 2515AC, 3015AC and 3515AC. The higher-volume 4505AC, 4515AC, 5005AC and 5015AC chassis use a different kit code, so check the model plate before ordering. Toshiba documents the rebuild sequence in the model service manual.

Technicians strip the fuser unit, fit the new belt over the rebuilt roller set, apply the supplied oils and lubrication sheet, then refit the separation fingers. The job needs a torque driver, lint-free gloves and a clean bench. Contaminated belt surfaces cause toner offset and repeat marks, so handle the belt by its edges only.

Key Features

• Complete Fuser Rebuild Contents
  The kit supplies the pressure roller, belt, pad, fingers and oils needed for one full fuser rebuild.

• Rated Service Interval

  • Approximately 200,000 pages per kit
  • Yield measured at 5 percent coverage on A4
  • Matches the scheduled fuser maintenance point

• Coated Fuser Belt
  A replacement belt restores the low-friction release surface that fused toner depends on.

• Lower Pressure Roller
  A new pressure roller rebuilds the nip and removes the flat spots that cause uneven gloss.

• Separation Fingers and Pad
  Two separation fingers and a belt pad stop sheets from wrapping the hot roller at the exit.

• Lubrication Pack

  • One fuser belt lubrication sheet
  • One OIL96H bottle
  • Two front and one rear fuser oil syringes

• Model Coverage
  The kit fits the e-STUDIO 2505AC, 3005AC, 3505AC, 2515AC, 3015AC and 3515AC chassis.

Specifications

What’s in the Box

• Lower pressure roller

• Fuser belt

• Fuser belt pad

• Two separation fingers

• Fuser belt lubrication sheet

• OIL96H bottle

• Two front fuser oil syringes

• One rear fuser oil syringe

Why Choose the FR-KIT-FC505

• A rebuild kit costs far less than a complete fusing unit on high-volume colour fleets.

• The 200,000-page rating aligns with the scheduled maintenance point on workgroup copiers.

• Belt, pad and oils ship together, so technicians run one callout instead of three.

• Fresh separation fingers remove the sheet wrap that scores the roller surface.

• Genuine Toshiba consumables keep nip pressure and release behaviour within design tolerance.
