Toshiba DEV-KIT-5008A Maintenance Kit – 6LK72105000 Drum and Developer PM Set, 80,000 Pages

Periodical PM Bundle for e-STUDIO Mono Copiers

The Toshiba DEV-KIT-5008A groups the wear components consumed during a scheduled maintenance visit on e-STUDIO 2008A through 5008A copiers. Toshiba rates the set at roughly 80,000 pages. Technicians replace the whole bundle in one pass instead of ordering each part separately.

The kit contains one drum cleaning blade, one recovery blade, and three drum separation fingers. A main charger grid, two needle electrodes, and one transfer roller complete the set. A developer charge ships alongside the mechanical parts. Each item carries the position index printed in the service manual, so fitters match parts to the exploded diagram without guesswork.

Compatible chassis cover the e-STUDIO 2008A, 2508A, 3008A, 3508A, 4508A and 5008A, plus the 2018A to 5018A variants. The sealed pack measures 16.5 x 46 x 9 cm at 1.3 kg gross and 0.14 kg net. Store the pack flat, away from direct sun, until the PM call.

Key Features

• 80,000-Page Service Interval
  Toshiba sets the PM cycle at roughly 80,000 pages on the 5008A platform.

• Six-Part Mechanical Set

  • One drum cleaning blade and one recovery blade.
  • Three drum separation fingers.

• Charging Hardware Included
  A main charger grid and two needle electrodes restore corona output after rebuild.

• Transfer Roller Included
  The replacement roller maintains transfer efficiency across the drum surface.

• Position-Indexed Parts
  Every component maps to the position index in the service manual.

• Sealed Single Pack
  One carton holds the full set for a single maintenance call.

Specifications

What’s in the Box

• Drum cleaning blade x1

• Recovery blade x1

• Drum separation finger x3

• Main charger grid x1

• Needle electrode x2

• Transfer roller x1

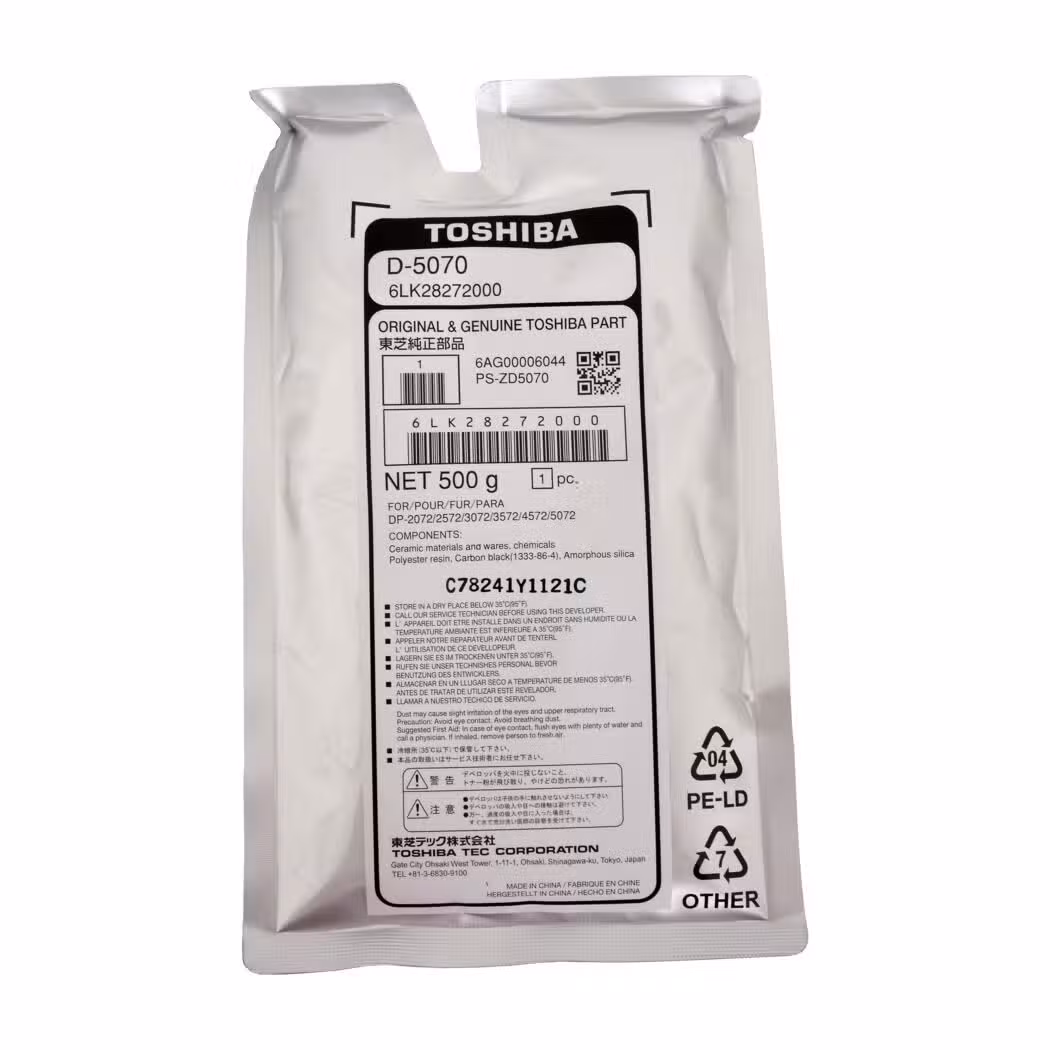

• Developer charge x1

Why Choose This PM Kit

• The periodical maintenance kit supplies every wear part for one service visit.

• A single drum PM kit removes the need to raise six separate part numbers.

• The developer maintenance kit keeps the imaging station inside Toshiba’s wear limits.

• One part number covers twelve e-STUDIO models, which simplifies fleet spares holding.

• Sealed packaging protects the blades and charger grid from dust before fitting.

• Position indices printed in the manual match the parts in the carton.
