Toshiba FR-KIT-5008A Fuser Maintenance Kit 6LK72103100 – 250,000 Pages for e-STUDIO 2505AC 3005AC 4505AC 5005AC

Fuser Rebuild Set for e-STUDIO Copiers

The Toshiba FR-KIT-5008A fuser maintenance kit 6LK72103100 restores the fusing unit on e-STUDIO 2505AC, 3005AC, 4505AC and 5005AC copiers. It ships as a complete rebuild set rated for 250,000 pages. The kit covers the heat rollers, picker fingers and ozone filter in one package.

The set includes an upper heat roller, a lower heat roller, five upper fuser picker fingers and one ozone filter. The heat rollers carry a release coating that resists toner offset at fusing temperature. Picker fingers separate the sheet from the roller surface after each pass. The ozone filter traps gas from the charging process before it leaves the fuser housing.

Compatible chassis also include e-STUDIO 3508A, 3518A, 4518A and 5018A models. Technicians replace the worn fuser components rather than swapping the whole fuser unit. The procedure follows the standard fuser strip-down sequence in the service manual. No firmware update or calibration step follows reassembly.

Key Features

• Complete Fuser Rebuild Set
  The kit bundles both heat rollers, five picker fingers and an ozone filter in one package.

• 250,000-Page Rating
  The assembly carries a rated service life of 250,000 pages under standard fusing conditions.

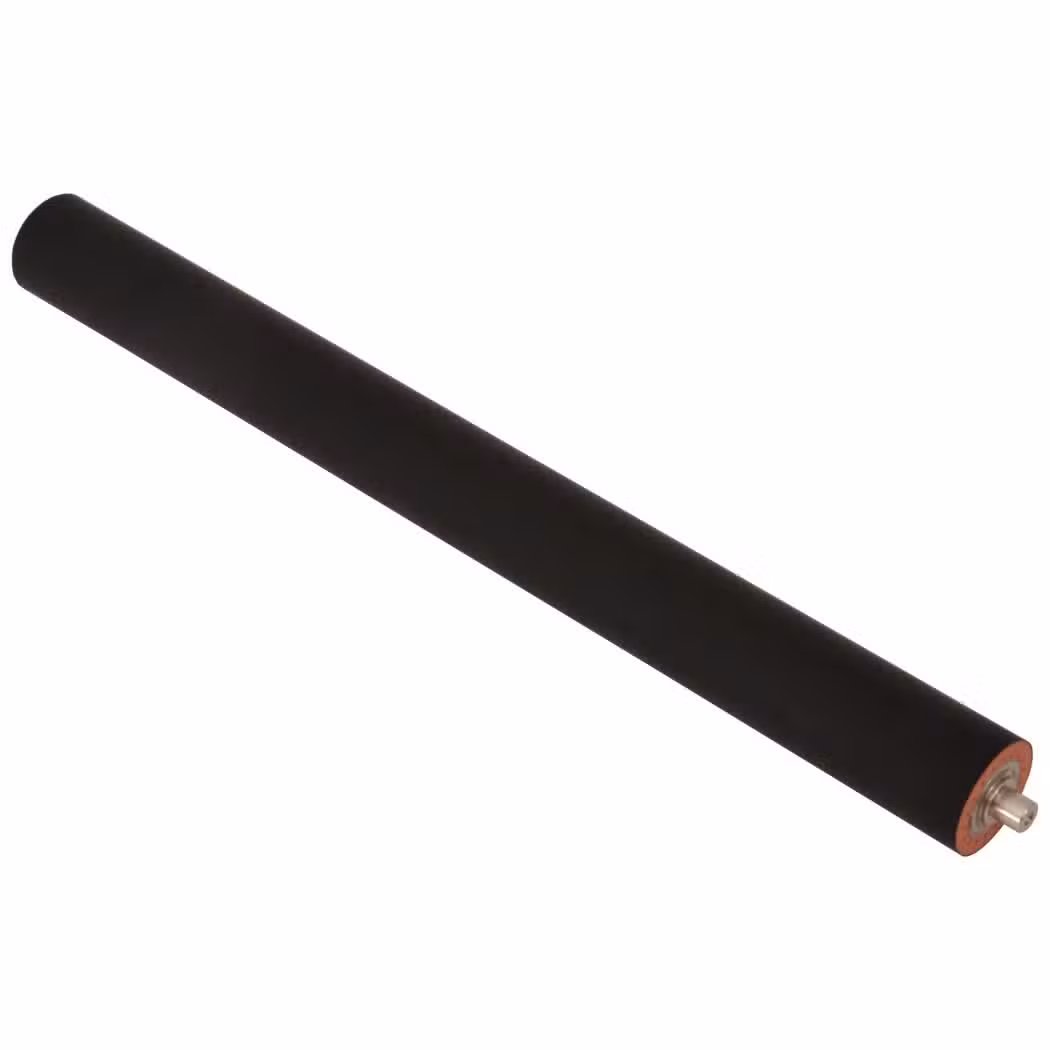

• Upper and Lower Heat Rollers
  Both rollers match the original coating and diameter for consistent release and nip pressure.

• Five Upper Picker Fingers

  • Part 6LE58405000, quantity five per kit
  • Strip the sheet from the roller after fusing
  • Prevent wrap jams at the fuser exit
  • Match the original finger profile

• Ozone Filter Included
  Filter 6LJ15609000 traps charging by-product before it leaves the fuser housing.

• Wide e-STUDIO Coverage
  The kit fits 2505AC, 3005AC, 4505AC, 5005AC, 3508A, 3518A, 4518A and 5018A chassis.

• Preventive Maintenance Part
  The kit supports scheduled fuser rebuilds in high-volume print rooms and copy centres.

Specifications

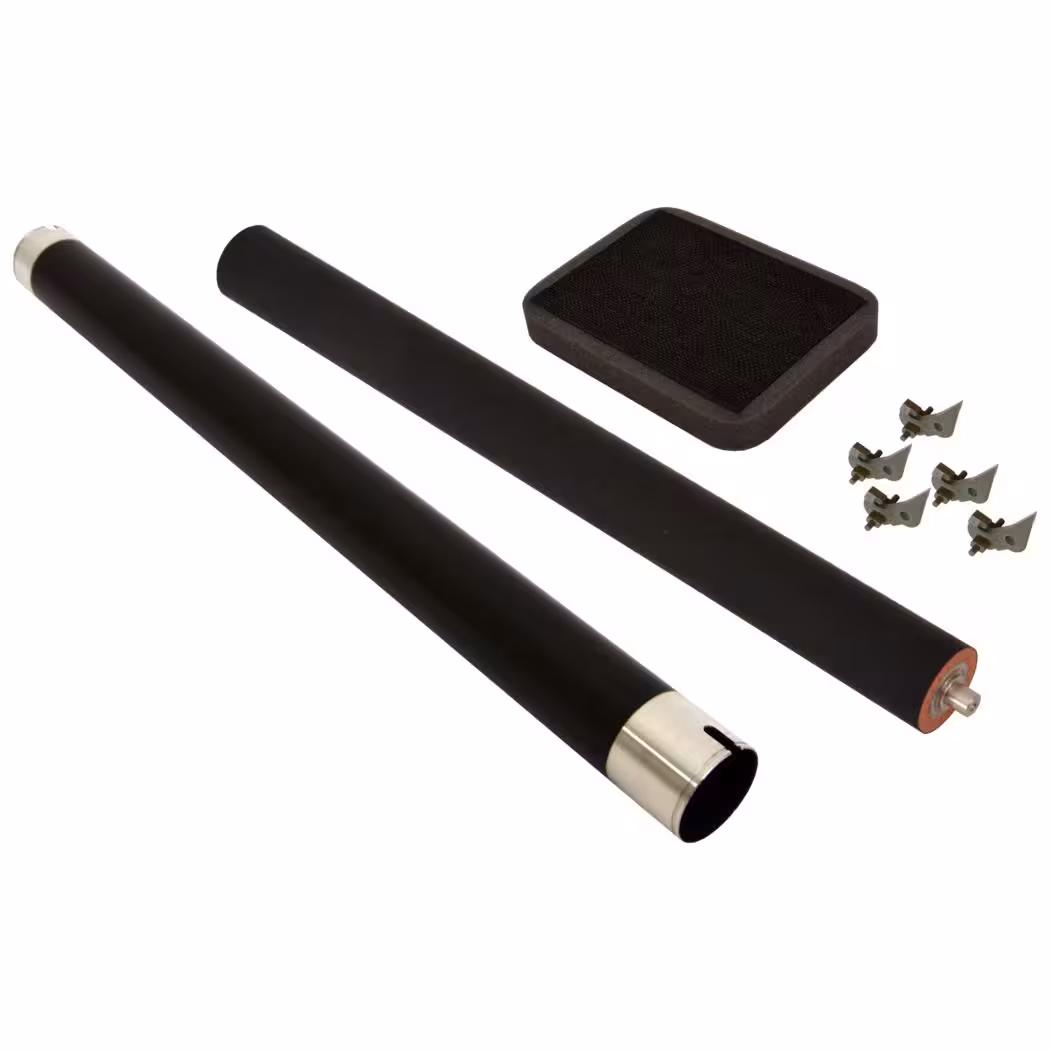

What’s in the Box

• Upper heat roller 6LK72100000

• Lower heat roller 6LK72102000

• 5 x upper fuser picker finger 6LE58405000

• Ozone filter 6LJ15609000

Why Choose This Fuser Kit

• One package supplies every wear part needed for a full fuser rebuild.

• The 250,000-page rating matches the preventive maintenance interval on supported chassis.

• Coated rollers resist toner offset and extend service life between rebuilds.

• The included ozone filter keeps the fuser housing within environmental limits.

• Picker fingers clear wrap jams at the fuser exit without roller damage.

• The kit covers eight e-STUDIO models, which simplifies spare-parts stock.
