Toshiba EPU-FC330-M Process Unit Magenta for e-STUDIO 330AC 400AC

Magenta Electrographic Processing Assembly

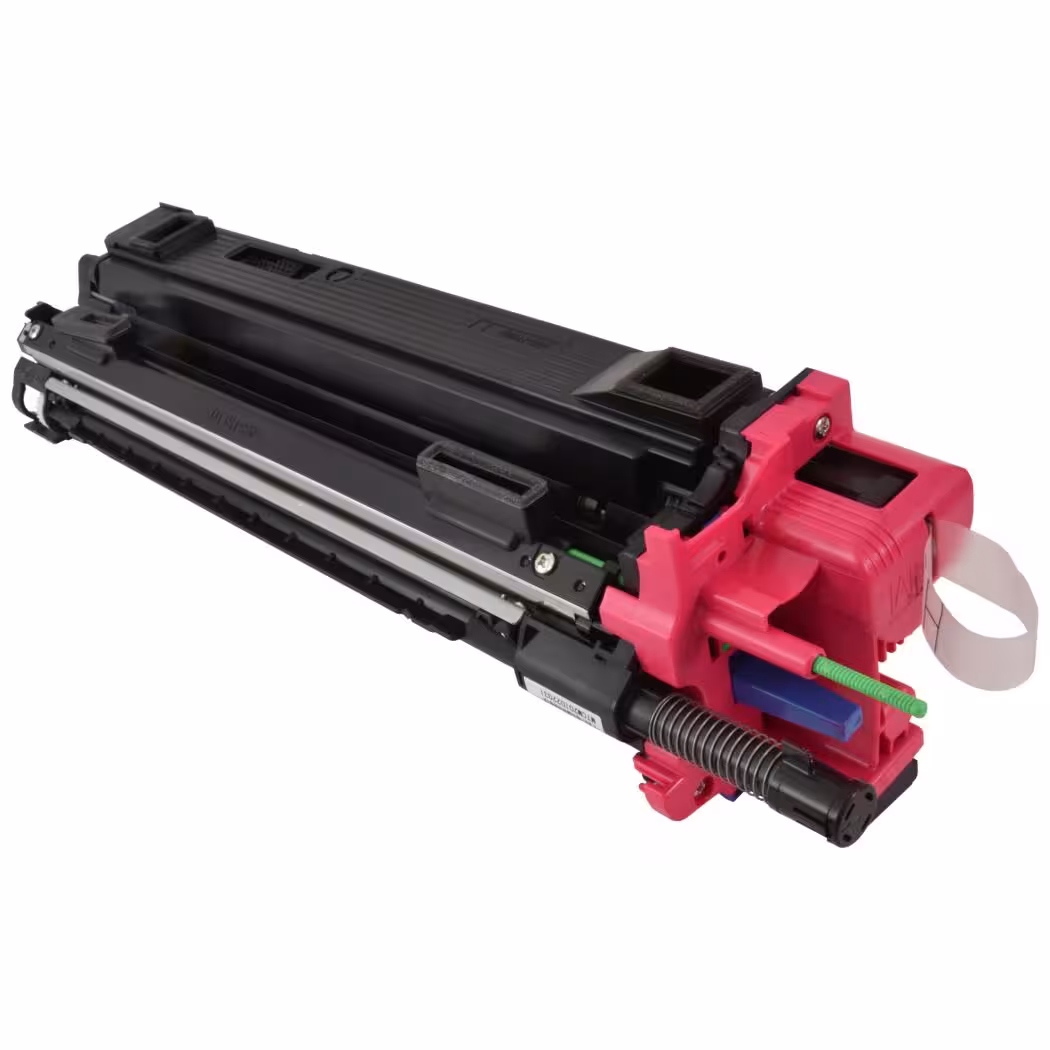

The Toshiba EPU-FC330-M process unit is the magenta imaging module for e-STUDIO 330AC and 400AC colour machines. It combines the drum cleaner and developer section in one replaceable assembly. Part number 6LL15845100 identifies the magenta variant.

The housing carries the OPC drum, charge roller and developer unit together. Toshiba groups these wear parts because drum life and developer life track each other in the colour imaging path. Replacing the module resets all three at once.

Fit the assembly after removing the front cover and releasing the process unit latch. The rear connector seats on the frame, and the machine reads the colour key automatically. The magenta module occupies the second station of the imaging path.

Key Features

• Unified Drum and Developer Module
  The assembly combines the drum cleaner unit and developer unit in a single housing for one replacement step.

• Magenta Colour Keying
  The 6LL15845100 part number maps to the magenta station, and the machine reads the colour key on insertion.

• Wear Part Synchronisation

  • The drum, charge roller and developer wear together in the colour path.
  • Replacing the module resets all three components at the same time.

• e-STUDIO 330AC and 400AC Fit
  The unit seats in the imaging path of the FC-330AC and FC-400AC chassis without modification.

• Rear Frame Connector
  The module plugs into the rear frame connector, which carries the bias and drive signals.

• Latch Release Access
  A front latch releases the unit, so technicians remove it without stripping the imaging section.

• Colour Station Identification
  The magenta housing and label distinguish the unit from the cyan, yellow and black modules.

Specifications

What’s in the Box

• One 6LL15845100 magenta process unit

Why Choose This Toshiba Imaging Module

• The drum and developer assembly replaces both wear sections in one service action.

• The 6LL15845100 number matches the Toshiba service catalogue for direct ordering.

• Colour keying prevents wrong-station fitting during multi-unit maintenance.

• The rear connector carries bias and drive without separate harness work.

• A front latch release cuts imaging section strip-down time.

• The module fits both the 330AC and 400AC chassis, which simplifies spare-parts stock.
