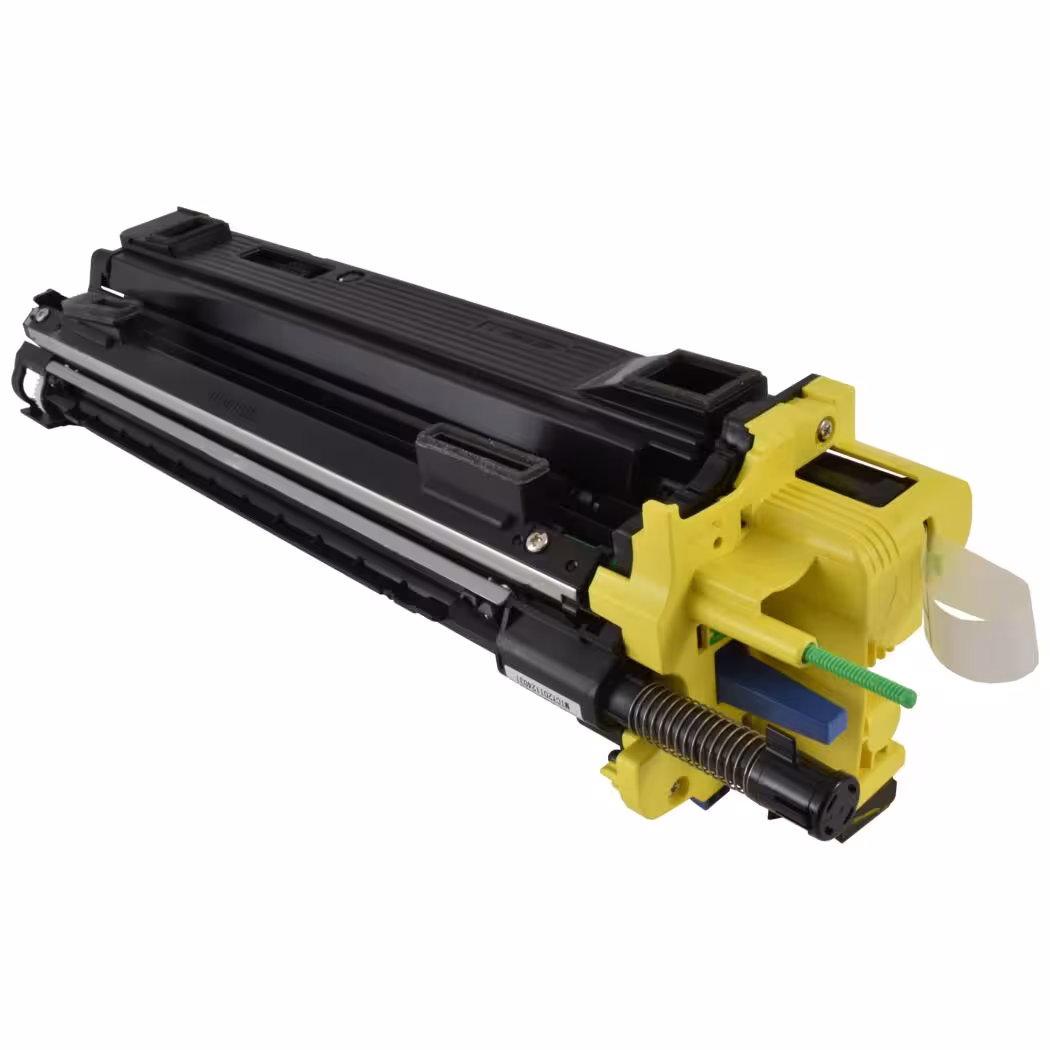

Toshiba FC330-Y Yellow Process Unit 6LL15845000 75,000 Pages

Colour Photoconductor Assembly for e-STUDIO MFPs

The Toshiba FC330-Y process unit is a genuine yellow imaging assembly for select e-STUDIO colour multifunction printers. It carries part number 6LL15845000 and the alternate reference 6AG00009260. Each unit rates 75,000 pages at 5% coverage and ships with developer installed.

The assembly combines the photoconductive drum, developer station, and charging hardware in one cartridge. Replacing the complete unit avoids separate drum and developer swaps. The yellow station sits alongside the cyan, magenta, and black process units in the imaging carriage.

Installation requires opening the front cover and releasing the colour unit latch. Slide the old assembly out along its rails and seat the replacement until it clicks. The printer reads a fresh consumable counter and resets the yellow imaging life value. Run a colour registration test after fitting to confirm alignment across all four stations.

Store the sealed unit away from direct sunlight and high humidity. The photoconductor layer degrades with light exposure, so keep the protective shutter closed until installation. Handle the assembly by its frame and avoid touching the drum surface. Dust or fingerprints on the drum show up as repeat defects on yellow output.

Key Features

• 75,000-page imaging yield
  The rated life covers 75,000 pages at 5% coverage on A4 media.

• Genuine Toshiba assembly
  The OEM unit holds factory drum and developer specifications for the FC330 engine.

• Developer included
  The assembly ships with developer loaded, so no separate fill step is needed.

• Model coverage

  • e-STUDIO 330AC and 331AC
  • e-STUDIO 400AC and 401AC

• Integrated imaging station
  Drum, charger, and developer sit in one cartridge for single-step replacement.

• Colour station identification
  The yellow housing and latch keying prevent fitting into another colour slot.

Specifications

What’s in the Box

• One yellow process unit, part 6LL15845000

Why Choose This Yellow Imaging Assembly

• The OEM drum and developer maintain colour balance against the other three stations.

• A single cartridge swap removes the need to service drum and developer separately.

• The 75,000-page rating reduces intervention frequency on departmental print fleets.

• Latch keying prevents wrong-colour installation during field service.

• Sealed packaging protects the photoconductor from light and dust before use.
