Toshiba THMS-HTR-H413 Thermistor Fuser Sensor 6LK72411000

Fuser Temperature Feedback Sensor

The Toshiba THMS-HTR-H413 thermistor is an NTC temperature sensor for the fuser roller on Toshiba e-STUDIO monochrome multifunction printers. It reports roller surface temperature to the engine controller. The controller uses that feedback to switch the heating lamp and hold the fusing window.

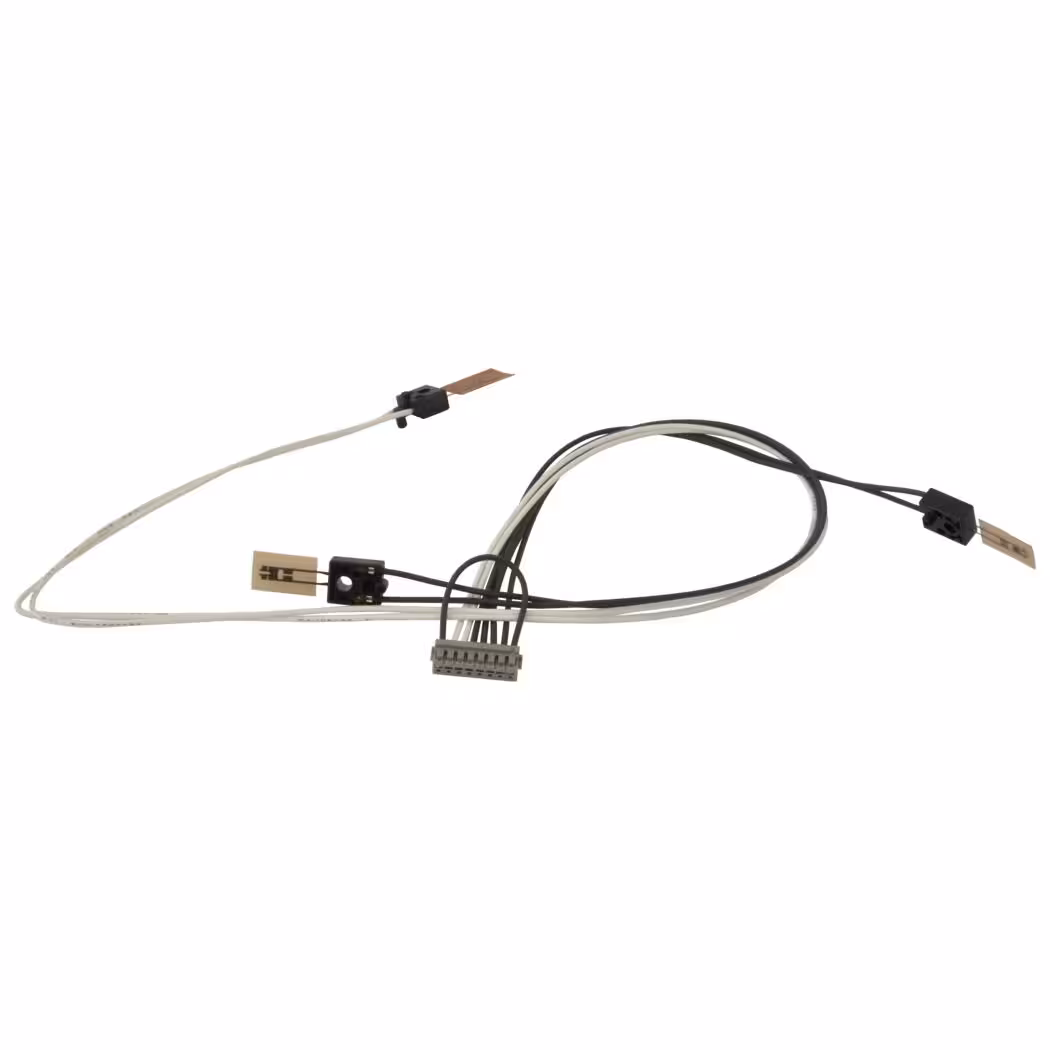

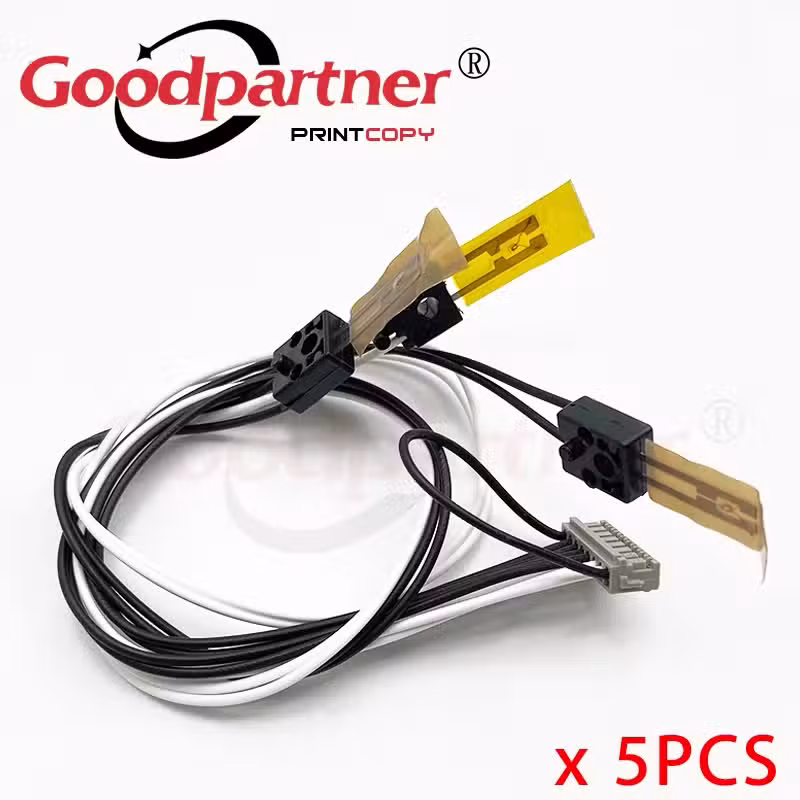

The sensor uses an NTC bead with a negative temperature coefficient. Resistance falls as roller temperature rises. A keyed harness plug connects the sensor to the engine board. The sensing bead sits on a spring-loaded bracket that presses it against the roller surface. Operating range spans roughly 0 °C to 220 °C.

The part fits e-STUDIO 2008A, 2508A, 3008A, 3508A, 4508A and 5008A models. It also serves the 2018A, 2518A, 3018A, 3518A, 4518A and 5018A variants, plus the 3008AG and 3508AG builds. A drifted sensor produces C4 fuser codes, cold offset and loose toner. Replace the sensor and run a fuser calibration from service mode.

Key Features

• NTC Thermistor Element
  The bead changes resistance with roller temperature and feeds an analogue signal to the engine board.

• Spring-Loaded Bracket
  The bracket holds the sensing bead against the roller surface under constant spring tension.

• Keyed Harness Connector
  The plug seats in one orientation and locks into the original engine harness.

• Closed-Loop Temperature Control
  The controller reads the sensor and cycles the heater lamp to hold fusing setpoint.

• Fuser Fault Resolution
  Replacing a drifted sensor clears recurring C4 service codes and restores stable warm-up.

• Monochrome e-STUDIO Fitment
  The part covers the 2008A through 5008A range and the 2018A through 5018A range.

• OEM Resistance Curve
  The thermistor tracks the resistance profile expected by Toshiba engine firmware.

• Single-Unit Packaging
  The sensor ships as one OEM part for spare-parts stock replenishment.

Specifications

What’s in the Box

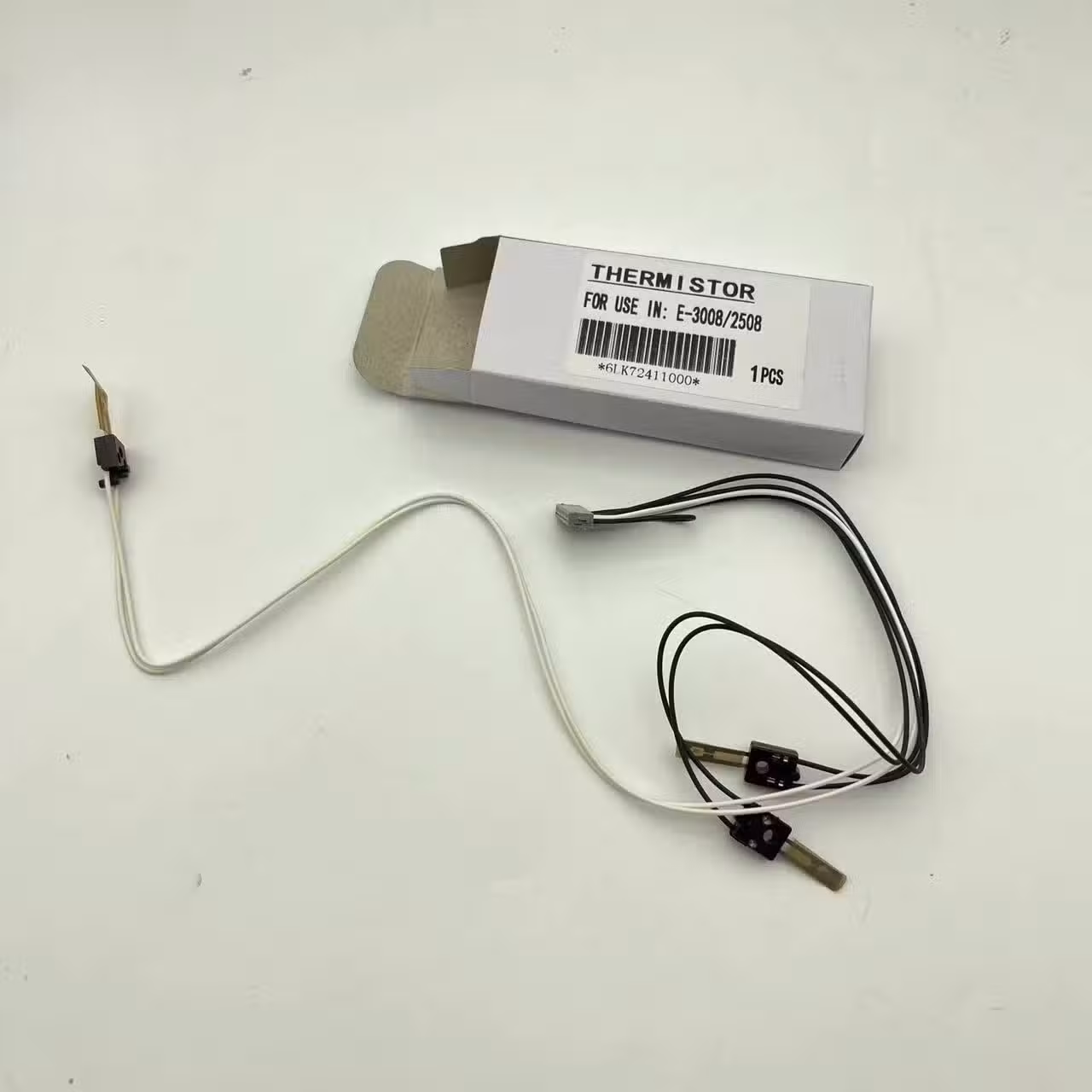

• One Toshiba 6LK72411000 fuser thermistor

Why Choose This Fuser Sensor

• The OEM resistance profile matches Toshiba engine firmware and avoids calibration drift.

• A fresh bead restores accurate roller temperature feedback after thermal aging.

• The sensor resolves C4 fault paths caused by failed temperature sensing.

• The spring bracket keeps consistent contact with the roller through thermal cycling.

• Single-unit packaging simplifies spare-parts stock for mixed e-STUDIO fleets.
