Toshiba 6LJ76812000 Gear 08S24-08S21 Developer Drive e-STUDIO

Drive Pinion for Mono e-STUDIO Copiers

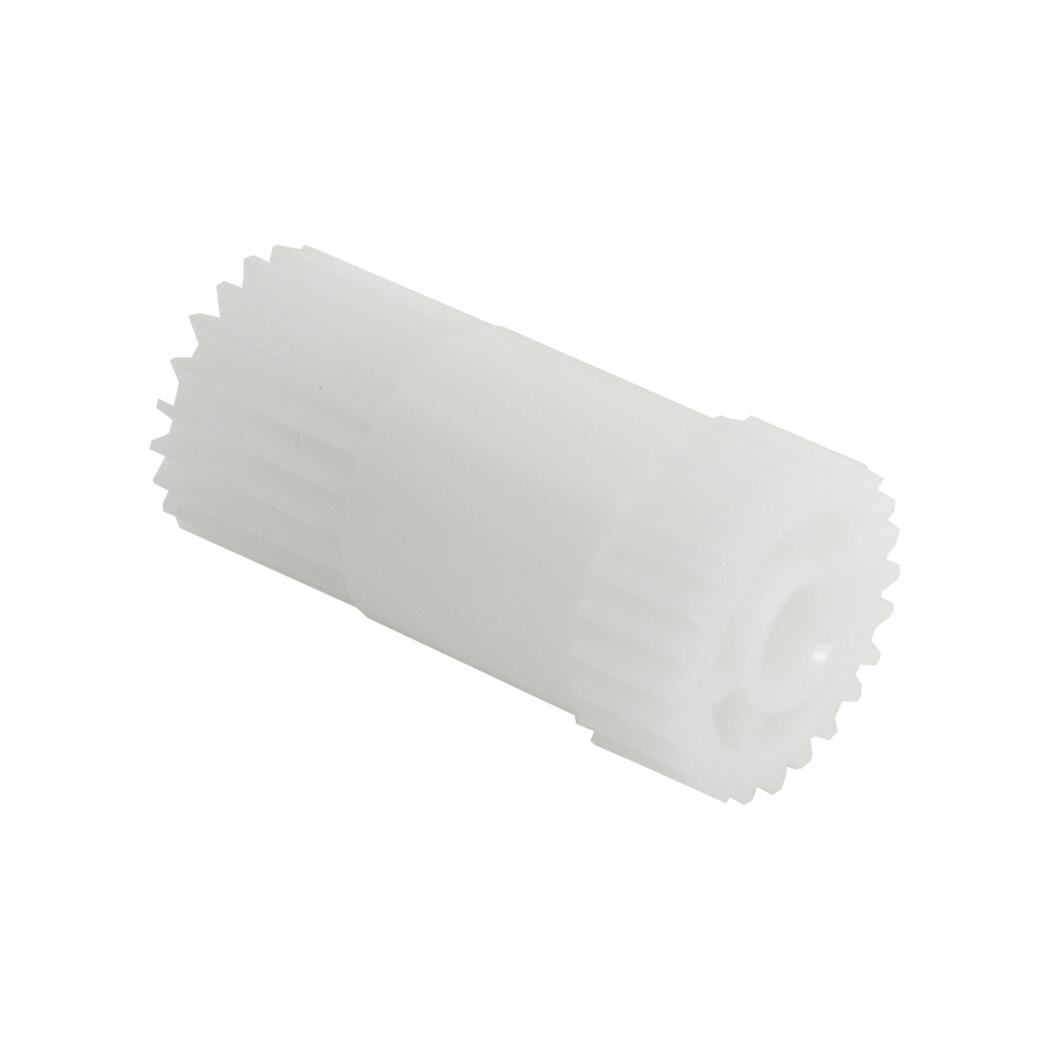

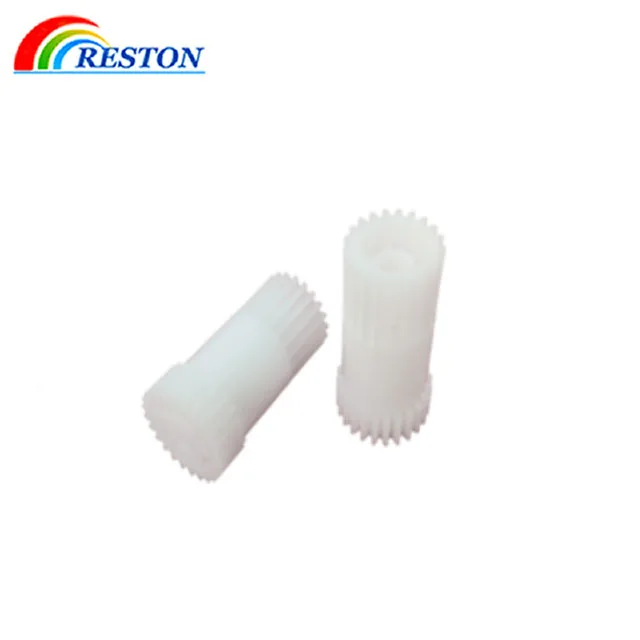

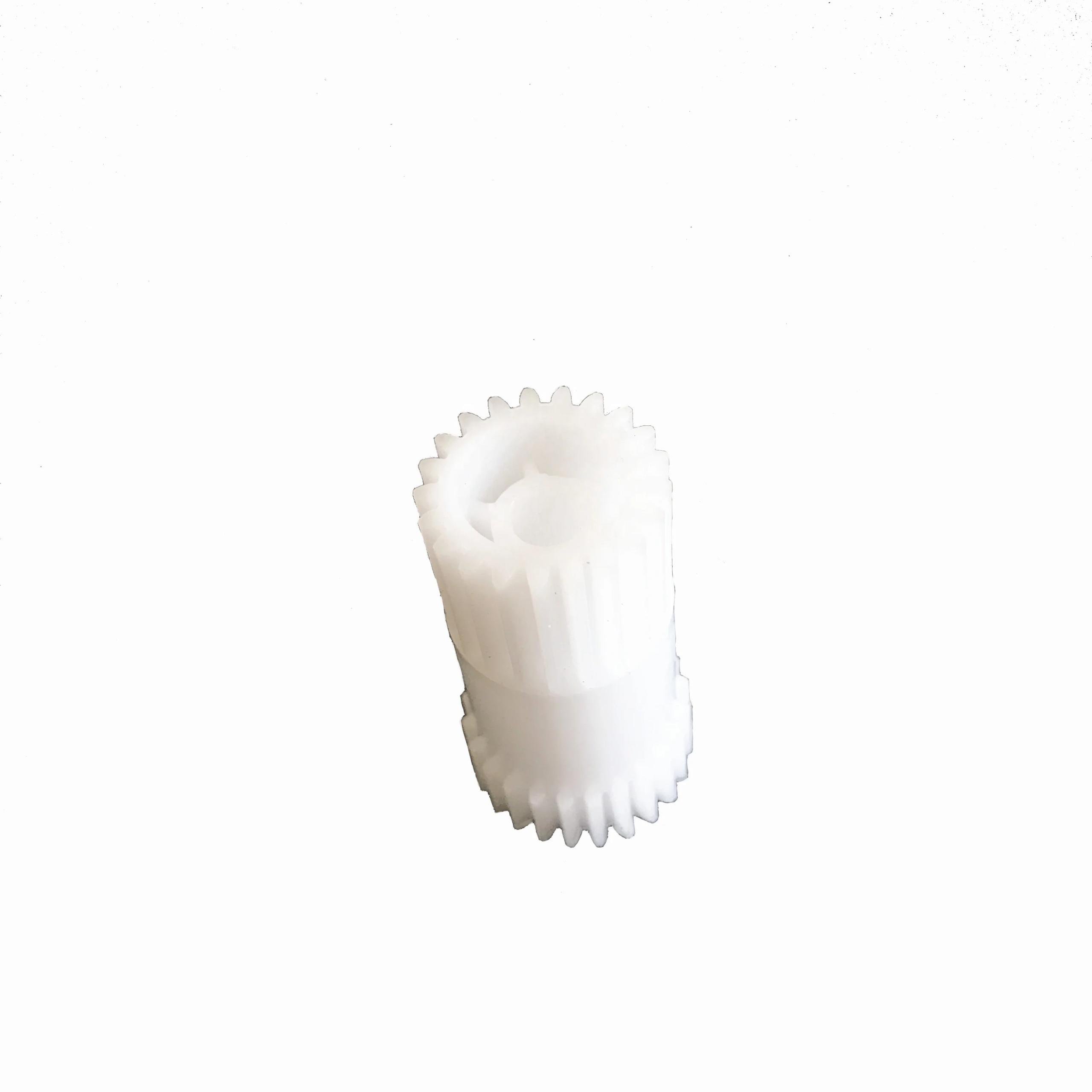

The Toshiba 6LJ76812000 gear is the drive pinion listed as GEAR-08S24-08S21 in the Toshiba e-STUDIO parts catalog. It transfers rotation from the main drive motor to the developer unit. A stripped or worn pinion produces drive error codes and uneven copy density.

The component uses moulded engineering plastic with a machined bore. Tooth count and module follow the original 08S24-08S21 profile, so it meshes with the existing drive train. The part weighs under 30 g and ships as a single unit.

Compatible engines include the e-STUDIO 2006, 2007, 2303, 2306, 2307, 2309, 2309A, 2323, 2328, 2329, 2505, 2505F, 2505H, 2506, 2507, 2523, 2802, and 2809A. Technicians replace it during developer drive overhaul or when the drive train emits a rhythmic clicking noise.

Key Features

• Original Toshiba Drive Pinion
  The gear carries Toshiba part number 6LJ76812000 and the 08S24-08S21 description.

• Developer Drive Interface
  It couples the main drive motor to the developer unit input shaft.

• Moulded Engineering Plastic
  The tooth form resists wear under continuous rotational load.

• Exact Tooth Profile
  The 08S24-08S21 module matches the factory gear so no shimming is needed.

• Broad Engine Coverage

  • Entry models from the 2006 through 2309A.
  • Mid-range 2505F, 2505H, and 2507 units.
  • High-volume 2802 and 2809A engines.

• Low Mass Construction
  The pinion weighs under 30 g and adds minimal inertia to the drive train.

• Single-Unit Packaging
  Each gear ships individually for straightforward spare-parts handling.

Specifications

What’s in the Box

• Drive gear, part 6LJ76812000

Why Choose This Drive Gear

• The pinion restores drive continuity when the developer unit stops turning.

• A factory tooth profile removes the risk of mismatch with the existing gear train.

• One part number covers eighteen e-STUDIO engine variants, which trims spares stock.

• Replacing the gear costs far less than swapping the complete drive assembly.

• The light moulded body limits load on the main drive motor.

• Single-unit packaging suits field service kits and workshop inventory.
