Siemon Z-MAX 48 Port Cat6A Shielded Patch Panel Z6AS-PNL-U48K 1U Black
Original price was: KSh 87,100.00.KSh 72,000.00Current price is: KSh 72,000.00. ex VAT
Siemon Z-MAX 48 Port Cat6A Shielded Patch Panel Z6AS-PNL-U48K 1U Black
| Model | Z6AS-PNL-U48K |
| Port count | 48 |
| Rack units | 1U |
| Panel style | Flat |
| Shielding | Shielded twisted pair (STP) |
| Category | Category 6A / Class EA |
| Front connectors | 48 x RJ-45 female |
| Rear termination | 48 x 110-punch |
| Dimensions | 482.6 x 109.2 x 44.2 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

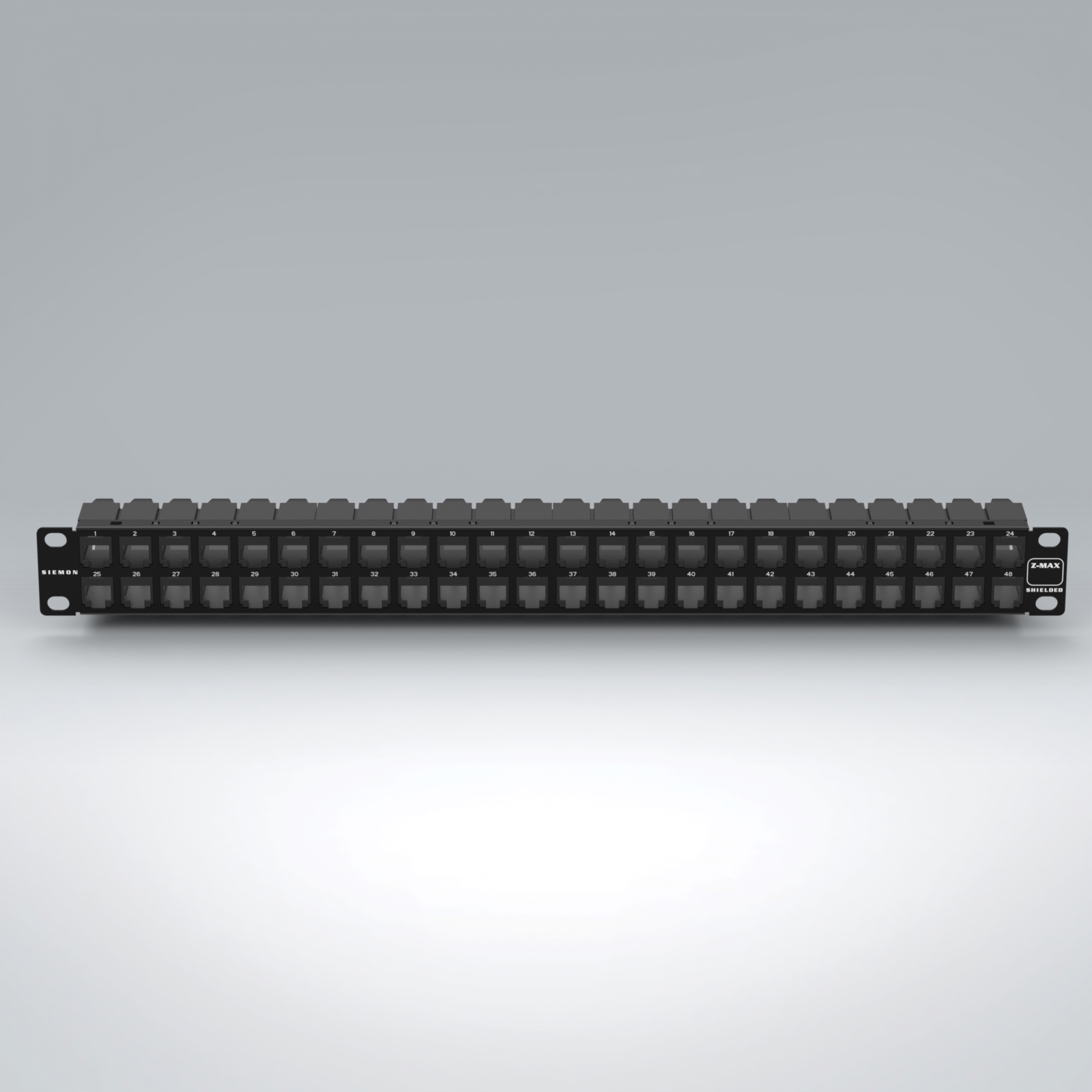

High-Density Shielded Copper Termination Panel
The Siemon Z-MAX 48 port panel terminates 48 shielded twisted-pair runs in a single 1U rack space. It ships loaded with Z-MAX 6A shielded outlets and a fixed rear cable manager. The flat 19-inch panel carries a black powder-coat finish on high-strength steel.
Each front position uses an 8p8c RJ-45 jack, and each rear position uses a single 110-punch termination. The outlets snap into the panel and ground automatically through embedded conductive strips. A quick-release lever removes any individual module without disturbing adjacent terminations.
The panel measures 482.6 mm wide, 109.2 mm deep and 44.2 mm high, which fits a standard 19-inch rack rail. It operates from -10°C to 60°C. A one- or two-hole ground lug ties the chassis to the site grounding system. The kit includes a Z-MAX termination tool and cable ties.
Key Features
48 Shielded Cat6A Ports in 1U
The panel delivers 48 shielded channels across 1 rack unit, which doubles the port count of a 24-port layout.Z-MAX 6A Shielded Outlets
Each loaded module supports 10GBASE-T and meets Category 6A alien crosstalk limits at high density.Automatic Module Grounding
- Embedded conductive strips bond each outlet to the panel on insertion.
- No separate grounding wire runs between module and chassis.
- One- or two-hole ground lug connects the panel to the rack ground bar.
Quick-Snap Module Insertion
Outlets seat into the panel without screws, and the quick-release lever removes a single module in place.Magnifying Label Holders
Snap-on holders accept paper labels or Z-MAX icons, and bold port numbering speeds outlet identification.Fixed Rear Cable Manager
The rear manager routes and supports shielded cable pairs to preserve Cat6A bend-radius and separation rules.PoE and PoE+ Ready
The shielded design handles heat from IEEE 802.3af and 802.3at powered devices across all 48 ports.
Specifications
| Feature | Specification |
|---|---|
| Model | Z6AS-PNL-U48K |
| Product line | Z-MAX 6A Shielded |
| Port count | 48 |
| Rack units | 1U |
| Panel style | Flat |
| Shielding | Shielded twisted pair (STP) |
| Category | Category 6A / Class EA |
| Front connectors | 48 x RJ-45 female (8p8c) |
| Rear termination | 48 x 110-punch, 1 position each |
| Module type | Z-MAX 6A shielded outlets, loaded |
| Grounding | Embedded strips, automatic on module insertion |
| Ground lug | One- or two-hole connection to site ground |
| Rear cable manager | Fixed |
| Included tool | Z-MAX termination tool |
| Width | 482.6 mm (19 inch) |
| Depth | 109.2 mm (4.3 inch) |
| Height | 44.2 mm (1.74 inch) |
| Colour | Black |
| Material | High-strength steel |
| Operating temperature | -10°C to 60°C (14°F to 140°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Flammability rating | UL 94 V-0 |
| Standards | ANSI/TIA-568-C.2, ISO/IEC 11801 Ed 2.2, IEC 60603-7, IEC 60603-7-51, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, ANSI/TIA-1096-A |
| Compliance | RoHS, halogen-free, lead-free |
What’s in the Box
1 x 48-port shielded patch panel with loaded Z-MAX 6A outlets
Fixed rear cable manager
Z-MAX termination tool
Label holders and port identification labels
Cable ties
Mounting screws
Why Choose This Z-MAX Panel
Automatic module grounding removes a separate bonding step from every termination.
The shielded Cat6A design suppresses alien crosstalk where 48 ports share one 1U faceplate.
The quick-release lever lets technicians replace a single outlet without unseating neighbouring jacks.
The rear cable manager supports shielded pairs at the bend radius Cat6A requires.
PoE+ ratings suit access points, IP cameras and VoIP handsets fed from the same panel.
